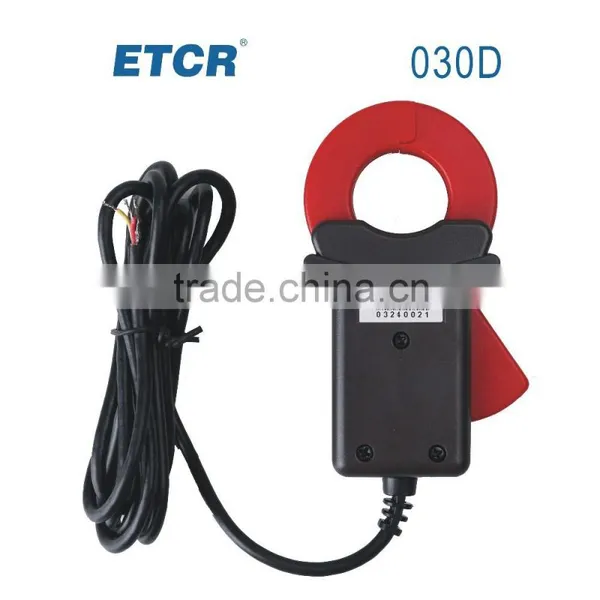

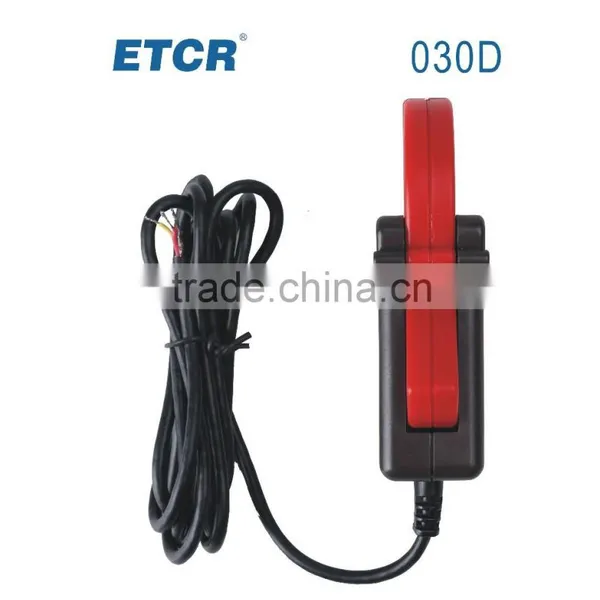

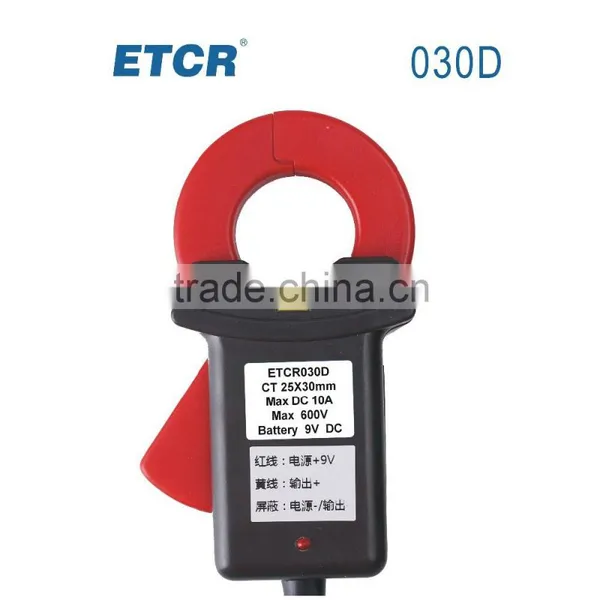

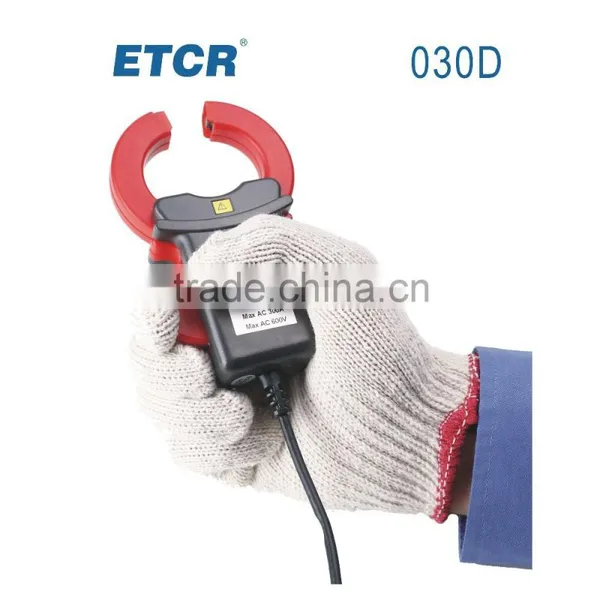

ETCR 030D Clamp DC Current Transducer(Magnetic Induced) Instrument Measurement
US$ 42.9 - 61.29
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ETCR
Model Number:
ETCR030D
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ETCR 030 High Accuracy Clamp AC Current Leakage Transducer Electrical InstrumentUS$ 33.87 - 48.39MOQ: 1 Piece -
ETCR9000B Wireless H/L Voltage Clamp Leakage Meter Electrical InstrumentUS$ 432.67 - 701.67MOQ: 1 Piece
-
ETCR080 Large Caliber High Accuracy Clamp Current Sensor Electrical InstrumentUS$ 110.83 - 158.33MOQ: 1 Piece
-
ETCR008 Sharp-nose Pliers Current Sensor Electrical InstrumentUS$ 22.67 - 32.5MOQ: 1 Piece
-
ETCR 007AD AC/DC Clamp Leakage Current Sensor Electrical InstrumentUS$ 44.33 - 63.33MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
ETCR
Model Number
ETCR030D
Usage
Consumption Sensor
Theory
Current Sensor
Output
Digital Sensor
Company Information
ETCR
A professional manufacturer of test and measure instrument.
We have our R&D department,top sales group,supply application services.
ETCR Help you work safer and quicker.
Product Description
Welcome to ETCR
Our buyers have stayed with us for 12 years
12 years of specialized meters
ISO Patent and CE certificate
OEM services available
More information, please kindly view our web site: /en/
Online store: /store/1119041
1. Introduction
ETCR030D Clamp DC Current Sensor use permalloy magnetic cores, with small size, high accuracy, good stability, strong anti-interference ability characteristics. It is applied with double shield technology, which insure strong anti-interference ability.
ETCR030D Clamp DC Current Sensor is widely applied in AC current leakage, current, power and energy measurement with high precision and small phase error of electricity, communications, meteorology, railway, oilfield, construction, measurement, scientific and research teaching unit, industrial and mining enterprises, which can be connected to a variety of high precision digital multi-meter and data recorder.
2. Technical Specifications
Function |
Measurement of DC current, DC leakage current |
Test mode |
Clamp CT |
Power Supply |
9V DC±1VDC |
Rated Power |
20mA max |
Clamp Size |
25mm×30mm |
Range |
0-100mA DC or 0-10A DC optional |
Resolution |
0.1mA DC or 10mA DC optional |
Accuracy |
±3.0%FS(23°C±2°C, below 70%RH, keep the wire be in the center of clamp) |
Coils Turn |
1: 800 |
Signal Output |
2.5mV/1mA (0-1A/0-2.5V) |
Output Interface |
Red wire: positive power input; Yellow wire: ground; White wire: positive signal output |
Output Wire Length |
2m |
Geomagnetic interference |
About 3mA |
Measured Wire Position |
Approximately in the geometric center of the clamp |
Line Voltage |
Under 600V DC measurement |
Dimension |
115mm×70mm×33mm |
Weight |
180g |
Working Environment |
-15°C-45°C; below 80%rh |
Storage Environment |
-10°C-60°C; below 70%rh |
Insulation Strength |
AC3700V/rms (between core and shell) |
Safety Rules |
IEC1010-1, IEC1010-2-032, Pollution degree 2, CAT Ⅲ(600V) |

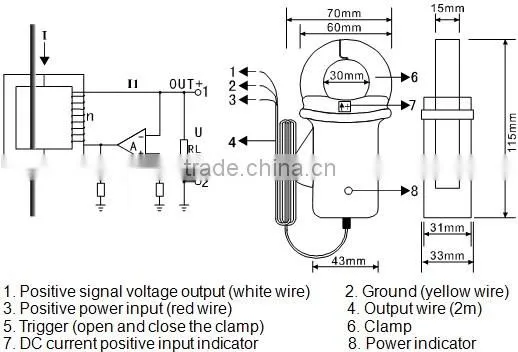

3. Structure drawing
