FDA Certify 650nm 20mw 5VDC Laser Line Projector for Stone/Metal/Woodworking, Fabric/Tire Processing Laser Alignment&Calibration
- 20000 Piece / Pieces per Month
- Xi'an Shaanxi China
- Credit Card PayPal
- FDA Certify 532nm 14mw Laser Line Projector for Stone/Metal/Wood Working, Fabric/Tire Processing Laser Alignment and Calibration
- FDA Certify 635nm 18mw 5VDC Laser Line Projector for Stone/Metal/Woodworking, Fabric/Tire Processing Laser Alignment&Calibration
- FDA Certify 635nm 3mw 5VDC Laser Line Projector for Stone/Metal/Woodworking, Fabric/Tire Processing Laser Alignment&Calibration
- FDA Certify 520nm 18mw Laser Line Projector for Stone/Metal/Wood Working, Fabric/Tire Processing Laser Alignment and Calibration
- FDA Certify 5mw-130mw Laser Line Projector, Woodworking Laser Alignment and Calibration System, Cutting-edge Alignment Solution
- FDA Certify 635nm 6mw 5VDC Laser Line Projector for Stone/Metal/Woodworking, Fabric/Tire Processing Laser Alignment&Calibration
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | ELITE | Model Number: | ELM650-60A 20mw Red Laser Line Projector |
Packaging Details
One unit packed with condensed foam, bulk into export cartons.
Product Description
FDA Certified ELM650-60A 660nm 20mw 5VDC Red Laser Line Projector for Machine Calibration, Industrial Alignment and Positioning, Woodworking Laser Alignment and Calibration System, Cutting-edge Alignment Solution, Laser Guideline, Laser Guidelight
1.Elite Red Laser Line Projector Introduction:
Laser line projector is a great tool for alignment and positioning of opposite sides, fixed points, and process routes.
Laser alignment system are used in the positioning and calibration of machines and machine tools to solve straightness, flatness, parallelism, squareness, and leveling issues by projecting a distinct red working line
or edges for alignment and positioning on materials where needs to be cut, folded, glued, welded or just positioned.
It can replace rulers, stops, measuring aids or templates, which greatly enhanced the processing efficiency, helped to reduce processing costs and increased productivity; therefore, improved industrial competitiveness for traditional industries. You can use both hands for working.
2.Elite Red Laser Line Projector Features:
a.Wide temperature operation
b.Small size
c.Convenient adjustment
d.Easy mounting
e.High reliability and stability
f.Long lifetime
g.Feasible solutions:Output power and fan angle is adjustable
h. High brightness:projects a highly visible focue-adjustable red laser line for high precision applications

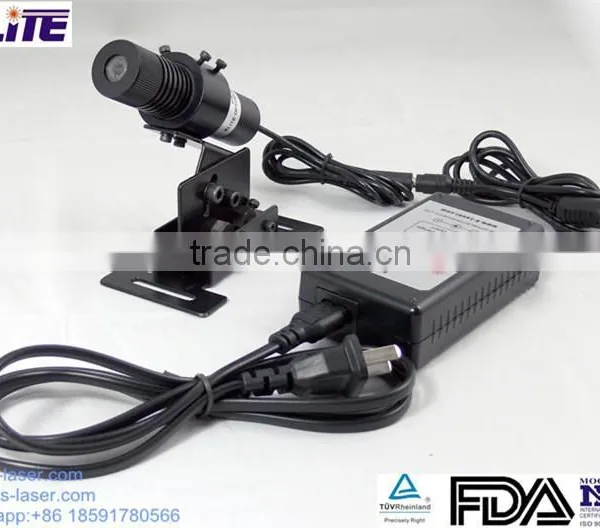

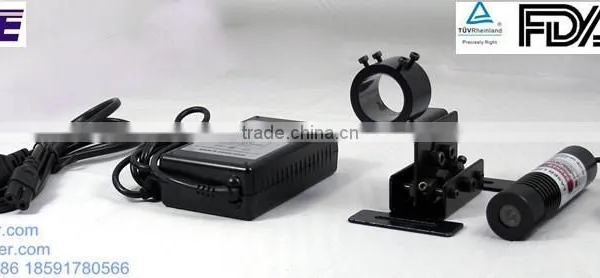

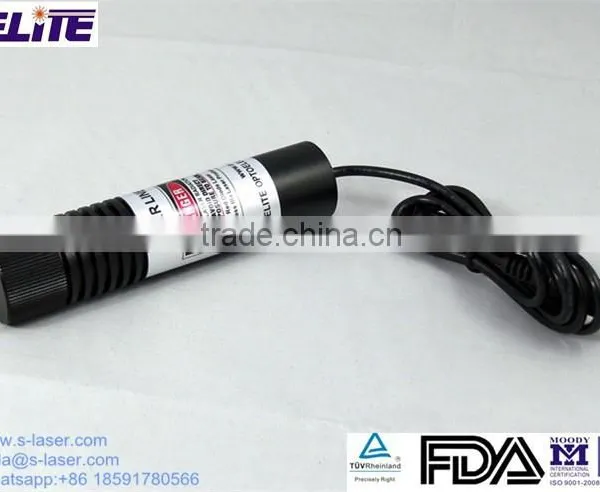

3.Elite ELM650-60A 20mw Red Laser Line Projector Specifications and Photos:
Item | Specification |
Dimension | A series: Dia.16*70mm, Dia.26*110mm |
Wavelength | 650nm |
LD Power | 60mw |
Output Power | 20mw |
Fan Angle | 110° |
Line Width | 1.5mm (at 3m) |
Line Length | 1 : 3 (Distance : Length) |
Lens | Optical glass |
Case Material | Aluminum or brass |
Beam Type | Line |
CDRH Class | Class IIIa or IIIb Laser, ROHS compatible |
Operating Voltage | 5VDC (50/60Hz) |
Operating Temperature | -10-50°C |
Storage Temperature | -40-80°C |
Voltage Stability | >98% (at 2.7-5.5VDC) |
Temperature Stability | >95% (at -10°C-50°C) |
Lifetime | >8,000hrs |
4.Elite Red/Green Laser Line Projector Applications:
a. Industrial alignment and positioning
b.Stone working, wood working, metal working
c.Fabric, rubber and tire cutting or processing
5. Packaging & Delivery & Payment Information:
MOQ: 2pcs.
Supply Ability: 20,000pcs per month.

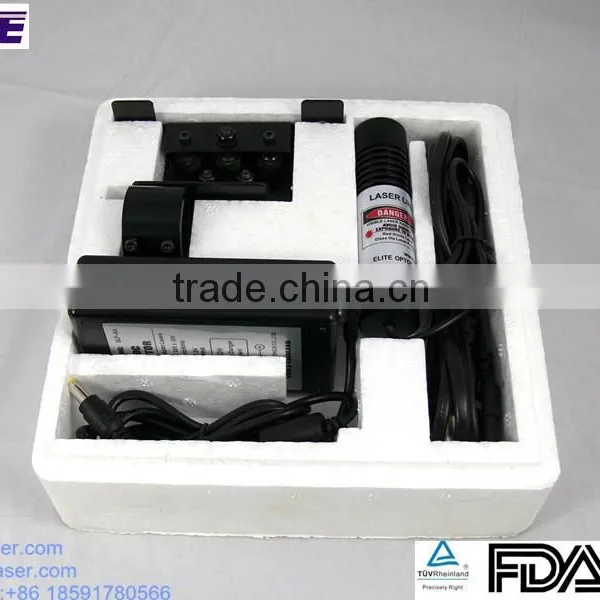

Packaging Details: One unit packed with condensed foam, bulk into export cartons.
Delivery Time: 10-20 days depending on order quantity.
Shipment Term: FOB Xi’an, China.
Payment Terms: T/T, Western Union, Paypal
Shipping Method: DHL/EMS/TNT Air-Express or sea transportation.
6.Warranty:
We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
7.CAUTION:
The laser light is harmful to human body especially to eye no matter what directly or indirectly. The laser beam shall be observed or adjusted through infrared camera or equivalent.
8.Elite QC Flow:
a.Professional Power Meter for double check
b.Qualified professional staff for the beam size/line thickness testing
c.Strictly surface Inspection before load to the warehouse
9.Elite Factory:
Established in 2003, Elite Optoelectronics Co., LTD. covering an area of 2,200 sq.m with 120 staffs, is a professional designer and manufacturer of laser diode modules, fiber coupled laser modules, DPSS laser modules, bore sights, laser sights and related laser instruments like laser pointers etc.
Elite’s products have been widely used in industrial positioning, bar code scan, medical instruments, detecting instruments, surveying instruments, laser instruments, gun laser sights, wild explore instruments, military sight collimating, laser performance systems, laser tools etc.
With certificates of ISO 9001:2008, FDA, IEC, GB and strong OEM & ODM ability, we assure our customers with quality, reliable and consistent products delivery.
10.Elite Production Process:
