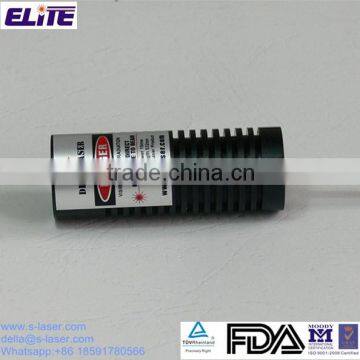

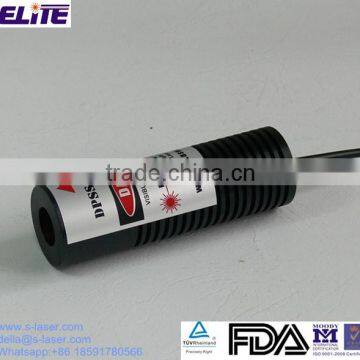

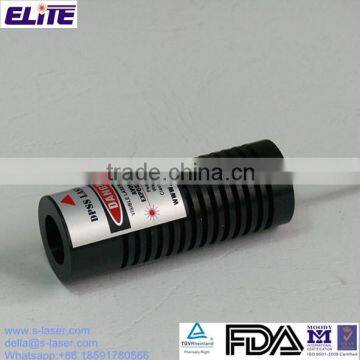

Infrared Laser Diode Module for Industrial Equipment, Laser Detection Devices etc.
1.Elite Infrared Laser Diode Module Description:
Elite could supply industrial infrared laser diode module with wavelength at 780nm, 808nm, 830nm, 850nm and 980nm.
It could be customized into dot, line or cross beams with different aperture and divergence. Some are suitable for short distance working (<2m), while some are suitable for far distance working (>50m).
The main feature is high stability, high reliability and long life span of more than 10,000hrs. I
2.Elite 850nm 500mw-10W Infrared Laser Diode Module Features:
a.Wide temperature operation
b.Mini size
c.High brightness
d.High stability and reliability
e.Low power consumption
f.APC power control
g.Long life operation:>10,000hrs
h.Customized solutions for OEM applications
3.Elite 850nm 500mw-10W High Power Infrared Laser Diode Module Specifications:
Item |
Specification |
Wavelength |
850nm |
Dimension |
42*42*110mm or customized |
Laser Modes |
CW |
Output Power |
500mw-5W |
Case Material |
Aluminum black anodized |
Beam Type |
Dot, line, cross hair laser beam |
CDRH Class |
Class IV Laser |
Operating Voltage |
90-220VAC (50/60Hz) |
Operating Temperature |
-10-40°C |
Storage Temperature |
-40-85°C |
Modulation Frequency |
0~50 kHz (TTL, Analogue) |
Protection |
Static, Surge, and Reverse Polarity Protected |
MTTF |
>10,000hrs |
4.Elite Infrared Laser Module Applications:
a.Laser aiming, positioning and pointing
b.Dimensional scanning
c.Illumination
d.Industrial laser alignment
e.Scanning biochemistry
f.Material inspection
g.Medical treatment
h.Scientific equipment
i.Collimation
j.Optics instrument
k.Laser sight
l.Military Equipment
m.Surveying instrument
5. Why Choose us?
12 years rich industry experience since 2003
SGS TUV assessed supplier
Have FDA, ISO9001:2008, IEC certificates
Cooperation with Top 500 Global Companies like GE, Corning etc.
6. Packaging & Delivery & Payment Information:
MOQ: 10pcs.
Supply Ability: 20,000pcs per month.
Delivery Time: 10-20 days depending on order quantity.
Shipment Term: FOB Xi’an, China.
Payment Terms: T/T, Western Union, Paypal
Shipping Method: DHL/EMS/TNT Air-Express
7.Warranty:
We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
8.Elite Factory Show:
9.Elite Production Process:
11.Meet us on Exhibitions:
a.Shot Show Exhibition held in USA in January.
b.Laser World of PHOTONICS held in Germany in June.
c.Laser World of PHOTONICS held in China in March.
