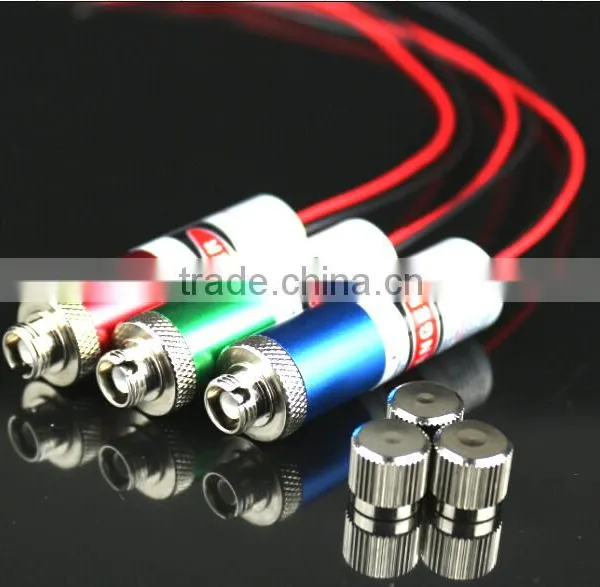

New Design Adjustable Focus Laser Diode Module

New Design Adjustable Focus Laser Diode Module thumbnail-1
New Design Adjustable Focus Laser Diode Module photo-1
US$ 5 - 130 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Elite
Model Number:
EL001
Contact Supplier Request Quote Chat Now
Elite Optoelectronics Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
As request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shaanxi, China
Brand Name Elite
Model Number EL001

Specifications

1. High quality
2. High Stability
3. High reliability
4. APC driving circuit
5. Low cost/ Long life

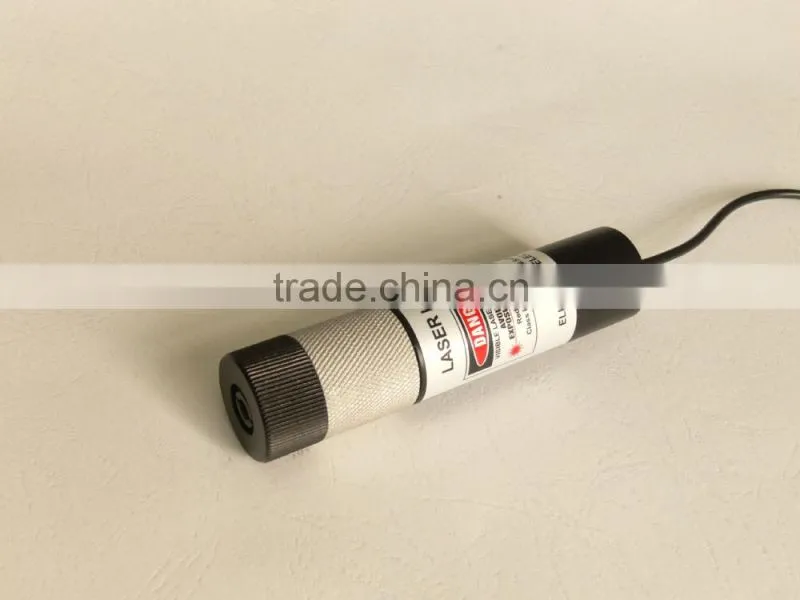

New design adjustable focus laser diode module

ICustomized design

Reliability and stability up to 98% +
ISO9001:2008; SGS; FDA
Dot, line, cross



Items

                           Specifications

Spectral Range

Violet

Blue

Red

Infrared

Wavelength

405nm

450nm

635nm

650nm

780nm

808nm

830nm

850nm

980nm

LD power(mW)

5- 50

5-60

5~180

5~150

5~200

50~5000

5-100

5~100

20~5000

Operating Current

25~5000mA

Input Voltage

2.6~5.5VDC

Operating Temp.

-10°C ~ 50°C

Storage Temp.

-40°C ~ 80°C

Power Stability

> 98% (@2.7 ~ 5.5VDC)

> 95% (@-10°C ~ 50°C)

MTTF

>10000 Hrs.

Circuit Protection

Static, Surge, and Reverse Polarity Protected

Case Material

Brass or Aluminum

Beam Pattern

Dot, Line ,Cross





Application:



  1. Industrial Instruments and Equipments
  2. Wild Explore Instruments
  3. Military Instruments and Equipments
  4. Medical Instruments
  5. Surveying Instruments
  6. Bar Scan





Note:

1, The Dot series laser diode module is customized product with different plastic and glass lens. Thus the

 laser shape could be an ellipse or circle with various divergence, beam size and aperture.  The output

power is adjustable according to customers’ requirements.

2, Dimensions are customized according to customer’s needs except the ones listed.

3, More models could be offered such as EL65D05IGX, EL65D05IG6,EL65D05IG7,EL65D05IG10,

EL65D05IG15, etc. Elite is continually developing new models and launching to me.



Certifications:

New design adjustable focus laser diode module

New design adjustable focus laser diode module







New design adjustable focus laser diode module



Customer Concerns:



Pls mention the following items together with your inquiry:



 1 Wavelength

 2 Output Powder

 3 Housing Dimension

 4 Work distance

 5 Beam size/Line thicknes



Explanation for such a request:

Quotation should be prepared based on all the above information completely provided .



If you`re interested in any of our products,

please contact us:

New design adjustable focus laser diode module

Further more,

we are glad to share the coming trade show schedule which we would attend as below:

New design adjustable focus laser diode module



Elite would be there waiting for your arrival, welcome!~

I New design adjustable focus laser diode module strial 50mw green laser diode module
