High Quality Alloy Steel Plates

Name: High Quality Alloy Steel Plates
Brand: ChangJin
SKU: 111262401

US$ 550 - 700 MOQ: 1 Metric Ton

Key Specifications

Grade:

300 Series

Standard:

JIS, AISI, ASTM, GB, DIN

Length:

Random Length

Shanghai Yinggui Metal Product Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port or Ningbo port

Delivery Detail:

Delivery time depends on order quantity.

Grade 300 Series

Standard JIS, AISI, ASTM, GB, DIN

Length Random Length

Thickness 6-60mm

Width 1500-3000mm

Place of Origin Shanghai, China

Brand Name ChangJin

Model Number Q345B,S345JR,16Mn,St52,etc.

Type Plate

Application Ship Plates,Construction Plates,,Bridge Plates,etc.

Certification ISO

Specifications

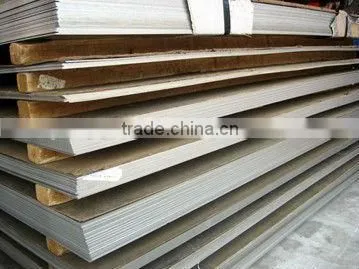

High quality alloy steel plates
1. Ample supply
mpt delivery
3. Flexible Payment Terms
4. Competitive Price for you

Specification of Alloy Steel Plates

Low Alloy Steel Plates (Grade:Q345/16Mn/St52)
	Thickness(mm)	Width(mm)	Length(mm)
Hot Rolled Plates	3	1250-2500	2500/3000/Random Length
	4	1500/1800/2000/2200/2500	6000/8000/Random Length
	6	1500/1800/2000/2200/2500	6000/8000/Random Length
	8	1500/1800/2000/2200/2500	6000mm-12000mm
	10	1500/1800/2000/2200/2500	6000mm-12000mm
	12	1500/1800/2000/2200/2500	6000mm-12000mm
	14	1500/1800/2000/2200/2500	6000mm-12000mm
	16	1500/1800/2000/2200/2500	6000mm-12000mm
	18	1500/1800/2000/2200/2500	6000mm-12000mm
	20	1500/1800/2000/2200/2500	6000mm-12000mm
	25.0-60.0	1500/1800/2000/2200/2500	Random Length
Hot Selling Sizes	(4-8)mm15003000/6000mm; (12-20)mm1500mm6000mm;
Other Common Sizes	12192438; 12202440; 15003000; 15006000; 24386096; 24389143; etc.
	Can be customized, cut, or processed according to customers’ requirements
Application	Widely used in the field of bridges, vehicles, ships, buildings, pressure vessel
Weight Calculation	Weight(kg)=Thickness(mm)Width(m)Length(m)*Density(7.85g/cm3)

Chemical Composition
Q345A	C≤0.20, Mn≤1.70, Si≤0.50, P≤0.035, S≤0.035
Q345B	C≤0.20, Mn≤1.70, Si≤0.50, P≤0.035, S≤0.035
Q345C	C≤0.20, Mn≤1.70, Si≤0.50, P≤0.030, S≤0.030, Al≥0.015
Q345D	C≤0.18, Mn≤1.70, Si≤0.50, P≤0.030, S≤0.025, Al≥0.015
Q345E	C≤0.18, Mn≤1.70, Si≤0.50, P≤0.025, S≤0.020, Al≥0.015
Q345A,B,C,D,E all contain Nb≤0.07, V≤0.15, Ti≤0.20, Cr≤0.30, Ni≤0.012, Mo≤0.10
