Specifications
* Flexible Flat Cable* Made in Japan
* Small-lot order available
Japanese high quality flexible flat cable for dental lab equipment with quick delivery
•We have all the latest equipment.
•We can handle small-lot orders.
•We can conduct business without prepayment requirements.
Lineup Table
YFC Practical Applications:
Camera manufacturing jigs, high-temperature reliability testing jigs, inspection jigs,
handheld terminals, communications equipment, liquid crystal modules,
dental equipment, optical transceivers
SFC Practical Applications:
Control unit wiring, GPS modules, displays, lighting sensors, scanner inspection jigs,
camera inspection jigs
RFM Practical Applications:
Cameras for broadcasting, accelerometers, surveillance cameras,
notebook PCs, connector assessment, communications equipment inspection jigs
RFS Practical Applications: high-sensitivity cameras, X-ray detectors
RFC: Communications equipment, notebook PCs
Nomenclature
Model Number/Specifications List
YFC Features:
General-purpose heat-resistant polyimide-based flexible FPC cable

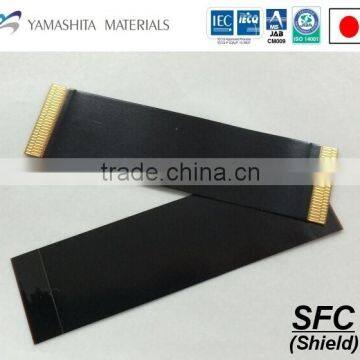

SFC Features:
General-purpose polyimide-based flexible FBC cable with enhanced shielding capabilities

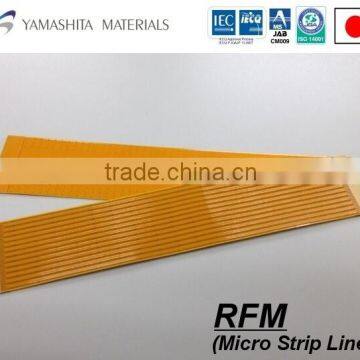

RFM Features:
Liquid crystal polymer-based FPC cable with impedance calibrated to a 100Ω±10Ω differential through
a secure GND coupling

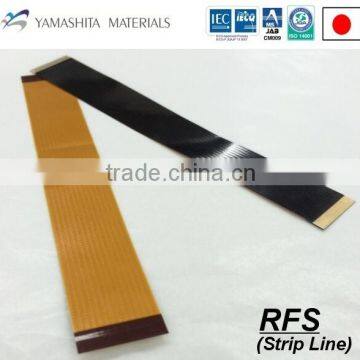

RFS Features:
Liquid crystal polymer-based FPC cable with impedance calibration and high shielding capabilities
from its triple-layered stripline structure

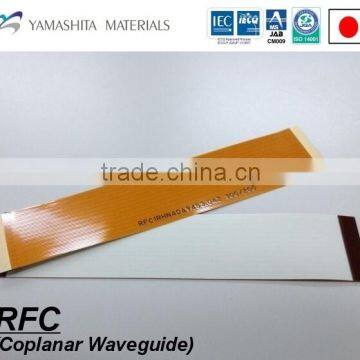

RFC:
Liquid crystal polymer-base FPC cable which is both flexible and LVDS compatible
Image of Layer Structure/Terminal Area
List of tried and proven YFC connectors that are compatible with staggered 0.3mm-pitch terminals
Optimal quantity table
- YFC,SFC 0.3mmPitch -
Length |
||||||||
10mm |
30mm |
50mm |
70mm |
80mm ~100mm |
110mm ~150mm |
160mm ~420mm |
||
PIN |
10pin |
5100pcs |
1900pcs |
1250pcs |
850pcs |
600pcs |
400pcs |
200pcs |
20pin |
3450pcs |
1250pcs |
850pcs |
550pcs |
400pcs |
250pcs |
140pcs |
|
30pin |
2550pcs |
950pcs |
600pcs |
400pcs |
300pcs |
200pcs |
100pcs |
|
40pin |
2100pcs |
800pcs |
500pcs |
350pcs |
250pcs |
180pcs |
90pcs |
|
50pin |
1700pcs |
600pcs |
400pcs |
250pcs |
200pcs |
140pcs |
70pcs |
|
- YFC,SFC 0.5mmPitch -
Length |
||||||||
10mm |
30mm |
50mm |
70mm |
80mm~ |
110mm~ |
160mm ~ |
||
PIN |
10pin |
3850pcs |
1450pcs |
950pcs |
600pcs |
450pcs |
300pcs |
160pcs |
20pin |
2450pcs |
900pcs |
600pcs |
400pcs |
300pcs |
200pcs |
100pcs |
|
30pin |
1700pcs |
600pcs |
400pcs |
250pcs |
200pcs |
140pcs |
70pcs |
|
40pin |
1250pcs |
450pcs |
300pcs |
200pcs |
160pcs |
100pcs |
50pcs |
|
50pin |
1100pcs |
400pcs |
250pcs |
150pcs |
140pcs |
90pcs |
40pcs |
|
- YFC,SFC 1.0mmPitch -
Length |
||||||||
10mm |
30mm |
50mm |
70mm |
80mm~ |
110mm~ |
160mm ~ |
||
PIN |
10pin |
2300pcs |
850pcs |
550pcs |
350pcs |
250pcs |
190pcs |
90pcs |
20pin |
1250pcs |
450pcs |
300pcs |
200pcs |
150pcs |
100pcs |
50pcs |
|
30pin |
850pcs |
300pcs |
200pcs |
140pcs |
100pcs |
70pcs |
35pcs |
|
40pin |
700pcs |
250pcs |
180pcs |
120pcs |
90pcs |
60pcs |
30pcs |
|
50pin |
550pcs |
200pcs |
140pcs |
95pcs |
70pcs |
45pcs |
20pcs |
|
- RFM1,RFM3,RFS1 0.5mmPitch -
Length |
||||||||
10mm |
30mm |
50mm |
70mm |
80mm~ |
110mm~ |
160mm ~ |
||
PIN |
10pin |
3850pcs |
1450pcs |
950pcs |
600pcs |
450pcs |
300pcs |
160pcs |
20pin |
2450pcs |
900pcs |
600pcs |
400pcs |
300pcs |
200pcs |
100pcs |
|
30pin |
1700pcs |
600pcs |
400pcs |
250pcs |
200pcs |
140pcs |
70pcs |
|
40pin |
1250pcs |
450pcs |
300pcs |
200pcs |
160pcs |
100pcs |
50pcs |
|
50pin |
1100pcs |
400pcs |
250pcs |
150pcs |
140pcs |
90pcs |
40pcs |
|
- RFC1,RFC2,RFM2,RFM4,RFS2 0.5mmPitch -
Length |
||||||||
10mm |
30mm |
50mm |
70mm |
80mm~ |
110mm~ |
160mm ~ |
||
PIN |
10pin |
3850pcs |
1450pcs |
950pcs |
600pcs |
450pcs |
300pcs |
160pcs |
20pin |
2450pcs |
900pcs |
600pcs |
400pcs |
300pcs |
200pcs |
100pcs |
|
30pin |
1700pcs |
600pcs |
400pcs |
250pcs |
200pcs |
140pcs |
70pcs |
|
40pin |
1250pcs |
450pcs |
300pcs |
200pcs |
160pcs |
100pcs |
50pcs |
|
50pin |
1100pcs |
400pcs |
250pcs |
150pcs |
140pcs |
90pcs |
40pcs |
|
Image of the Manufacturing Process
Ordering Process
Minimum Delivery Time-Table
Packaging Specifications
Trial samples of YFC 1.0mm-pitch and 0.5mm-pitch cable
Corporate Profile
History
Location
ISO9001 Certification
ISO14001 Certification
Trade Show Exhibition Track Record
