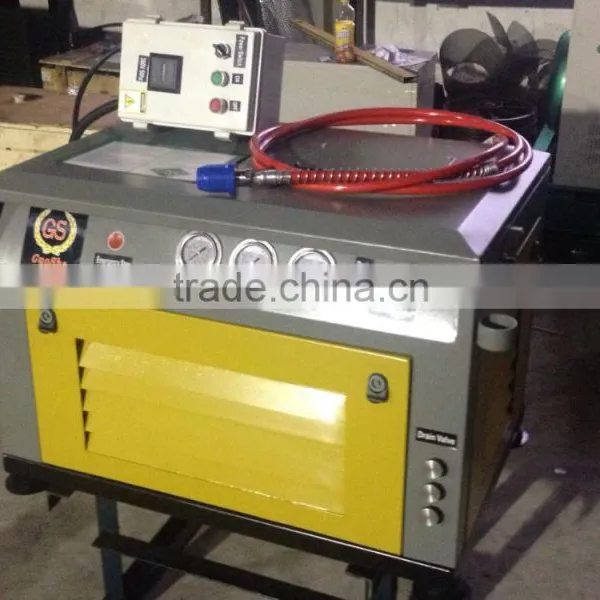

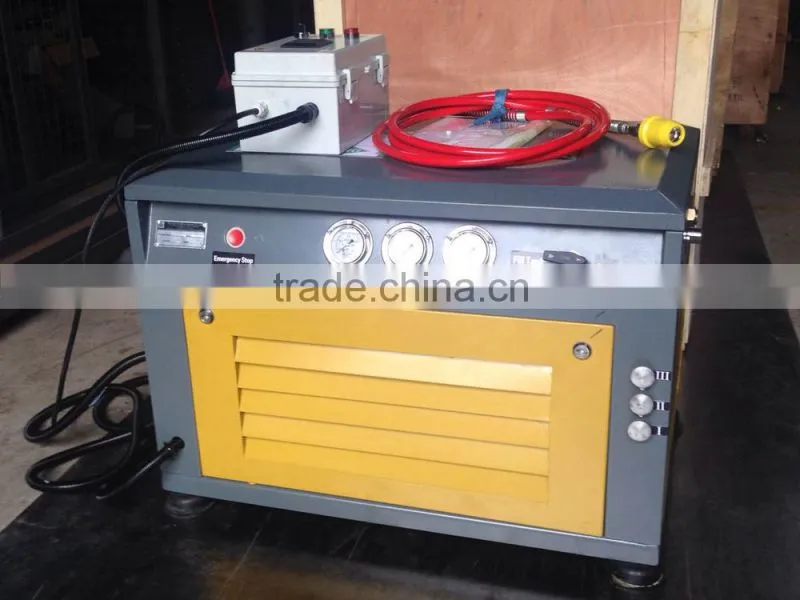

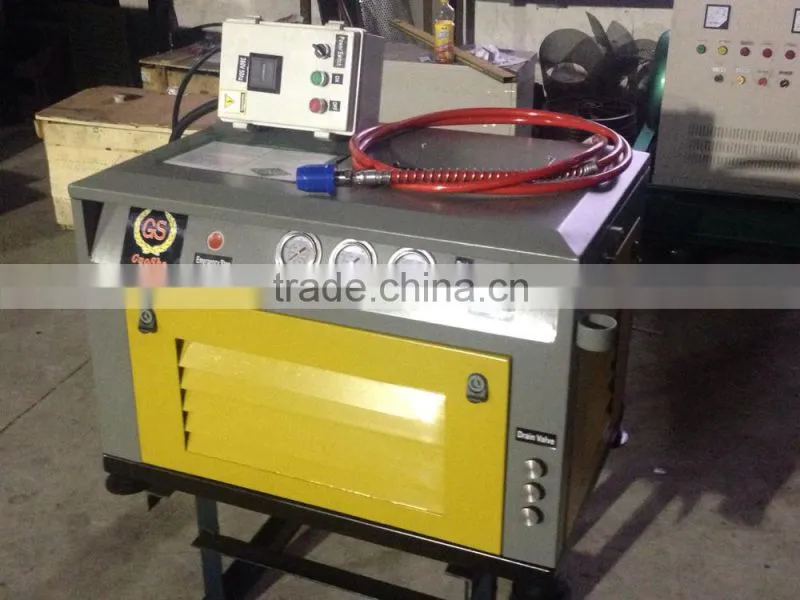

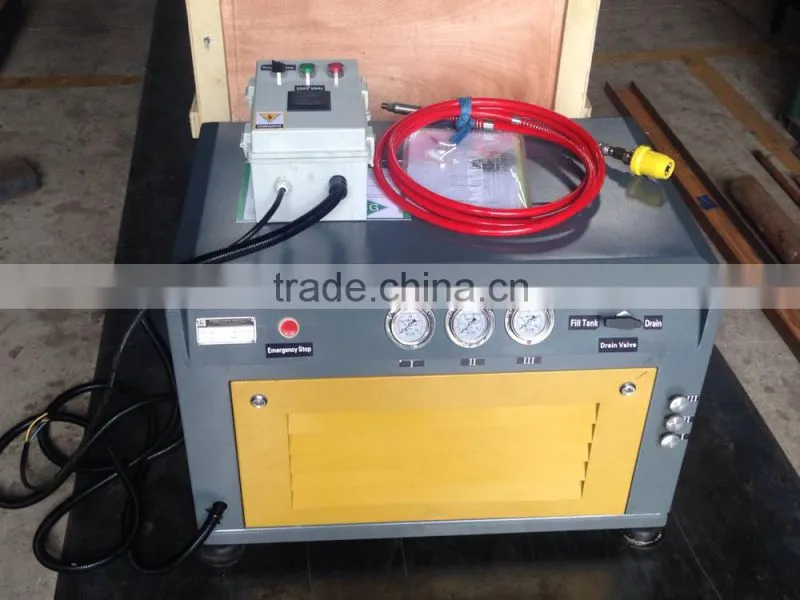

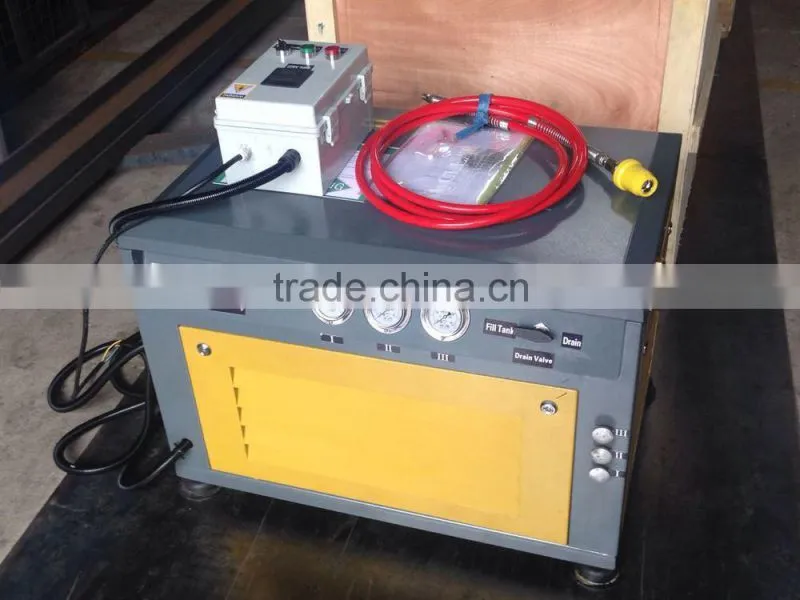

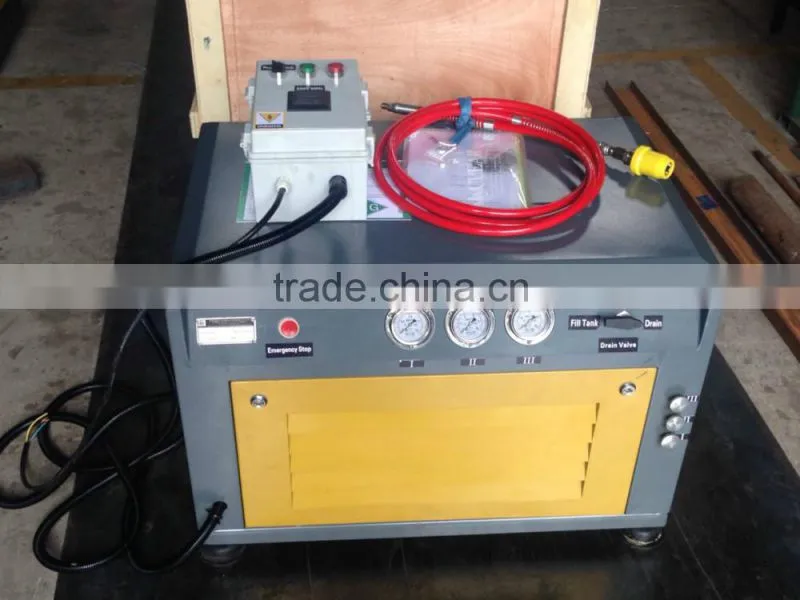

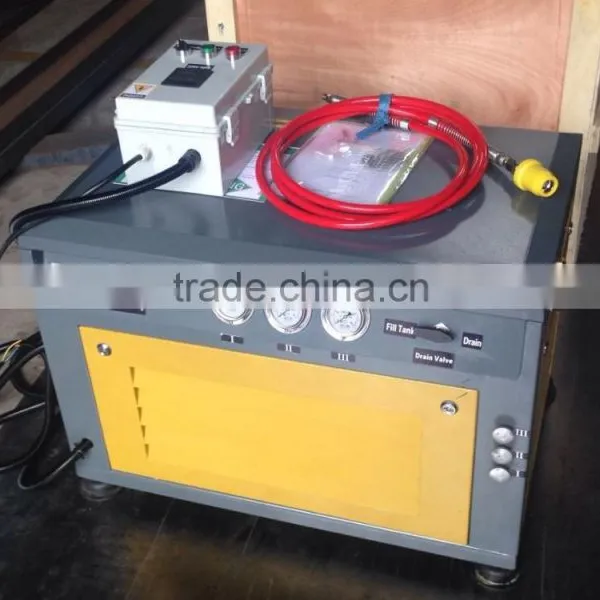

20MPA/25MPA 250bar 3600psi,used natural gas compressor
Specifications:
High-performance small gas compression equipment, mainly for CNG filling gas cylinders and CNG gas vehicle gas filling. As the increase of gas pressure and compressed gas delivery device, its working principle is the inlet pressure is less than 0.3Mpa gas compressed to a gauge pressure of 25Mpa compressed natural gas, inhale for 3-60 cubic meters per hour, the user can according to their own the actual demand freedom of choice. State building brand GS series of small gas compressors used in Germany and Italy, the core technology of key components of the compressor, cylinder head, cylinder block and crankshaft are carried out, such as high technology, such as high-temperature quenching process, wear resistance and stability much higher than abroad similar products, continuous operation, stable and reliable performance. State building brand GS series of small natural gas compressor parts including motors and circuit overall system was proof processing, equipment safety has been the greatest assurance, safety rate of 100%. With a voltage of 380V / 220V and 440V, 110V motors and other electrical system, freedom of choice for users.
Simple installation and operation, low service cost .anti-explosive designed of this compressor make it running in safety. Separate electric controller equipped. It is an ideal unit for filling your vehicle at home, for outdoor and indoor use, three phase electric needed.
Technology
Code |
PR-5 |
|
|
|
|
Flow rate |
5.5 Nm3/h |
3.5 cfm |
|
Filling time |
2.2 hour for 60L |
|
tank(200bar 3000psi) | ||
2.7 hour for 60L | ||
tank(250bar 3600psi) | ||
|
Working pressure |
200bar /3000psi or |
|
250bar /3600psi | ||
Inlet pressure |
Less than 0.3bar 4.5psi |
|
|
Motor power |
EX 3.0kw/4.0hp |
|
50/60hz, three phase | ||
|
Oil separator / oil filter |
1/1 |
|
| ||
|
|
|
|
Safety valve/ Alarm sensor |
1 in final/ |
option |
|
|
|
Time meter |
1 |
|
Starter |
manual |
|
Switch |
auto stop |
|
Emergency stop |
manual |
|
|
Condensate / gas drain |
|
|
manual |
|
|
|
Filling hose connect |
|
|
1 |
|
|
|
Dimensions (H-W-D) |
|
|
600-900-650 mm | ||
Weight |
130 kg |
|
Noise level |
48 db(A) |
|
Q: Can you provide free samples?
A: Yes,as long as the order size is less than about USD10 and you are willing to pay the freight.We guarantee that any sample of our existing products that is needed will be sent within a week. If you need a proof of sample,please contact our sales department directly and immediately to get a specific delivery quotation
Q: What is your MOQ policy?
A: For any hot-selling item for which we have enacted a no MOQ policy,we are committed to delivery within 7 days. Please check our website for specific details on each product,including the MOQ policy for any specific item. If you need a custom color,to print a logo on the item,or customize the packaging,please contact our sales department to recieve a specific quote.
Q:Do you have any after-sale service?
A: With your cooperation,we track product sales and gauge market feedback. We stand ready to adjust and improve products at a moment's notice. We have a safety stock for our best-selling items,so that we can provide fast-delivery to meet your customer's demand. We will promptly notify you of any planned or desire product changes from our end.Moreover,we offer a minimum one-year guarantee on all products, and for large quantities we can offer product-quality insurance.
