Encrypted Satellite Signal input HD/SD Transcoder, OTT Trasncoder

Outline

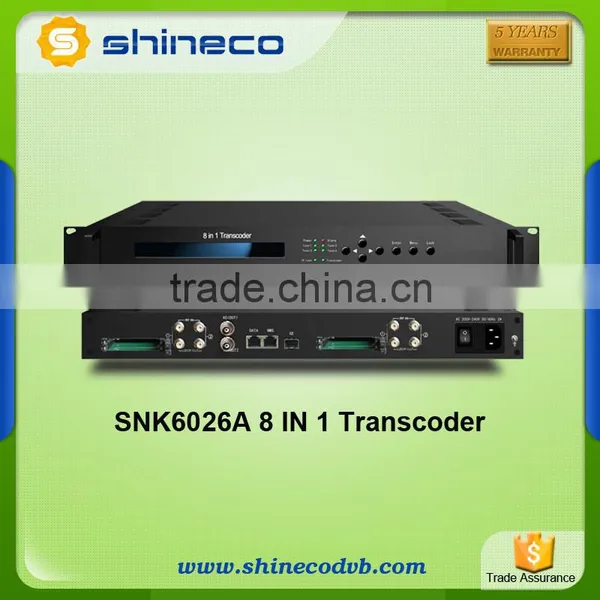

Shineco SNK6026A is a professional bidirectional trans-coder to convert video between H.264 and MPEG-2 format and also to trans-code between HD and SD programs simultaneously. It is equipped with 4 tuner inputs to receive channels directly from satellite. And, each tuner is accompanied with a CAM/CI slot to descramble the encrypt content.

In addition, IP content can also be received and trans-coding processed. This transcoder  will at last output MPTS & SPTS through the DATA port (net port) or ASI port.This trans-coder supports advanced multiplexing and can effectively provide operators with real-time code rate switch and optimize the video with its high performance.

BISS function is now embedded to descramble your tuner input programs and CC function as well to transport your closed caption (or teletext). CC function has been embedded to transport your closed caption (or teletext).It can be easily managed through web NMS system, and has become an ideal solution for operator to provide high quality video trans-coding.

Key Features

* Support 8*IP (SPTS/MPTS) input plus 4*tuners input with 4 CAM/CI slots

* Support 8*SPTS & 1*MPTS (UDP/RTP/RTSP) output; 1 ASI output

* Video Trans-coding: MPEG-2 SD/HD and H.264 SD/HD any-to-any

* Audio Trans-coding: AAC, MP2 and AC3 any-to-any or pass-through;

* Support maximal 8 SD or 4 HD programs trans-coding

* Support maximal 8 channel audio trans-coding

* Support HD and SD resolutions

* Support CBR and VBR rate control

* Support CC (closed caption)

* Support BISS descrambling

* Support IP out with null packet filtered

* Advanced de-multiplexing

     *  LCD & Key board local control; web-based NMS management

Specification

Front and Rear Panel of Shineco OTT Transcoder

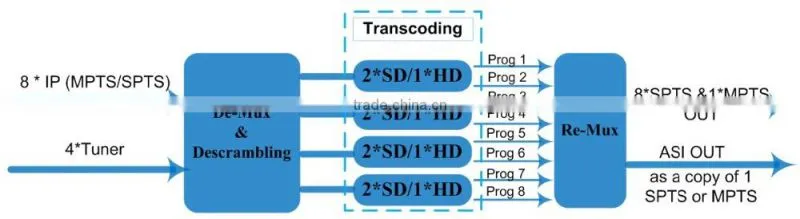

Principle Chart

Transcoding  Example

Operation and Managment Page(Web Managment)

Connect the PC and the device with net cable, and use ping command to confirm they are on the same network segment.
