High -performanced Transmodulator/  DVB S2 to DVB-T Encoder Modulator

                    ---Latest Price please contact Tina Skype: shineco.tina

       High -performanced Transmodulator/ DVB S2 to DVB-T Encoder Modulator

Product Description



Outline



Shineco SNK6320 trans-modulator is the  all-in-one device which integrates demodulation, trans-mux and modulation (DVB-C, DVB-T, ISDB-T or ATSC optional) in one case to convert satellite signals into digital RF output. Its pluggable structure design greatly facilitates the change of modules (RF/HDMI/CVBS/SDI/YPbPr/…) as needed. The unit in this sheet is a 1-U case which supports 4 DVB-S/S2 RF inputs with 4 CAMs/CI accompanied to descramble the encrypted satellite signals. The CAM requires NO unsightly external power cords, cables, or additional remote control device.



To meet customers’ various requirements, SNK6320 is also equipped with 1 ASI input, and output with 2 ASI ports and 1 UDP IP port.

The output modulated signals are to be received by TVs, STB and etc with corresponding standard



Key Features

   Support 4 DVB-C/T/T2/S/S2 Tuner and 2 ASI input ports

* Support accurate PCR adjusting

* Support PSI/SI editing and inserting

* PID Remapping

* Excellent RF output performance index, MER≥40db

* 2*DVB-T RF out or 4*DVB-C RF out optional;

* 2 separate ASI&IP (2*MPTS over UDP) mirror 2 RF output

* 4 CAM decrypt multiple programs from 4 Tuner input(Optional)

* Support BISS descrambling

* Record encoded TS and playback TS files (*.ts) through USB port

* Support LCD display and keyboard

* Support Web management, Updates via web and USB



 Specification


Input

4 DVB-C/T/T2/S/S2 Tuner (Optional) and 2 ASI input

Tuner Section



DVB-C

Standard

J.83A(DVB-C), J.83B, J.83C

Input Frequency

30MHz-1000Mhz

Constellation

16/32/64/128/256 QAM

DVB-T/T2

Input Frequency

30MHz-999.999Mhz

Bandwidth

6/7/8M bandwidth

DVB-S

Input Frequency

950-2150MHz

Symbol rate

2-45Msps

Signal Strength

-65~-25dBm

FEC Demodulation

1/2, 2/3, 3/4, 5/6, 7/8 QPSK

DVB-S2

Input Frequency

950-2150MHz

Symbol rate

QPSK 1~45Mbauds

8PSK 2~30Mbauds

Code rate

1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Demodulation Mode

QPSK, 8PSK

Multiplexing

Maximum PID Remapping

128per input channel

Function

PID remapping (automatically or manually)

Accurate PCR adjusting

Generate PSI/SI table automatically

Modulation

DVB-C

Standard

J.83A(DVB-C), J.83B, J.83C

MER

≥40dB

RF frequency

30~999MHz, 1KHz step

RF output level

-20~0dbm(87~107 dbµV),0.1db step

Symbol rate

5.0Msps-9.0Msps, 1ksps stepping

RF Out

4*DVB-C carriers output



J.83A

J.83B

J.83C

Constellation

16/32/64/128/256QAM

64/256 QAM

64/256 QAM

Bandwidth

8M

6M

6M

DVB-T

Bandwidth

6M, 7M, 8M

Constellation

QPSK, 16QAM, 64QAM

Code rate

1/2, 2/3, 3/4, 5/6, 7/8

Guard Interval

1/32, 1/16, 1/8, 1/4

Transmission Mode:

2K, 8K

MER

≥40dB

RF frequency

30~999MHz, 1KHz step

RF Out

2*DVB-T carriers output

RF output level

-20~0dbm(87~107 dbµV),0.1db step

System

Local interface

LCD + control buttons

Remote management

Web NMS

Stream Out

2 ASI out(BNC type)

IP (2*MPTS over UDP) out (RJ45, 1000M)

Language

English and Chinese

Upgrading

Web and USB

General

Dimension

482mm×300mm×44.5mm(W*D*H)

Weight

3.7kg

Temperature

0~45℃(Operation) ; -20~80℃(Storage)

Power

AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ

Consumption

25W





  Principle Chart for DVB-S2 to DVB-T transmodulator

High -performanced Transmodulator/ DVB S2 to DVB-T Encoder Modulator

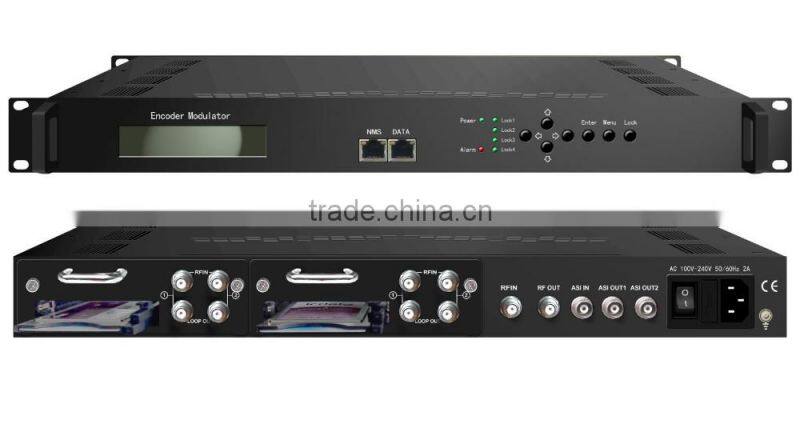

Closed Photo



Closed picture of dvb-s2 to dvb-t encoder modulator(Front Panel and Rear Panel)

 High -performanced Transmodulator/ DVB S2 to DVB-T Encoder ModulatorHigh -performanced Transmodulator/ DVB S2 to DVB-T Encoder Modulator

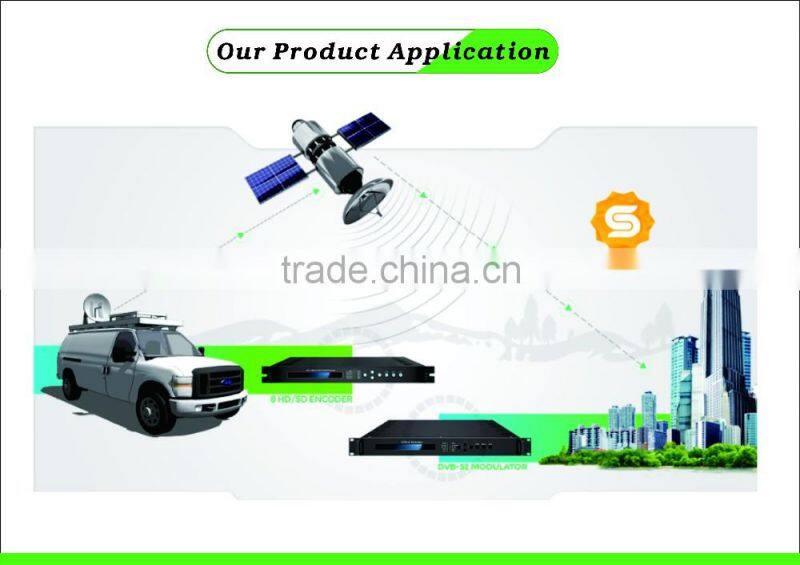

Solution

We provide the below DVB-C/DVB-T/T2/DVB-S/S2IPTV Solution:

High -performanced Transmodulator/ DVB S2 to DVB-T Encoder Modulator



 High -performanced Transmodulator/ DVB S2 to DVB-T Encoder Modulator
