Digital Headend 8 ASI input, 2 ASI outputs(BNC) Mux-Scrambler supports PID Filtering and Remapping
---Latest Price please contact tina skyep: shineco.tina
Outline

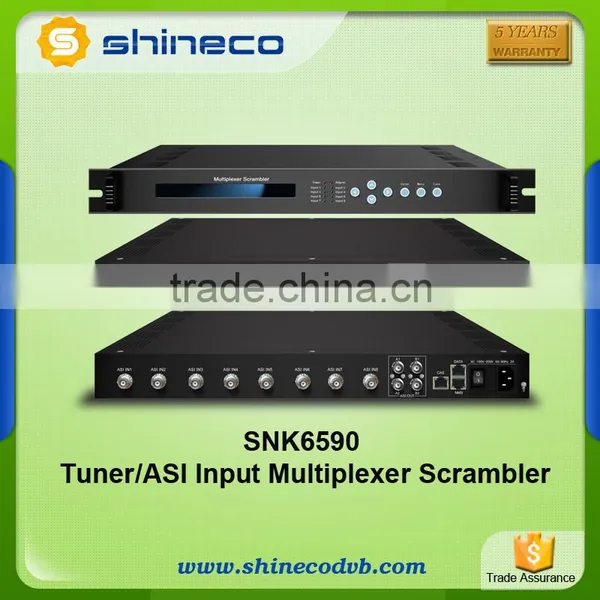

Shineco SNK6950 Tuner input (SNK6950A ASI input) multiplexer scrambler is the latest multiplexing and scrambling device for digital TV broadcasting head-end system. The mux-scrambler 2 groups of ASI output and 2 corresponding IP output (share one gigabit DATA port, RJ45 interface). In conclusion, its high integration and cost effective design make this device widely used in the Next Generation of CATV Broadcasting system.
Key features
- Fully comply with ISO13818 and EN300468 standard
- Integrated multiplexing and scrambling functions
- 6 tuner inputs ( tuner can be DVB-S/DVB-S2/DVB-C/ISDB-T)+2 ASI inputs or 8ASI input
- Support 2 channels TS re-multiplexing
- SPTS and MPTS code stream multiplexing
- Supports accurate PCR adjusting
- Support PID filtering, re-mapping
- Two groups( each group has 2 channels) separate TS output
- TS over UDP output as mirrors of ASI outputs(RJ45)
- Supports PSI/SI rebuilding, editing
- Supports DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
- Support 4 different simulcrypt CAS
- Supports CAS remote connection scrambling
- Supports huge buffer memory and resists unexpected code stream
- Supports multiplexing the same program to all the output channels
- Alarming function
- Supports network remote upgrading
- LCD/keyboard and net management, support NMS/SNMP
Specification
Input interface |
Tuner |
6 tuners (DVB-S/ DVB-C / DVB-S2/ISDB-T optional) |
SNK-6590 |
ASI |
2 ASI |
||
8ASI |
SNK-6590A |
||
Re-multiplex |
2 channels TS re-multiplex |
||
PID re-mapping ( auto/manual optional) | |||
PCR accurate adjusting | |||
Automatically generating PSI/SI table | |||
Input |
Packet format |
204/188 self-adaption |
|
Scrambling |
Simul-crypt CA |
4 |
|
Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
||
Connection |
Local/Remote connect |
||
Output port |
ASI |
2 groups separate outputs (each group has 2 channels) |
|
IP |
TS over UDP output as mirror of ASI output (RJ45) |
||
PID |
Output range |
0x0000—0x1FFF |
|
Amount of output PID per input |
64 |
||
NMS port |
Ethernet port |
10/100M |
|
Miscellaneous |
Demission(LxWxH) |
482mm×410mm×44mm |
|
Weight |
4kg |
||
Temperature |
0~45℃(operation),-20~80℃(storage) |
||
Power supply |
AC 110V±10%,50/60Hz Or AC 220V±10%,50/60Hz |
||
Consumption |
≈18W |
||

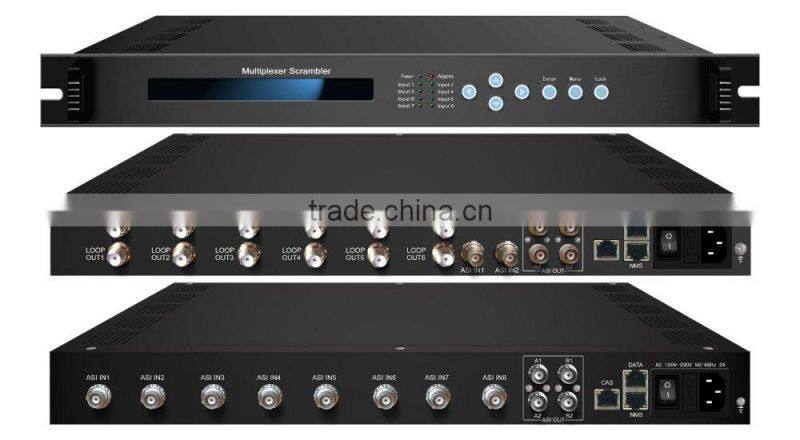

Front and Rear Panel of ASI mux scrambler and Tuner Input Scrambler Multiplexer
16 in 1 RTMP Encoder 8 in 1 HD Encoder MINI HDMI/SDI/HDMI+CVBS Encoder
MPEG-2/H.264 Encoder Modulator Tuner to QAM Modulator HD/SD Encoder Modulator
Shineco Company Brief Introduction and Advantage
Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend DVB-C/T/T2/S2/IPTV and DSNG system.
we submitted to support our distributors and clients by means of successful experiences and perfect services. These added values make our products more worthy.
We work from 9:00 am to 24:00 pm to supply timelyservice for clients,if you choose us,we believe that we shall achieve a win-win situation in the future cooperation. All our products enjoy 5 years warantty. Welcome to contact us!
