Product Details
Place of Origin: | Sichuan, China | Brand Name: | Shineco | Model Number: | SNK6590 |
Product Description

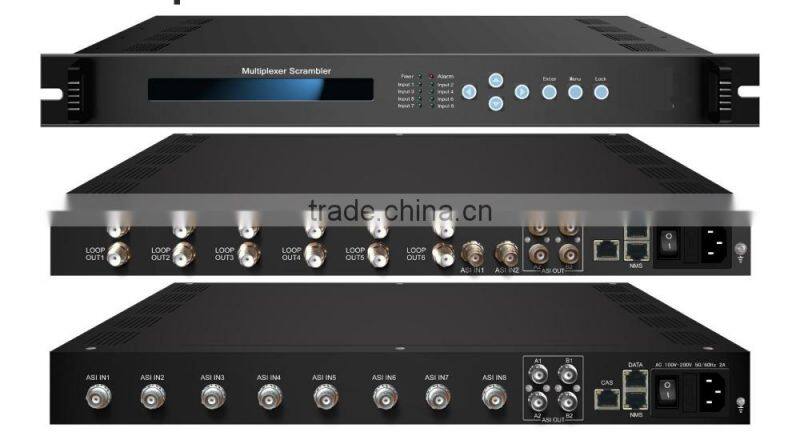

2015 Factory Direct sale Tuner input Multiplexer Scrambler ,
Please add Tina skype: shineco.tina for direct discuss and more details
Outline
Shineco SNK6590 Tuner input ( ASI input) multiplexer scrambler is the latest multiplexing and scrambling device for digital TV broadcasting head-end system. The mux-scrambler 2 groups of ASI output and 2 corresponding IP output (share one gigabit DATA port, RJ45 interface). In conclusion, its high integration and cost effective design make this device widely used in the Next Generation of CATV Broadcasting system.
Features
- Fully comply with ISO13818 and EN300468 standard
- Integrated multiplexing and scrambling functions
- 6 tuner inputs ( tuner can be DVB-S/DVB-S2/DVB-C/ISDB-T)+2 ASI inputs or 8ASI input
- Support 2 channels TS re-multiplexing
- SPTS and MPTS code stream multiplexing
- Supports accurate PCR adjusting
- Support PID filtering, re-mapping
- Two groups( each group has 2 channels) separate TS output
- TS over UDP output as mirrors of ASI outputs(RJ45)
- Supports PSI/SI rebuilding, editing
- Supports DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
- Support 4 different simulcrypt CAS
- Supports CAS remote connection scrambling
- Supports huge buffer memory and resists unexpected code stream
- Supports multiplexing the same program to all the output channels
- Alarming function
- Supports network remote upgrading
- LCD/keyboard and net management, support NMS/SNMP
Specifications
Input interface | Tuner | 6 tuners (DVB-S/ DVB-C / DVB-S2/ISDB-T optional) |
|
ASI | 2 ASI | ||
8ASI |
| ||
Re-multiplex | 2 channels TS re-multiplex | ||
PID re-mapping ( auto/manual optional) | |||
PCR accurate adjusting | |||
Automatically generating PSI/SI table | |||
Input | Packet format | 204/188 self-adaption | |
Scrambling | Simul-crypt CA | 4 | |
Standard | ETR289, ETSI 101 197, ETSI 103 197 | ||
Connection | Local/Remote connect | ||
Output port | ASI | 2 groups separate outputs (each group has 2 channels) | |
IP | TS over UDP output as mirror of ASI output (RJ45) | ||
PID | Output range | 0x0000—0x1FFF | |
Amount of output PID per input | 64 | ||
NMS port | Ethernet port | 10/100M | |
Miscellaneous | Demission(LxWxH) | 482mm×410mm×44mm | |
Weight | 4kg | ||
Temperature | 0~45℃(operation),-20~80℃(storage) | ||
Power supply | AC 110V±10%,50/60Hz Or AC 220V±10%,50/60Hz | ||
Consumption | ≈18W |
Shineco SNK6590 Tuner Operation Interface
Shineco SNK6590 Scrambling Setting
Shineco Company Brief Introduction and Advantage
Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend DVB-C/T/T2/S2/IPTV and DSNG system.
we submitted to support our distributors and clients by means of successful experiences and perfect services. These added values make our products more worthy.
We work from 9:00 am to 24:00 pm to supply timelyservice for clients,if you choose us,we believe that we shall achieve a win-win situation in the future cooperation. All our products enjoy 5 years warantty. Welcome to contact us!
Shineco all DVB Sytem Connection(DVB-C/DVB-T/T2/DVB-S/S2 System)
Shineco Other Hot-sale Digital Headend Equipment.
About Packing and Equipment Power Plug
1. For Sample, you can choose DHL, FEDEX,UPS and EMS.
2. For Bulk Order, you can use Air Transport.
FAQ
Q1:Do you support Sample order?
We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement,
sample are not free charge.
Sample delivery will take approximately 1-3 working days after payment received,
bulk order lead time is about 5-15 days based on
your quantity.
Q2:What is your Payment Terms?
We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,
our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.
Q3:Since there are so many company,how I can believe Shineco is the best factory we can cooperation?
1.First of all,our products and accessories have been inspected and tested by 3 times during every production process,
and all products will aging above 15 days before ship out,so excent quality is promised.
2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.
3. We own the best after sale service, if you face any problem,our team will response within 24 hours,and we can provide remote maintenance by teamviewer or telephone
Q4:Do you support OEM?
Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.
Q5:How to place the order?
1.Directly place order from our alibaba website
2.Send your requirement to Tina email or add her skype: shineco.tina for details
Payment Terms:
1. Payment: T/T, Westerunion, Paypal or online pay
2.MOQ: 1 Set
3. Warranty: 5 Years
