Professional DVB-S2 HD IRD With LCD Monitor

Professional DVB-S2 HD IRD With LCD Monitor thumbnail-1
Professional DVB-S2 HD IRD With LCD Monitor photo-1
US$ 800 - 1,400 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Shineco
Model Number:
SNK675X
Contact Supplier Request Quote Chat Now
Chengdu Shineco Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Main Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name Shineco
Model Number SNK675X

              Professional DVB-S2 HD IRD With LCD Monitor

                                      --------  Please add Tina skype: shineco.tina for direct discuss and more details









Product Description



Outline

Shineco DVB-S2 Receiver Decoder  is the new design IRD with LCD video monitor equipped on the front panel. It can receive signals from tuner (DVB-C, DVB-T/T2, DVB-S/S2, DMB-T, ISDB-T, and ATSC-T optional), ASI and IP sources. After multiplexing and de-encryption with CAM module, it gives content out through ASI, IP as well as various video/audio interfaces. Its video/audio outputs support professional HD/SD-SDI, YPbPr, HDMI, stereo balanced audio, stereo unbalanced audio and S/PDIF digital audio and CVBS, which can greatly satisfy the professional users’ needs. With the CAM/CI slot, SNK675X can support one channel (Tuner, ASI or IP) de-scrambling and give transparent signal output. User can operate the device by using front panel LCD or NMS/SNMP software or Webpage-based NMS. Moreover, users can choose to have an optional ASI output which can pass through the encryption data source directly from tuner.



Key Features

  •   Support DVB-C, DVB-T/T2, DVB-S/S2, DMB-T, ISDB-T, and ATSC-T RF Input optional

  •   Support LCD display for decoding video

  •   Support MPEG-2 & MPEG-4 video decoding

  •   Support AC3 pass through (for SDI interface only)

  •   Re-multiplexer embedded

  •   Support Tuner, IP, ASI Input at the same time

  •   Support IP, ASI, Decoding output at the same time

  •   Support 8xSPTS/32xSPTS and1 IP MPTS output

  •   Support CAM/CI card insert

  •   Support BISS descrambling: Mode 1 and Mode E

  •   Support CC (Closed Caption) – for SDI and CVBS interfaces

  •   Support Front Panel and NMS/SNMP network management and Web management



Specification



Input Interface

Tuner

1 Tuner (DVB-C/DVB-S/ DMB-T/DVB-T/ DVB-S2/ ISDB-T/ATSC-T / DVB-T2 optional)

ASI

1 ASI IN (support 188/204 package format)

IP

1 IP (100M, RJ45 Port) UDP, RTP/RTSP

Demodulating Section



DVB-C

Standard

J.83A(DVB-C), J.83B, J.83C

Frequency In

30 MHz~1000 MHz

Constellation

16/32/64/128/256 QAM



DVB-T/T2

Frequency In

30MHz ~999.999 MHz

Bandwidth

6/7/8 M bandwidth



DVB-S

Frequency In

950-2150MHz

Symbol rate

1-45Msps

Signal Strength

- 65- -25dBm

Constellation

1/2, 2/3, 3/4, 5/6, 7/8 QPSK



DVB-S2

(Version 1)

Frequency In

950-2150MHz

Symbol rate

1~45 Msps

FEC

1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Constellation

QPSK, 8PSK

DVB-S2

(Version 2)

Frequency In

950-2150MHz

FEC

1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Symbol rate

Constellation

FEC



QPSK, 8PSK



1~45 Msps

16APSK

2/3

1~45 Msps

3/4

1~41 Msps

4/5

1~38 Msps

5/6

1~37 Msps

8/9

1~35 Msps

9/10

1~35 Msps

32APSK

3/4

1~32 Msps

4/5

1~31 Msps

5/6

1~30 Msps

8/9

1~28 Msps

9/10

1~28 Msps

Output

ASI Output

2 ASI output (after multiplexer)

2 ASI output (tuner input pass through)

IP output

Protocol: UDP, RTP/RTSP

1 MPTS & 8 SPTS (100M)

SNK675x only

1 MPTS & 32 SPTS (1000M)

SNK677x only

Video Output

1xCVBS(BNC): 576i*25fps, 480i*29.97fps

1xYPbPr(BNC): 1080i*25, 29.97, 30fps; 720p*50, 59.94fps

1xHD/SD-SDI(BNC): 1080i*25, 29.97, 30fps; 720p*50, 59.94fps; 576i*25fps; 480i*29.97fps

1 x HDMI: 1080i*25, 29.97, 30fps; 720p@50, 59.94fps

Audio Output

Stereo unbalanced audio: BNC interface

Stereo balanced audio: XLR interface

Digital audio: SPDIF

Video Decoding

MPEG-2, MPEG-4

Audio Decoding

MPEG1 layer 2, AC3, HE-AAC(v2), LC-AAC

BISS De-scr

Mode 1, Mode E

NMS Port

Ethernet Port

10/100M

Protocols

NMS: TCP/IP

System

Management: front panel (LCD + Keyboard);

Network (NMS/SNMP);

Web-based NMS Management

English and Chinese interface conversion

Ethernet port for CPU/FPGA upgrade

USB port for decoder upgrade

LCD Monitor for decoding video

Miscellaneous

Dimensions

482mm*455mm*44.5mm ( L×W×H)

Approx weight

3.2kg

Power

<20W(Max)

Temperature

0~45℃(Operating), -20~80℃(Storage)





Shineco  DVB-S2 HD IRD With LCD Monitor  Appearance and Description



                                                                  Front Panel Illustration



 Professional DVB-S2 HD IRD With LCD Monitor



                                                           Rear Panel Illustration

Professional DVB-S2 HD IRD With LCD Monitor

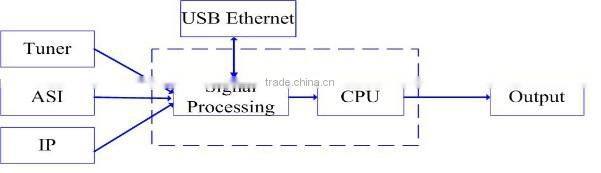

  Shineco  DVB-S2 HD IRD With LCD Monitor   Principal Chart



 Professional DVB-S2 HD IRD With LCD Monitor



 Professional DVB-S2 HD IRD With LCD Monitor

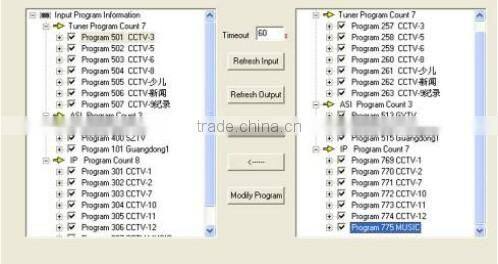

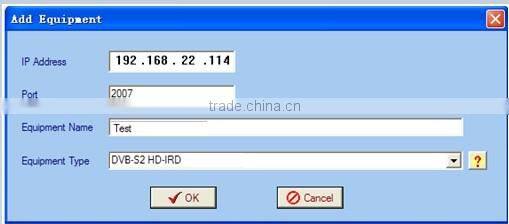

Shineco  Low Cost Satellite Receiver HD   Inner Setting


Professional DVB-S2 HD IRD With LCD Monitor



Professional DVB-S2 HD IRD With LCD MonitorProfessional DVB-S2 HD IRD With LCD Monitor

Professional DVB-S2 HD IRD With LCD Monitor



solutions

Professional DVB-S2 HD IRD With LCD Monitor
