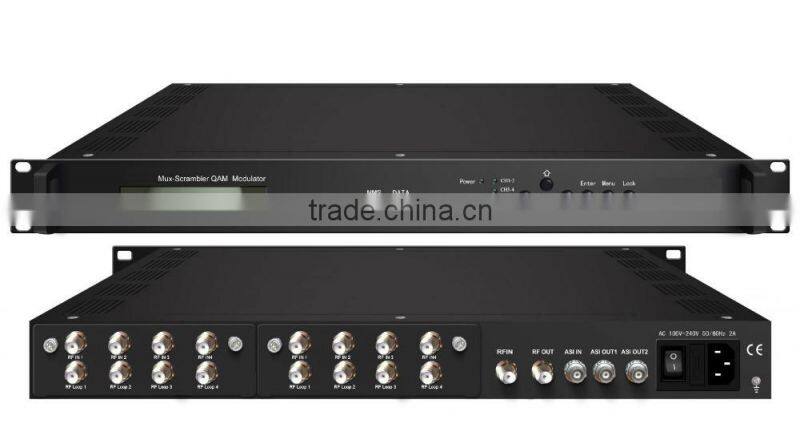

Low Price Tuner input Mux-Scrambling QAM Modulator
Please add Tina skype: shineco.tina for direct discuss and more details
Outline
Tuner input mux-scrambling QAM Modulator is the latest generation mux-scrambling-modulating all-in-one device. It has 8 channel tuner (DVB-S2) and one channel ASI inputs. After multiplexing, scrambling and QAM modulating process, it outputs digital RF.
To meet customers’ various requirements, this device is also equipped with IP port and 2 ASI out port to output TS. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.
Features
*Support 8 Tuner+1 ASI input ports
* Fully support DVB-C (EN300 429) and ITU-T J.83A/B/C
* Fully support DVB general scrambling system description ETR289, and ETSI 101 197 and ETSI 103 197
* Support demodulating + multiplexing + scrambling + QAM modulating
* Support MPTS over UDP, RTP/RTSP output as mirror of ASI output(RJ45)
* Symbol rate adjusting range: 5.0Msps~9.0Msps
* Five constellation modes: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
* Support accurate PCR adjusting
* Supports PID filtering, remapping and PSI/SI editing
* Excellent RF output performance index, MER≥40db
* Support LCD display and keyboard
* Web-based NMS management
Specifications
Input |
8 DVB-S2 tuners+1 ASI |
||
Multiplexing |
Maximum PID Remapping |
128 per input channel |
|
Any PID transparent and mapping achievable | |||
Accurate PCR adjusting | |||
Generate PSI/SI table Automatically | |||
Scrambling |
Simul-crypt CA |
1 |
|
Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
||
Connection |
Local/Remote connect |
||
Modulation |
QAM Channel |
1 |
|
Standard |
EN300 429/ITU-T J.83A/B/C |
||
Symbol Rate |
5.0~9.0Msps, 1ksps stepping |
||
Constellation |
16, 32, 64, 128, 256 QAM |
||
FEC |
RS (204, 188) |
||
Connector |
F Type, 75Ω impedance |
||
RF Range |
30~999MHz, 1kHz stepping |
||
Output Attenuation |
-30dBm~-10dBm, 0.1dB Stepping |
||
MER |
≥40db |
||
ACLR (Adjacent channel leakage ratio) |
-55dBC |
||
Output |
ASI |
2 ASI mirrored output (BNC) |
|
IP (100M Ethernet) |
MPTS over UDP, RTP/RTSP output as mirror of ASI output |
||
System |
Support LCD display, keyboard operation; |
||
Web-based NMS operation | |||
English and Chinese operation interface conversion | |||
Support Software Upgrading through Ethernet | |||
General |
Dimension (W*D*H) |
482mm×455mm×44.5mm |
|
Weight |
3.7kg |
||
Temperature |
0~45℃(Operation) ; -20~80℃(Storage) |
||
Power |
AC100V±1050/60HzorAC 220V±10%,50/60HZ |
||
Consumption |
25W |
||
Principal Chart
Shineco Company Brief Introduction and Advantage
Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend DVB-C/T/T2/S2/IPTV and DSNG system.
we submitted to support our distributors and clients by means of successful experiences and perfect services. These added values make our products more worthy.
We work from 9:00 am to 24:00 pm to supply timelyservice for clients,if you choose us,we believe that we shall achieve a win-win situation in the future cooperation. All our products enjoy 5 years warantty. Welcome to contact us!
Shineco all DVB Sytem Connection(DVB-C/DVB-T/T2/DVB-S/S2 System)
Shineco Other Hot-sale Digital Headend Equipment.
About Packing and Equipment Power Plug
1. For Sample, you can choose DHL, FEDEX,UPS and EMS.
2. For Bulk Order, you can use Air Transport.
FAQ
Q1:Do you support Sample order?
We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement,
sample are not free charge.
Sample delivery will take approximately 1-3 working days after payment received,
bulk order lead time is about 5-15 days based on
your quantity.
Q2:What is your Payment Terms?
We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,
our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.
Q3:Since there are so many company,how I can believe Shineco is the best factory we can cooperation?
1.First of all,our products and accessories have been inspected and tested by 3 times during every production process,
and all products will aging above 15 days before ship out,so excent quality is promised.
2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.
3. We own the best after sale service, if you face any problem,our team will response within 24 hours,and we can provide remote maintenance by teamviewer or telephone
Q4:Do you support OEM?
Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.
Q5:How to place the order?
1.Directly place order from our alibaba website
2.Send your requirement to Tina email or add her skype: shineco.tina for details
Payment Terms:
1. Payment: T/T, Westerunion, Paypal or online pay
2.MOQ: 1 Set
3. Warranty: 5 Years
