DSNG Modulator QPSK 8PSK DVB-S2 Modulator RF output
Add Jacky Skype To Talk Details:Jacky.shineco
Product Overview

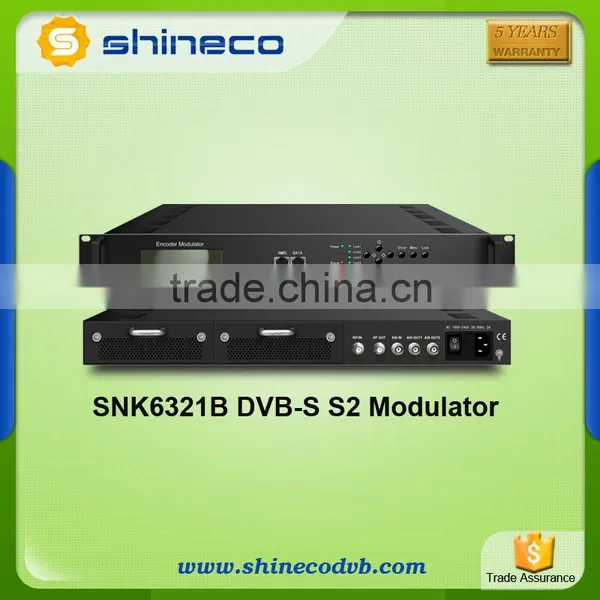

SNK6321B DVB-S/S2 modulator is equipped with 1 ASI input. After multiplexing process, the device converts the multiplexed TS into DVB-S/S2 RF out. It also output the TS through ASI and IP ports.
It adopts inner drawer-type structural design which makes it possible for users to insert encoding modules (SDI/HDMI/YPbPr/CVBS…) as needed.
In conclusion, its cost effective design makes the device widely used in satellite digital TV broadcasting etc.
Key Features
1*ASI in for re-mux
1*RF in for RF mix
Digital DVB-S/S2RF out
ASI out; IP(MPTS) out over UDP
Excellent modulation quality
LCD display, Remote control and firmware
Web-based NMS management; Updates via web
Input Interface |
1×ASI input, 1xRF input for mix |
Output |
1xDVB-S/S2 RF output |
2xASI mirrored output |
IP (MPTS) out over UDP (RJ45, 100M) |
DVB-S/S2 Modulation Section |
DVB-S: FEC 1/2,2/3,3/4,5/6,7/8 |
DVB-S2 QPSK: FEC 1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10 |
DVB-S2 8PSK FEC 3/5,2/3,3/4,5/6,8/9,9/10 |
RF output: 950.00-1050.00 MHz, 1Khz step |
|
DVB-S and DVB-S2 QPSK Symbol rate: 0.05-40.0Msps DVB-S2 8PSK Symbol rate: 0.05-26.0Msps |
|
DVB-S Roll Off: 0.35 DVB-S2 Roll Off: 0.35, 0.25, 0.2 |
Output level: -30db~-10.0db |
System
Local Control |
LCD + control buttons |
Remote Control |
Web NMS |
Language |
English |
RF 24V Power Out |
Support |
Physical Specification
Demission |
482×300×44mm (W*L*H) |
Temperature |
0~45℃(operation), -20~80℃(storage) |
Weight |
3.5kgs |
Power Supply |
AC 100-240V 50/60Hz |
Advantage
Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend
DVB-C/T/T2/S2/IPTV and DSNG system.
we submitted to support our distributors and clients by means of successful experiences and perfect services.
These added values make our products more worthy.
Shineco Team members are kindly and warmly enough to help you find the best solution for your project and market,
we work from 9:00 am to 24:00 pm to supply in time service for clients,if you choose us,we believe that we shall achieve
a win-win situation in the future cooperation.
