IP To DVB-C Modulator/IP QAM Modulator

Product Outline

SNK6010 IP Mux-Scrambling QAM modulation module is the latest generation mux-scrambling-modulating all-in-one device. A single module supports maximum 512 IP (MPTS/SPTS) input and 24 carriers output as well as 24 IP output after multiplexing and scrambling process (RF output for local transmission and IP output for remote sub-head end). It adopts the slot structure with one device supporting maximum 3 SNK6010 modules and 72 channels mux-scrambling-modulation. Each module can work standalone.

With its powerful performance and low cost, SNK6010 is especially adequate for the new generation CATV system.

Key features

•   Compliant to DVB-C (EN 300 429) and ITU-T J.83 A

•   Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197

•   2 GE input per module, RJ45 interface or SFP

•   Supports up to 512 channels IP input over UDP, RTP (MPTS/SPTS)

•   Supports unicast and multicast, supports IGMP v2v3

•   Max 840Mbps effective bit rate for every GE input

•   Supports re-multiplexing and MPTS/SPTS multiplexing

•   Supports up to 256 PIDs remapping per channel

•   24 QAM carriers output per module, adjustable frequency output within 768 MHz

•   Support 24 IP (MPTS) output over UDP, RTP/RTSP per module

•   Supports RS (204,188) encoding

•   Excellent RF performance, MER≥40db

•   Support Web-based NMS Management

•   Modular design, 1U chassis support up to 3 modules

•   Redundancy Power Supply

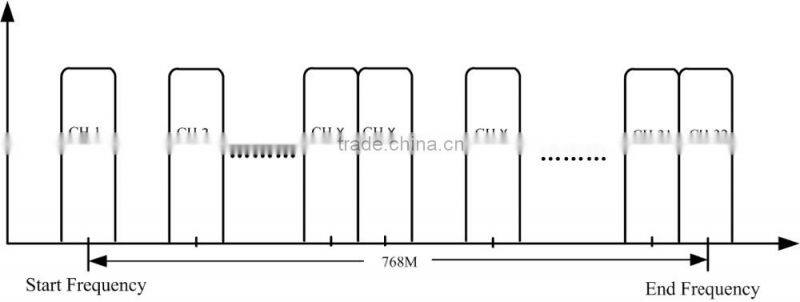

Carrier Setting Illustration

24 QAM carriers output per module, adjustable carrier frequency output within 768 MHz: support non-adjacent frequency setting

Bandwidth can be disregarded (regardless of bandwidth)

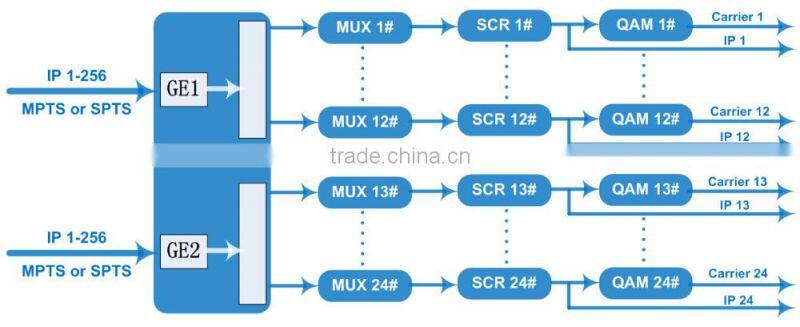

Inner Principle (of a single moudle)

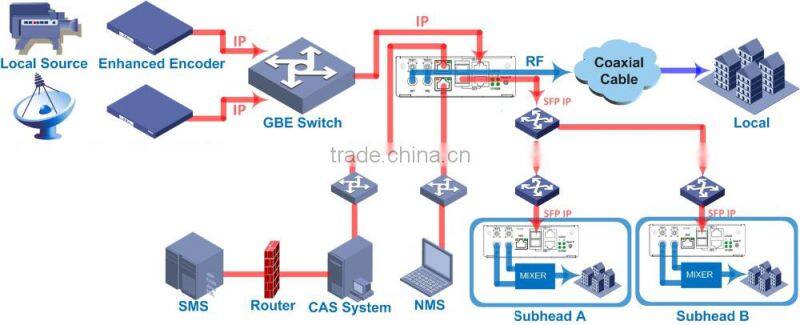

System Connection Sample IP Base

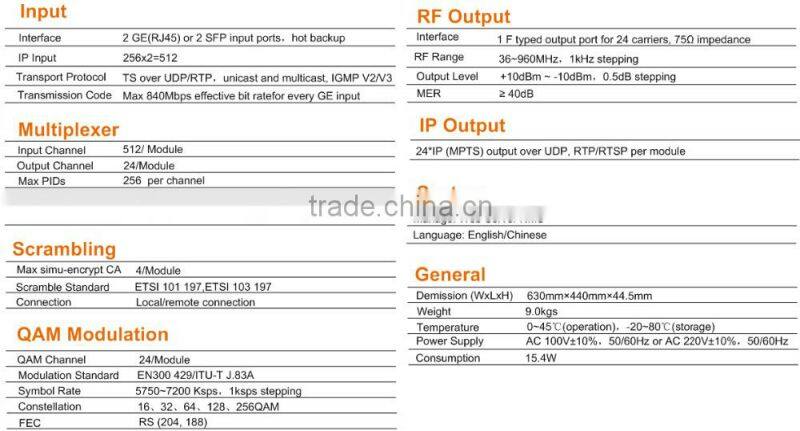

Specification

Advantage
