8 Transponders QPSK DVB-S2 DVB Scrambler To DVB-C Transmodulator
Add Jacky Skype To Talk Details:Jacky.shineco
Outline
SNK6121D is a high performance and cost-effective mux-scrambling QAM modulator designed by Shineco. It has multiple input ports optional. After multiplexing, scrambling and QAM modulating process, then it gives 4 RF output. To meet customers’ various requirements, this device is also equipped with IP port to output 4 MPTS over UDP. Its pluggable structure design greatly facilitates the change of modules (demodulator) as needed.
The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.
Key Features
* Input: 8 DVB-C/S/S2 Tuner + 6 ASI input ports (Version 1)
4 DVB-C/S/S2 Tuner + 6 ASI + 2 IP input port (Version 2)
8 DVB-C/S/S2 Tuner + 2 ASI + 2 IP input port (Version 3)
* Fully support DVB-C (EN300 429) and ITU-T J.83A/B/C
* Fully support DVB general scrambling system description ETR289, simulcrypt standard ETSI 101 197 and ETSI 103 197
* Support 4 channels multiplexing+4 channels scrambling+4 channels QAM modulating
* Support accurate PCR adjusting
* Support PSI/SI editing and inserting
* Excellent RF output performance index, MER≥40db
* Support 4*MPTS output over UDP
* Support LCD display and keyboard
* Support Web management, Updates via web and USB
Specifications
Input | 8 DVB-C/S/S2 Tuner + 6 ASI input ---------Version 1 | ||||
4 DVB-C/S/S2 Tuner + 6 ASI + 2 IP input -----------Version 2 2 IP(SPTS/MPTS) input over UDP, RJ45, 1000M, Unicast/Multicast | |||||
8 DVB-C/S/S2 Tuner + 2 ASI + 2 IP input -----------Version 3 2 IP(SPTS/MPTS) input over UDP, RJ45, 1000M, Unicast/Multicast | |||||
Tuner Section
| DVB-C | Standard | J.83A(DVB-C), J.83B, J.83C | ||
Input Frequency | 30MHz-1000Mhz | ||||
Constellation | 16/32/64/128/256 QAM | ||||
DVB-S | Input Frequency | 950-2150MHz | |||
Symbol rate | 2-45Msps | ||||
Signal Strength | -65~-25dBm | ||||
FEC Demodulation | 1/2, 2/3, 3/4, 5/6, 7/8 QPSK | ||||
DVB-S2 | Input Frequency | 950-2150MHz | |||
Symbol rate | QPSK 1~45Mbauds 8PSK 2~30Mbauds | ||||
Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | ||||
Demodulation Mode | QPSK, 8PSK | ||||
Multiplexing | Maximum PID Remapping | 128per input channel | |||
Function | PID remapping (automatically or manually) | ||||
Accurate PCR adjusting | |||||
Generate PSI/SI table automatically | |||||
Scrambling | Maximum simulcrypt CA | 4 | |||
Standard | ETSI 101 197, ETSI 103 197 | ||||
Connection | Local/remote connection | ||||
Modulation | QAM Channel | 4 | |||
Standard | EN300 429/ITU-T J.83A/B/C | ||||
MER | ≥40db | ||||
RF frequency | 30~999MHz, 1KHz step | ||||
RF output level | -20~0dbm(87~107 dbµV),0.1db step | ||||
Symbol Rate | 5.0Msps~9.0Msps, 1ksps stepping | ||||
Constellation | 16/32/64/128/256QAM | ||||
| J.83A | J.83B | J.83C | ||
Constellation | 16/32/64/128/256QAM | 64/256 QAM | 64/256 QAM | ||
Bandwidth | 8M | 6M | 6M | ||
System | Local interface | LCD + control buttons | |||
Remote management | Web NMS | ||||
Stream Out | 4*MPTS over UDP out (RJ45, 1000M, Unicast/Multicast) | ||||
Language | English and Chinese | ||||
Software Upgrading | Web and USB | ||||
General | Dimension (W*D*H) | 482mm×300mm×44.5mm | |||
Weight | 3.7kg | ||||
Temperature | 0~45℃(Operation) ; -20~80℃(Storage) | ||||
Power | AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ | ||||
Consumption | 25W | ||||

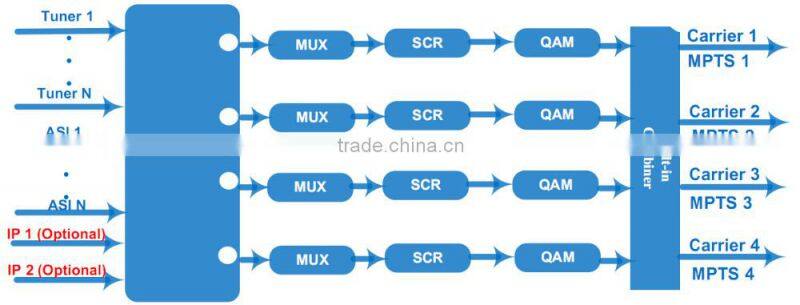

Working Principle
