Chengdu Professional FM Receiver FM to IP Gateway
---Latest Price please contact skype ID:nancydvb
Outline

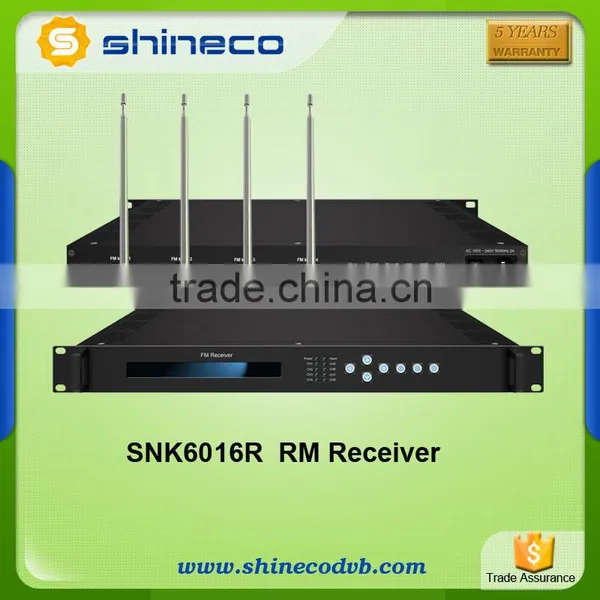

SNK6016R 8-in-1 FM receiver is designed to receive FM audios and compress the input FM audios into digital TS and output through ASI and IP ports. Digital TS are distributed to HFC or terrestrial transmission system, which makes it possible to license radios with your STB or TV set.
Each antenna receives two audios and this unit can maximally process 8 audios. In addition, it is equipped with one ASI input port as well for Audio/Video re-mux. It is featured to operators with its high capacity and integration.
Key features
*4 antennas receiving 8 FM audio
* 1 ASI input for Audio/Video re-mux
* MPEG1 Layer 2 audio encoding
* Support volume and audio gain control
* Support 2 ASI mirrored output
* Support SPTS & MPTS IP output over UDP
* LCD / keyboard and web-based NMS operation
* Update device through NMS port

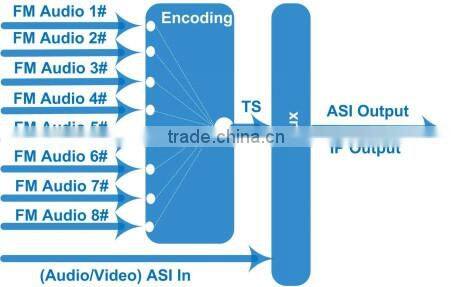

Principle
Specification
FM Receiving |
Antenna Frequency |
88-108 MHz |
Volume Control |
0%-100% |
|
FM lock status and signal quality display | ||
Audio Encode |
Encoding Format |
MPEG1 Layer 2 |
Audio Gain |
-20 ~ +6 dB |
|
Sampling Rate |
48KHz |
|
Bit-rate |
32/48/56/64/80/96/112/128/160/192/224/256/320/384Kb/s (each channel) |
|
Stream In/Out |
1*ASI input, BNC interface |
|
2*ASI mirrored output, BNC interface | ||
8*SPTS+1*MPTS over UDP, 1000M Base-T Ethernet interface (unicast/multicast) (SPTS output is for the FM input audio) | ||
System |
LCD/keyboard operating, web-based NMS manage |
|
Language: English/Chinese | ||
Ethernet software & hardware upgrade | ||
Miscellaneous |
Dimension |
482mm×455mm×44mm (W× L× H) |
Approx weight |
4kg |
|
Temperature |
0~45℃ (work), -20~80℃(Storage) |
|
Power |
AC 100V-220V±10%, 50/60Hz |
|
Consumption |
25W |
|

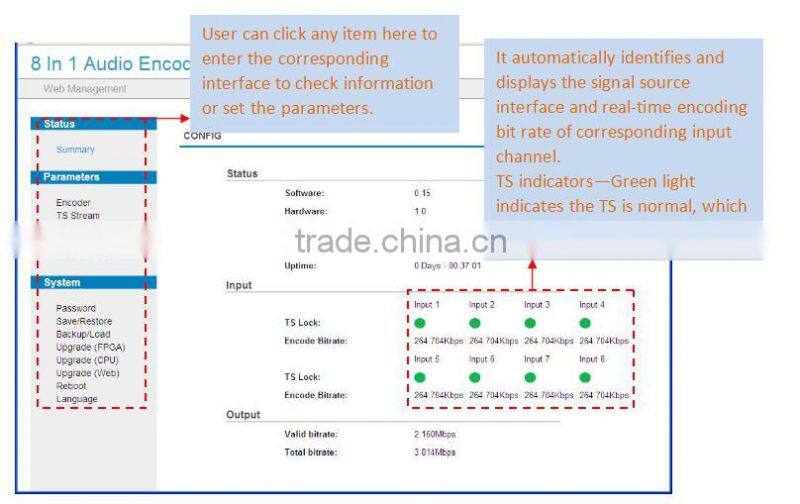

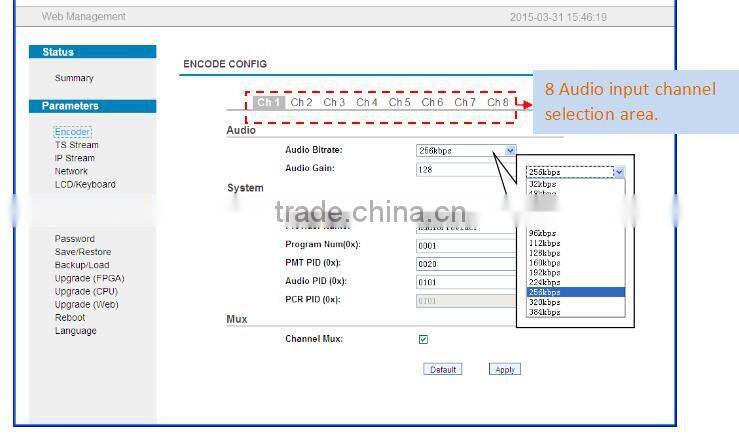

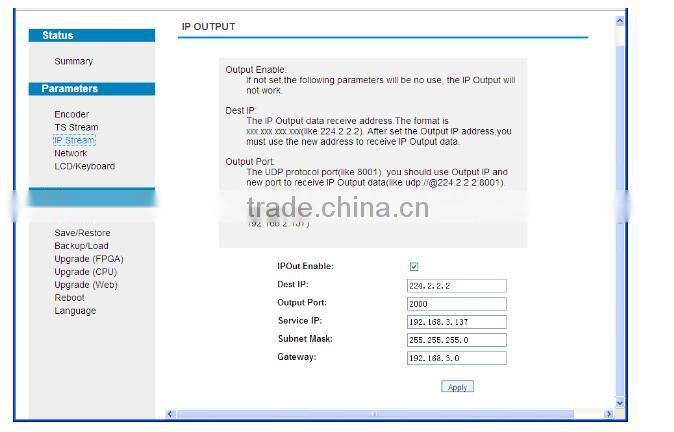

How to operation the encoder and managment page?

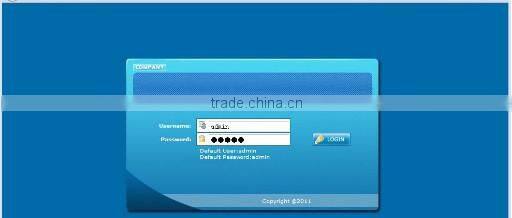

1. By Web managment:
Connect the PC and the device with net cable, and use ping command to confirm they are on the same network segment.
About Shineco company advantage?
Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend
DVB-C/T/T2/S2/IPTV and DSNG system.
we submitted to support our distributors and clients by means of successful experiences and perfect services.
These added values make our products more worthy.
Shineco Team members are kind and warmly enough to help you find the best solution for your project and market,
we work from 9:00 am to 24:00 pm to supply in time service for clients,if you choose us,we believe that we shall achieve
a win-win situation in the future cooperation.
FAQ For Shineco
Q1:Do you support Sample order?
We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement,
sample are not free charge.
Sample delivery will take approximately 1-3 working days after payment received,
bulk order lead time is about 5-15 days based on
your quantity.
Q2:What is your Payment Terms?
We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,
our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.
Q3:Since there are so many company,how I can believe Shineco is the best factory we can cooperation?
1.First of all,our products and accessories have been inspected and tested by 3 times during every production process,
and all products will aging above 15 days before ship out,so excent quality is promised.
2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.
3. We own the best after-sale service, if you face any problem,our team will response within 24 hours,and we can provide remote maintenance
by teamviewer or telephone
Q4:Do you support OEM?
Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.
Q5:How to place the order:
Send your requirement to Nancy email or add her skype: nancydvb for details or invoice.
Encoder support HTTP/RTP/RTMP/UDP/ONVIF series

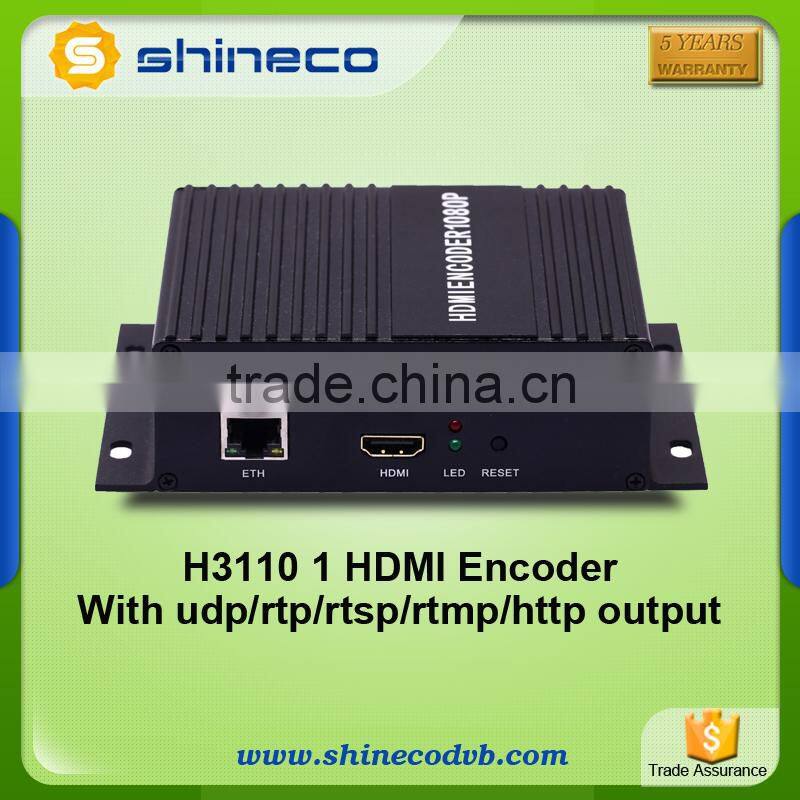

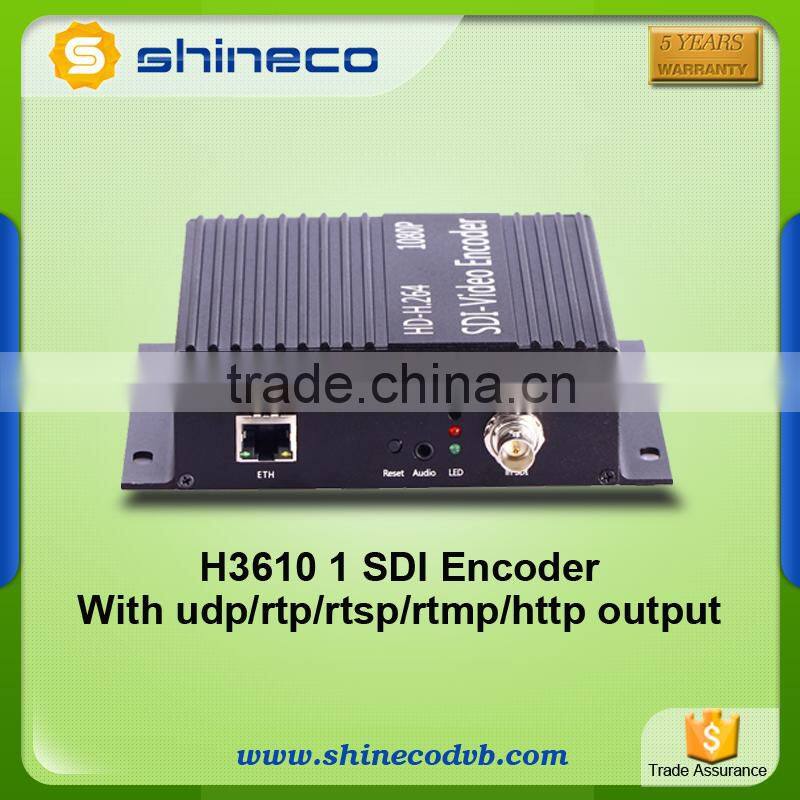

MINI HDMI Encoder MINI SDI Encoder
Encoder with both ASI&IP out,for DVB-C/T2/S2/IPTV Headend

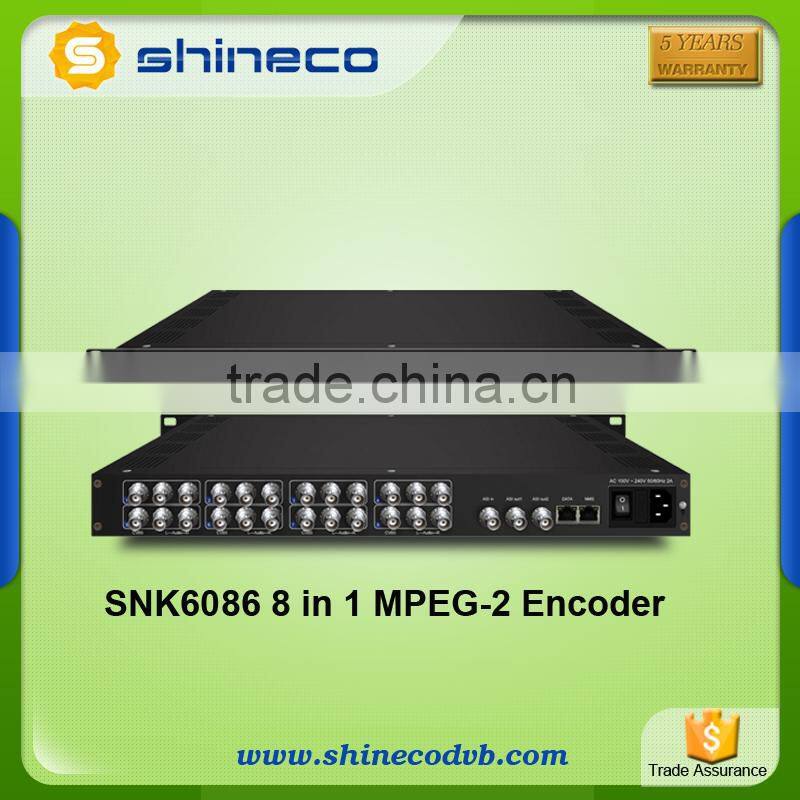

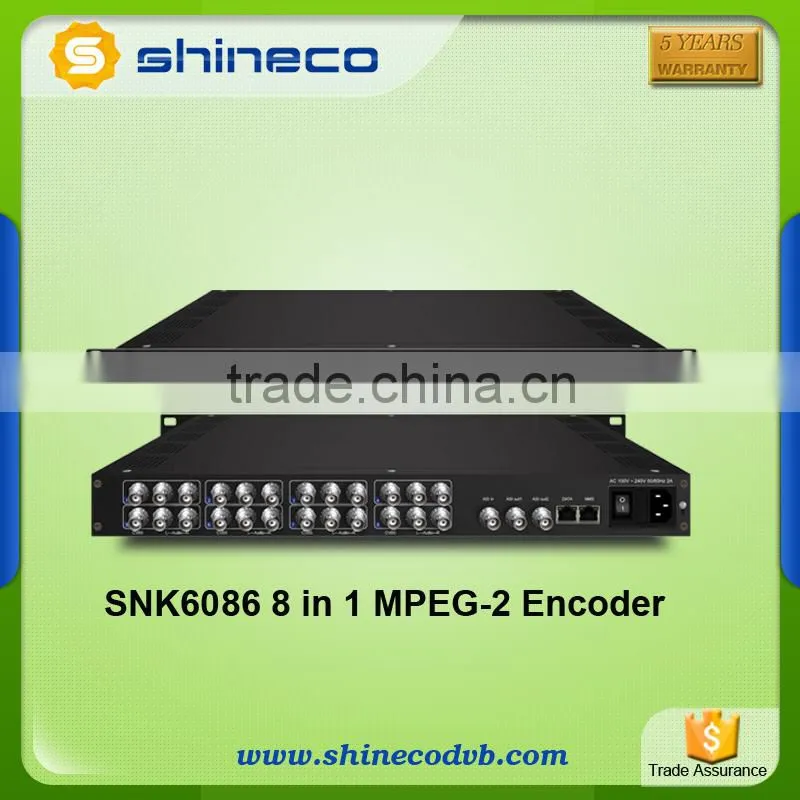

8 in 1 HDMI/SDI MPEG4 Encoder low biterate MPEG2/H.264 Encoder 8 in 1 MPEG2 super Encoder

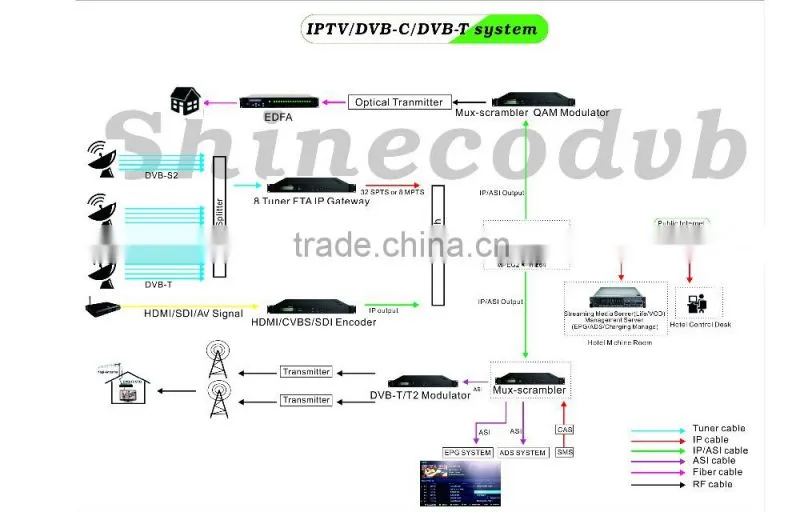

About the Solution and Construction
