Digital DVB-S2 to MPTS IP Gateway
--- Latest Price please add skype: nancydvb
Outline
Shineco Tuner to IP gigabits IP Gateway is a headend interface conversion device which is used for DVB and Ethernet.
It is integrated with tuner demodulation and gateway function, which can demodulate the signal from 8 tuners into TS and packet the TS into IP package, then output the IP package through different IP address and ports. It supports TS over UDP protocol. Furthermore, it can simultaneously convert the signals from 8 channels DVB-S/-S2/-C/-T/ISDB-T/ATSC to TS over UDP and output it.
Key features
- Integrated with demodulation and gateway function
- Support 8 channels tuner(DVB-S/S2/-C/-T/ISDB-T/ATSC optional) input and 8 IP output
- Support MPEG-2 and MPEG-4 TS to IP one way conversion
* Support BISS descrambling(Max up to 512 PID)----For Tuner input
- 1 GE output(support parallel 1 Gbps data output channel)
- Support maximum 8 tuner to IP converting channel, the maximum output bit-rate is 800Mbps
- Support TS over UDP protocol, unicast and multicast
Support 8 MPTS over UDP protocol, unicast and multicast
- Support LCD display and keyboard control
- Support NMS/SNMP/web management
Specification
Interface |
Input |
8 RF & 8 RF loop-out (DVB-S/S2/-C/-T/ISDB-T/ATSC optional) — option 1 |
8 ASI — option 2 | ||
Output |
1 GE output, 8 MPTS over UDP protocol, unicast and Multicast |
|
Transmission Bit-rate |
Maximum total bit-rate is 800Mbps |
|
BISS Mode |
Mode 1, Mode E |
|
General |
Dimension |
482mm×410mm×44mm (WxLxH) |
Weight |
3.6kg |
|
Temperature |
0~45℃(working ),-20~80℃(storage) |
|
Power supply |
100~240VAC,50/60Hz |
|
consumption |
20W |
|

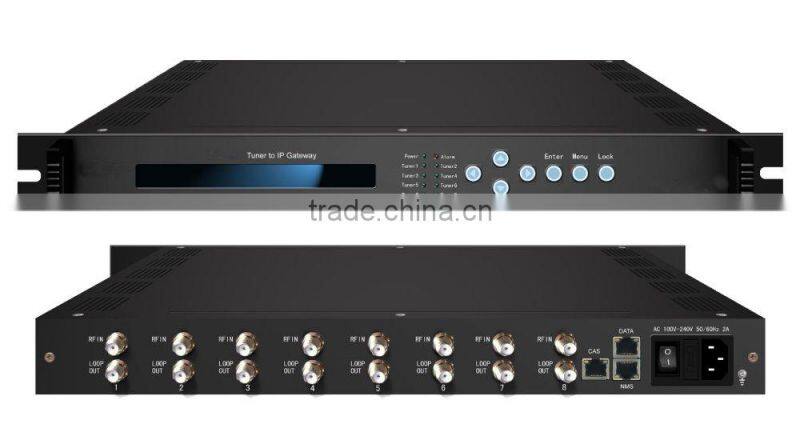

Front and Rear Panel of DVB-S2 IP Gateway
We also have other 8 in 1 DVB-S2/T2/ASI to IP Gateway with 32 SPTS out.

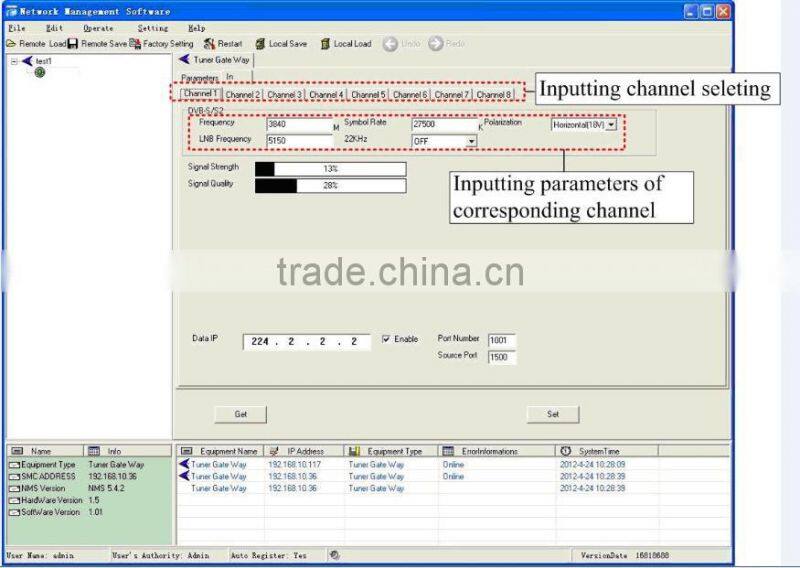

How to operation the encoder and managment page?
you can choose by SNMP software managment:

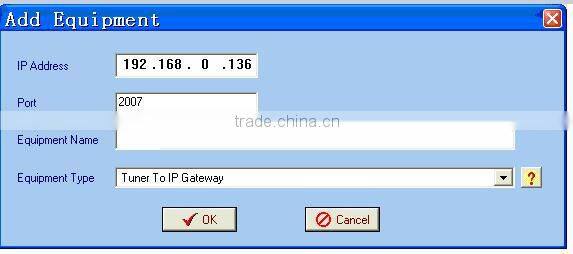

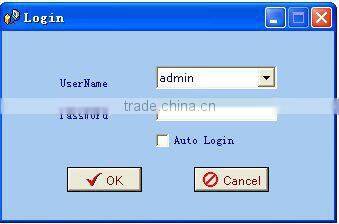

install the SNMP on PC------> Login Interface-------> Adding Frequency Point-----> Add Equipment
About Shineco company advantage?
Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend
DVB-C/T/T2/S2/IPTV and DSNG system.
we submitted to support our distributors and clients by means of successful experiences and perfect services.
These added values make our products more worthy.
Shineco Team members are kind and warmly enough to help you find the best solution for your project and market,
we work from 9:00 am to 24:00 pm to supply in time service for clients,if you choose us,we believe that we shall achieve
a win-win situation in the future cooperation.
FAQ For Shineco
Q1:Do you support Sample order?
We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement, sample are not free charge.
Sample Delivery will take approximately 1-3 working days after payment received,bulk order lead time is about 5-15 days based on your quantity.
Q2:What is your Payment Terms?
We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.
Q3:Since there are so many company in alibaba,how I can believe Shineco is the best factory we can cooperation?
1.First of all,our products and accessories have been inspected and tested by 3 times during every production process,and all products will aging above 15 days before ship out,so excent quality is promised.
2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.
3. We own the best after-sale service, if you face any problem,our team will response within 24 hours,and we can provide remote maintenance by teamviewer or telephone
Q4:Do you support OEM?
Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.
Q5:How to place the order:
Send your requirement to Nancy email or add skype: nancydvb for details or invoice.
About the Packing and Power Plug:
1.By express, DHL/FEDEX/UPS/TNT/EMS for your choose
2.By Air for bulk goods, you pick up at Airport.
About the Solution and Construction
Contact us
| company website | |
| Attn | Nancy Xie |
| nancy"@" | |
| skype ID | nancydvb |
Click here to get the latest Price and Solution.
