Chinese Wholesale Distributors Gigabits IP to ASI Gateway
--- Latest Price please add skype: nancydvb
Outline
Shineco IP to ASI Gigabits gateway is a head-end interface device which is used for DVB ASI and Ethernet . As a kind of IP receiver, this device can recover UDP database received from the transporting device into TS stream and then output it through the ASI output interfaces.
Moreover, it has the function to resist the IP transporting jitter, and to restore the PCR of the TS stream. This device can maximum receive 12 channel IP and output 12 ASI, also, it can simultaneously transmit the 12 IP stream into 12 TS stream.
Key features
- Supports IP to ASI one-way conversion
- Supports double GE ports, and inputs 1Gps data
- Supports UDP, unicast and multicast mode, and 1GMP V2/V3
- Supports 12 ASI output channel, and each channel has two ASI ( the same data) interfaces
- The maximum conversion channel of IP to ASI is 12, and the maximum bit-rate in each channel is 108Mbps, the maximum total bit-rate is 840Mbps
- Supports to eliminate the IP transport jitter, and can correctly restore the PCR of TS stream
- LCD&Keyboard operation; NMS/SNMP management
Specification
Interface |
Input |
Two 1000M network serial input interfaces,RJ45 interface |
Output |
12 ASI output, and each channel has two BNC interfaces |
|
Transfer Protocol |
Input |
TS over UDP,unicast and multicast |
Output |
DVB-ASI |
|
Bit-rate |
Max of each channel is 108Mbps,Max total bit-rate is 840Mbps |
|
General |
Dimension(WxLxH) |
482mm×410mm×44mm |
Weight |
4kg |
|
Temperature |
0~45℃(working ),-20~80℃(storage) |
|
Power supply |
100~240VAC,50/60Hz |
|
Power consumption |
22W |
|

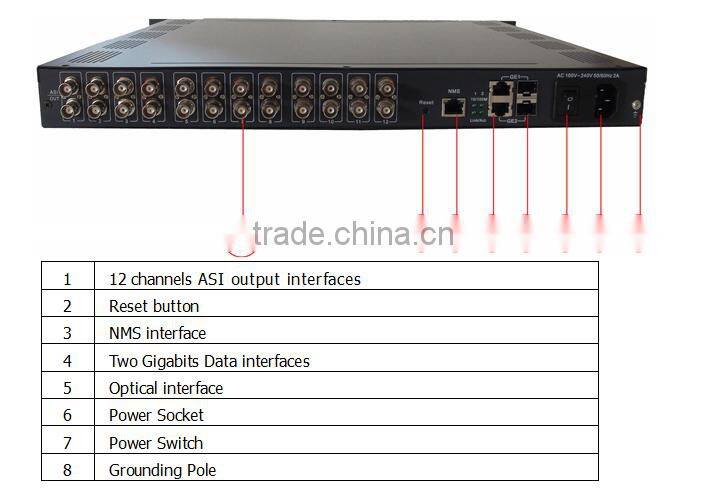

Rear Panel of IP to ASI Gateway
We also have other 8 in 1 DVB-S2/T2/ASI/ATSC-T to IP Gateway with 32 SPTS out.

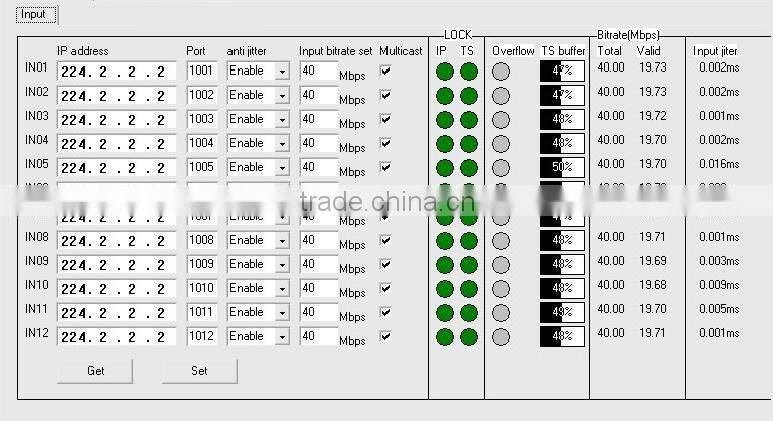

How to operation the encoder and managment page?
you can choose by SNMP software managment:

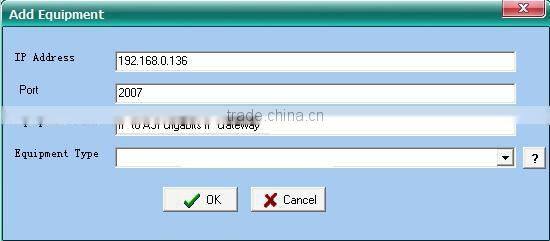

install the SNMP on PC------> Login Interface-------> Adding Frequency Point-----> Add Equipment
About Shineco company advantage?
Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend
DVB-C/T/T2/S2/IPTV and DSNG system.
we submitted to support our distributors and clients by means of successful experiences and perfect services.
These added values make our products more worthy.
Shineco Team members are kind and warmly enough to help you find the best solution for your project and market,
we work from 9:00 am to 24:00 pm to supply in time service for clients,if you choose us,we believe that we shall achieve
a win-win situation in the future cooperation.
FAQ For Shineco
Q1:Do you support Sample order?
We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement, sample are not free charge.
Sample Delivery will take approximately 1-3 working days after payment received,bulk order lead time is about 5-15 days based on your quantity.
Q2:What is your Payment Terms?
We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.
Q3:Since there are so many company in alibaba,how I can believe Shineco is the best factory we can cooperation?
1.First of all,our products and accessories have been inspected and tested by 3 times during every production process,and all products will aging above 15 days before ship out,so excent quality is promised.
2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.
3. We own the best after-sale service, if you face any problem,our team will response within 24 hours,and we can provide remote maintenance by teamviewer or telephone
Q4:Do you support OEM?
Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.
Q5:How to place the order:
Send your requirement to Nancy email or add skype: nancydvb for details or invoice.
About the Packing and Power Plug:
1.By express, DHL/FEDEX/UPS/TNT/EMS for your choose
2.By Air for bulk goods, you pick up at Airport.
About the Solution and Construction
Click here to get the latest Price and Solution.
