2016 Newest and popular 8 FTA Tuner input and 256*SPTS IP output Gateway
Please add Tina skype: shineco.tina for direct discuss and more details
Product Outline

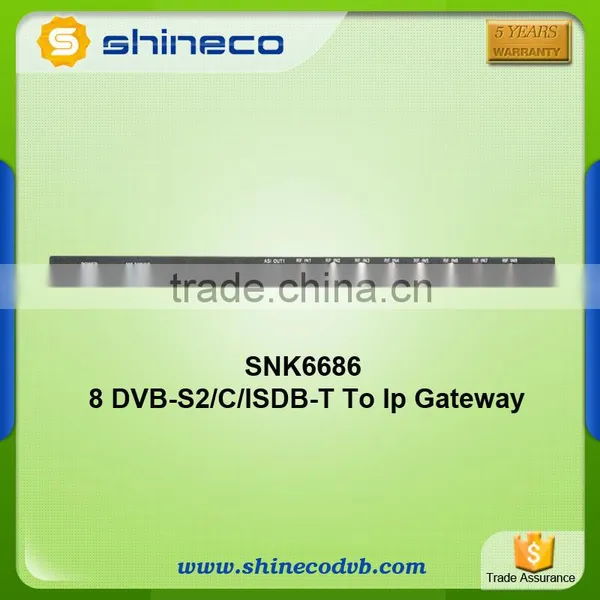

Shineco SNK6686 Receiver is a professional high density receiver, multiplexer and scrambler, and was designed to receive up to eight FTA or BISS encrypted SD and HD broadcast streams from satellite (or cable, terrestrial) network in 1RU.
The features multiple options, high density and superior performance, provides up to five RF demodulation options, including DVB-S/S2 satellite, DVB-C cable, DTMB, ATSC and ISDB-Tb terrestrial input, each option with a maximum eight channels of inputs simultaneously. It deliver quadruple or better system capacity for operators compared with the professional IRD on the market today.
This enables service providers to offers a wide range of highly competitive, high-quality and reliable services to subscribers with a lower total cost of ownership (TCO), It can be widely used in DTV central headend system and remote headend systems.
Main Features
- Up to eight channels of RF demodulation inputs in 1RU
- Multiple RF input options: DVB-S/S2, DVB-C, DTMB, ATSC and ISDB-Tb
- Supports standard DVB-S QPSK, DVB-S2 QPSK, 8PSK demodulation
- Supports optional DVB-S2 16APSK, 32APSK demodulation
- Supports BISS mode 1 decryption option
- Supports TS multiplexing, PID mapping and PSI/SI processing
- Up to four DVB SimulCrypt CAs and DVB-CSA scrambling
- Up to 256 scrambling services/programs
- Supports 100/1000Mbps Ethernet and dual DVB-ASI outputs
- Supports up to 14 MPTS or 256 SPTS outputs over MPEG TS-over-UDP/RTP
- Able to process a maximum of 16 output transport streams and 512 programs
- Easy-to-use Web/SNMP-based management
Technical Specifications
RF Input Options |
|||||
Standard Satellite Input Option |
|||||
Number of Inputs |
8 x L-Band Input (with Loop Out each) |
||||
Connector Type |
F-Type (Female, 75Ω) |
||||
Standards |
DVB-S (EN300421) DVB-S2(EN302307) |
||||
Demodulation |
DVB-S: QPSK DVB-S2: QPSK/8PSK |
||||
Frequency Range |
950MHz to 2150MHz |
||||
Input Signal Level |
-65 to -25dBm |
||||
LNB Power Output |
0V/+DC 13V/18V, Imax=400mA |
||||
DVB-S2 16APSK/32APSK Satellite Input Option |
|||||
Number of Inputs |
8 x L-Band Input (with Loop Out each) |
||||
Connector Type |
F-Type (Female, 75Ω) |
||||
Standards |
DVB-S (EN300421) DVB-S2(EN302307) |
||||
Demodulation |
DVB-S: QPSK DVB-S2: QPSK/8PSK/16APSK/32APSK |
||||
Frequency Range |
950MHz to 2150MHz |
||||
Input Signal Level |
-65 to -25dBm |
||||
LNB Power Output |
0V/+DC 13V/18V, Imax=400mA |
||||
Cable Input Option |
|||||
Number of Inputs |
8 x RF Input (with Loop Out each) |
||||
Connector Type |
F-Type (Female, 75Ω) |
||||
Standards |
DVB-C (EN300429) |
||||
Constellations |
16/32/64/128/256 QAM |
||||
Frequency Range |
50MHz to 860MHz |
||||
Input Signal Level |
-20 to +20dBm (64QAM) |
||||
DTMB Terrestrial Input Option |
|||||
Number of Inputs |
8 x RF Input (with Loop Out each) |
||||
Connector Type |
F-Type (Female, 75Ω) |
||||
Standards |
DTMB (GB20600-2006) |
||||
Constellations |
4QAM, 4QAM-NR, 16/32/64 QAM |
||||
Bandwidth |
6/8 MHz |
||||
Frequency Range |
54 to 860MHz |
||||
Input Signal Level |
>-84dBm |
||||
BISS Decryption Option |
|||||
BISS Modes |
Mode 0, Mode 1 |
||||
Decryption Capability |
Up to 100 Session Words(SWs)/programs |
||||
DVB-ASI Output |
|||||
Numbers of ASI |
2 x ASI Output |
||||
Connector Type |
BNC (Female, 75Ω) |
||||
Data Format |
188/204 Bytes MPEG-TS packet length |
||||
Bit Rate |
1.5 to 100Mbps each |
||||
IP Output | |||||
Numbers of Output |
1 x 100/1000 Base-T Ethernet |
||||
Connector |
RJ-45 |
||||
TS Format |
7 x 188Byte |
||||
IP Encapsulation |
MPEG TS-over-UDP/RTP |
||||
MEPG TS Mode |
MPTS or SPTS |
||||
Number of Output TS |
14 SPTS or 246 MPTS |
||||
Addressing |
Unicast or Multicast |
||||
Supported Protocol |
UDP, RTP, ARP, ICMP, IGMP |
||||
TS Multiplexing |
|||||
Capacity of Multiplexing |
Up to 24 TS and 512 programs |
||||
Operation Mode |
TS Pass through or Multiplexing |
||||
PCR |
Auto correction |
||||
PSI |
PSI auto-generation, manual insertion |
||||
PID |
Remapping, filtering and pass-through |
||||
PSI/SI Standards |
ISO/IEC 13818-1, DVB SI(ESI EN300468) |
||||
Real-time Statistics |
TS rate, program rate, PID rate |
||||
Others |
Smart search of programs |
||||
TS Scrambling Option |
|||||
Capacity of Scrambling |
Up to 256 programs |
||||
Scrambling Algorithm |
Comply with DVB-CSA |
||||
Numbers of CAS |
Up to four DVB SimulCrypt CA(s) |
||||
CAS Interface Protocol |
TCP/UDP (via NM interface) |
||||
EMM Bandwidth |
Up to 3 Mbps |
||||
Scrambling Level |
Program-level |
||||
Network Management |
|||||
Interface |
1 x 10/100 Base-T Ethernet |
||||
Connector |
RJ-45 |
||||
Management |
Web and SNMP |
||||
Miscellaneous |
|||||
Front Panel |
3.5’’ LCD with 6 x Control Buttons for 2-line alphanumeric display and settings |
||||
3 x Dual color LED, for status indications of power, work and Alarm |
|||||
Rear Panel |
1 x Power Supply Receptacle (AC Input) |
||||
1 x Power switch |
|||||
Power Supply |
|||||
Input Voltage |
90 - 250 VAC, 50/60Hz |
||||
Power Consumption |
70W(Maximum) |
||||
Environmental |
|||||
Operating Temperature |
0℃ to 45℃(32℉ to 113℉) |
||||
Storage Temperature |
-20℃ to 80℃(-4℉ to 176℉) |
||||
Operating Humidity |
90%, non-condensing |
||||
Mechanical |
|||||
|
Product Dimensions (W x H x D) |
483mm x 44.5mm x 400mm 19’’ x 1.73’’ (1 RU) x 15.8’’ |
||||
Product Weight |
5Kg (11 lbs) |
||||
Typical Application
How to Manage the equipment in the Web/SNMP page
Click “device setting” in the home page, and then you have the device-setting page, as shown in the figure below
Shineco Company Brief Introduction and Advantage
Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend DVB-C/T/T2/S2/IPTV and DSNG system.
we submitted to support our distributors and clients by means of successful experiences and perfect services. These added values make our products more worthy.
We work from 9:00 am to 24:00 pm to supply timelyservice for clients,if you choose us,we believe that we shall achieve a win-win situation in the future cooperation. All our products enjoy 5 years warantty. Welcome to contact us!
Go Here to Shineco Website Home Page for more Information
16 in 1 RTMP Encoder 8 in 1 HD Encoder MINI HDMI/SDI/HDMI+CVBS Encoder
MPEG-2/H.264 Encoder Modulator Tuner to QAM Modulator HD/SD Encoder Modulator
About Packing and Equipment Power Plug
1. For Sample, you can choose DHL, FEDEX,UPS and EMS.
2. For Bulk Order, you can use Air Transport.
Ordering Information
Model Number |
Descriptions |
SNK6686M |
8 x DVB-S/S2 QPSK/8PSK L-band Satellite input, 2 x ASI Output, 1 x 100/1000Base-T Output |
SNK6686R |
8 x DVB-S/S2 QPSK/8PSK/16APSK/32APSK L-band Satellite input, 2 x ASI Output, 1 x 100/1000Base-T Output |
SNK6686C |
8 x DVB-C Cable RF input, 2 x ASI Output, 1 x 100/1000Base-T Output |
