1.Specifications
1, Material:Pre-treatment material
2, Paint: 70% PVDF from PPG or Valspar;
3.Pretreatment: the raw aluminum has to be washed by acid, and chromized. After it is dried out, it will be covered by oxide film to heighten the adhesion.
4, Colors: Can do as your requirement We are the first one to pass CTC of national testing certification center of building materials.
5. Good quality for Benting:
6. Polyester coating ingle coating, one layer, 18μm; double coating, two layers, 25~27μm. PVDF coating: two layers of PVDF coating, at least 25μm, and if required, it will be covered by another layer of varnish, 35μm in total.
product |
thickness |
alloy |
temper |
|
aluminiumcoil,foil,strip, ,circle |
0.006mm-200mm |
1070 1060 1050 1100 1200 3003 8011 3005 5005 3105 |
H18 H26 H14 H24 H22 O |
Substrates: |
Aluminium (1100, 3003, 3004, 3105, 5006, 5052, 8011, etc), etc. |
Thickness: |
0.08-1.5mm |
Width: |
<1800mm |
Coils core diameter: |
150mm ,405mm, 505mm, 508mm, 510mm |
Coating thickness: |
PVDF >=25micron POLYESTER>=18micron |
Color standard: |
E < 2 or it is not obvious by eyeballing |
Pencil hardness: |
> 2HB |
Coating adhesive: |
not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993) |
Bend stength: |
>100 times |
Boiling point: |
no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
Corrosive: |
surface deep in the 5% muriatic acid and 5% NaCL, interior deepin the 2% muriatic acid and 2% NaCL, after 48 hours, no change |
Aluminum coil |
|
|||
Alloy |
Thickness(mm) |
Width(mm) |
Temper |
DC or CC |
1050,1060,1070,1100,1235,1145 |
0.2-4.0 |
20-1500 |
O,H12,H22,H14,H24,H16,H26,H18 |
DC, CC |
4.0-12.0 |
1000-1900 |
H111,H112 |
DC |
|
3003,3004,3105 |
0.2-4.0 |
20-1500 |
O,H12,H22,H14,H24,H16,H26,H18 |
DC, CC |
4.0-12.0 |
1000-1900 |
H111,H112 |
DC |
|
5052,5083,5754,5005 |
0.2-4.0 |
20-1500 |
O,H12,H22,H14,H24,H16,H26,H18 |
DC |
4.0-12.0 |
1000-1900 |
H111,H112 |
DC |
|
8011 |
0.0065-0.2 |
20-1200 |
O,H22 |
DC,CC |
ID |
505mm,75mm,150mm etc. |
|||
|
|
|
||
|
|
|||
Application |
Mainly in printing(PS plate base), Aluminum-plastic composite panel base, construction, decoration, capacitor, cover material, deep drawing products, refrigeration, air conditioner, automobile etc. |
|||
MOQ |
5mt |
|||
Contact Person |
Name: Ms Serena Guo |
|||
Mobile: +86 18301953841 | ||||
Office Tel: +86 021 67652881 | ||||
2.Full of set of process.
Professional slitting line,to divide the coil into any width ,with accuracy +-0.02mm;
Professional cutting line,to make sheet with any length;
Embossed line could process aluminum coil with max thickness (1.0mm of A5754H24);
Brushing line,to make the coil brushed as required;
Full-set processing for food-grade aluminum coil and sheet.
3.Usage of the aluminum coil.
What use for please confirm with me!

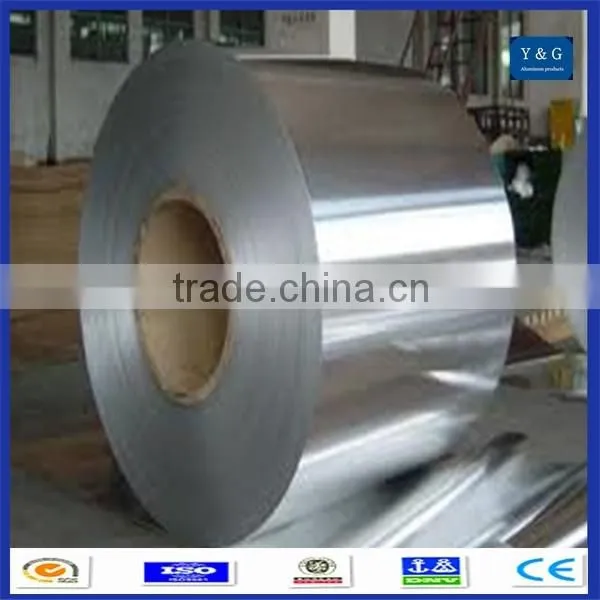

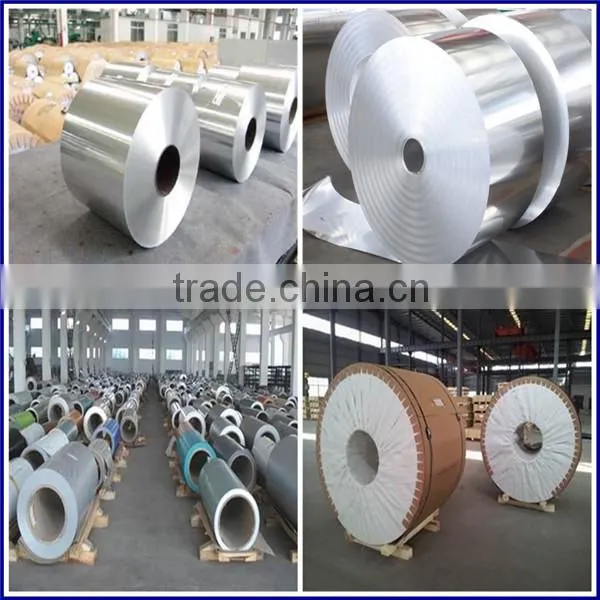

4.Photo of product
5.Photo of equipment
