Product Details
Place of Origin: | Sichuan, China | Brand Name: | Shineco | Model Number: | SNK6281A |
Product Description

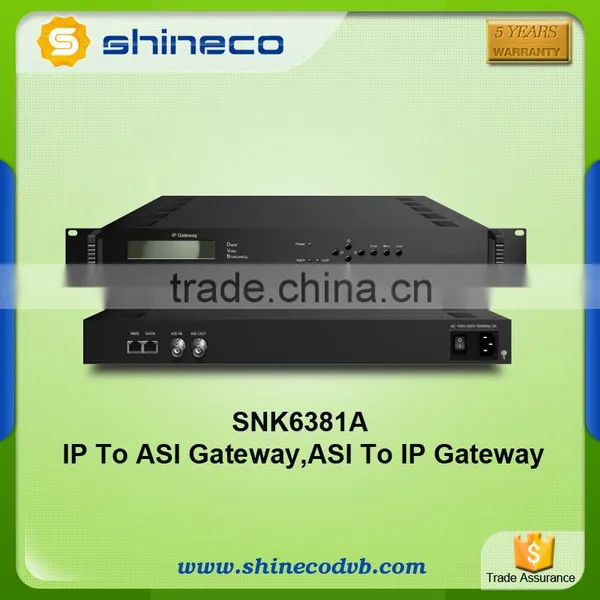

IP To ASI Converter/Gateway
Add Jacky skype to talk details:Jacky.shineco
Outline
SNK6281A Bidirectional IP Gateway is a head-end interface device which is used for DVB and Ethernet. It can be used both for a receiver and a lancers! On one hand, in the lancers part, this machine can be used for sending IP stream, turning the TS stream into IP Stream. On the other hand, in the receive part; this machine can be used for receiving IP stream, turning the IP stream into TS stream.
Key Features
* Support PCR adjusting
* Transparent transmission without ATM adapting process, directly mapping IP frame, through the network, with 100Mbps interface to transmission
* Alarm display
* IP frame structure, complies ITU G. 752, ITU-T G.804 standard
* IP signal physical interface complies ITU-TG.703 standard;
* Two-way operation, IP Stream is 80.000Mbps.
* LCD/Key board or Web page based NMS management
Specifications
ASI to IP | Input | 1 ASI input (BNC) |
Output | 1 IP over UDP output (RJ 45) | |
IP to ASI | Input | 1 IP over UDP input (RJ 45) |
Output | 1 ASI output (BNC) | |
NMS port | To connect PC and device management; To output IP signal (multicast only) | |
DATA port | To input/output IP (unicast/multicast )signal; Used as NMS port and auto generate IP address | |
General | Management | LCD/Key board; Web NMS |
Dimension | 44mm*482mm*433mm | |
Environment | 0-45℃ (Working) ; -20~80℃ (Storage) | |
Power supply | 220V AC±10%, 50Hz 25W |
