Product Details
Place of Origin: | Sichuan, China | Brand Name: | Shineco | Model Number: | SNK6326 |
Product Description
8 Audio Video RF Modulator
Add Jakcy Skype To Talk Details:Jacky.shineco
Product Overview

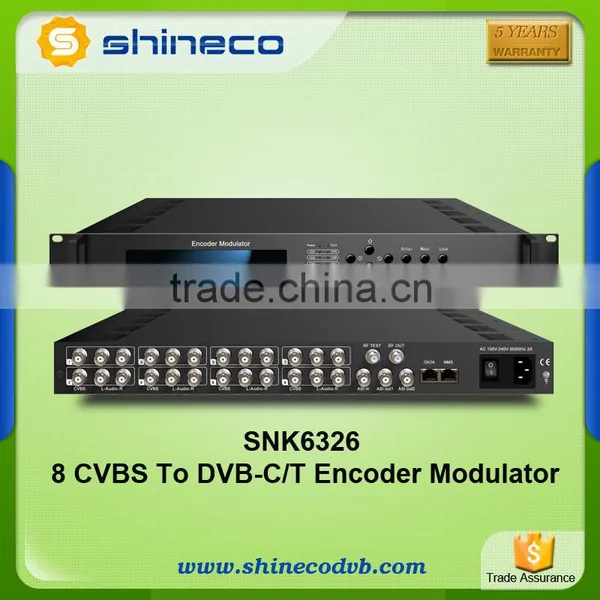

SNK6326C 8 in 1 Encoder/Modulator is an all-in-one device integrated encoding, demodulation, multiplexing and modulation functions in one standard 1U case. It can convert 8 CVBS signals and 1 ASI input (DVB-C Tuner input optional) to DVB-C RF out in the frequency range of 30~999MHz. It is also equipped with 2 ASI ports and IP port to output TS in MPTS & 8* SPTS.
The signals source could be from satellite receivers, closed-circuit television cameras and etc. its output signal is to be received by DVB-C standard TVs or DVB-C STBs.
The device can be used in public place such as metro, market hall, theatre, hotels, resorts, etc for advertising. It also can be used for monitoring, training and educating in company, schools, campuses, hospital.
Key Features
* Support 8CVBS+1 ASI Input + DVB-C Tuner input (optional)
* H.264 and Mpeg2 video encoding
* MPEG1 Audio Layer 2, LC-AAC and HE-AAC (V2) audio encoding
* Support PSI/SI editing and inserting
* Support accurate PCR adjusting
* Support PID filtering, re-mapping
* Supports VBR/CBR video encoding
* Supports ultra low bit rate encoding
* Applicable for one Seg utilization
* 1*DVB-C RF output
* Supports MPTS & 8 SPTS IP over UDP output
* Supports IP null packet filter
* LCD / keyboard and web NMS operation
* Update device through web NMS port
Principle Chart
Specifications
Input | 8 CVBS, BNC interface | |||||
8 pairs of unbalanced stereo audio, BNC interface | ||||||
1 ASI input, BNC interface | ||||||
1 Tuner input (Optional) | ||||||
Video | Resolution | PAL:720*576/352*288/320*240/320*180/176*144/ 160*120/160*90,50Hz | ||||
NTSC: 720*480/352*288/320*240/320*180/176*144/ 160*120/160*90,59.94Hz | ||||||
Encoding | MPEG-2 / H.264 | |||||
Bit-rate | 0.25~6Mbps | |||||
Rate Control | CBR/VBR | |||||
Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening | |||||
Audio | Encoding | MPEG1 Audio Layer 2, LC-AAC, HE-AAC V2 | ||||
Sampling rate | 48KHz | |||||
Bit-rate | 48Kb/s~384Kb/s for MPEG1 Audio Layer 2 48Kb/s, 56Kb/s, 64Kb/s, 80Kb/s, 96Kb/s for HE/LC-AAC V2 | |||||
Multiplexing | 1 ASI and tuner input multiplexed with local 8 channels of TS | |||||
PID re-mapping | ||||||
PCR accurate adjusting | ||||||
Automatic generating PSI/SI table | ||||||
DVB-C Tuner Section (Optional) | Standard | J.83A, J.83B, J.83C | ||||
RF frequency | 30~1000MHz, 1KHz step | |||||
J.83A | Constellation | 16/32/64/128/256QAM | ||||
Symbol rate | 5.0 - 9.0 Msps | |||||
J.83B | Constellation | 64QAM | 256QAM | |||
Symbol rate | 5.057Msps | 5.361Msps | ||||
J.83C | Constellation | 64QAM, 256QAM | ||||
Symbol rate | 5.0 - 9.0 Msps | |||||
Modulator Section
| Standard | J.83A, J.83B, J.83C | ||||
MER | ≥42dB | |||||
RF frequency | 30~999MHz, 1KHz step | |||||
RF output level | -30.0~ 10.0 dbm (77~97 dbµV), 0.1db step | |||||
Symbol rate | 5.0 - 9.0 Msps | |||||
J.83A | Constellation | 16/32/64/128/256QAM | ||||
Symbol rate | 5.0 - 9.0 Msps | |||||
bandwidth | 8M | |||||
J.83B | Constellation | 64QAM | 256QAM | |||
Symbol rate | 5.057Msps | 5.361Msps | ||||
bandwidth | 6M | |||||
J.83C | Constellation | 64QAM, 256QAM | ||||
Symbol rate | 5.0 - 9.0 Msps | |||||
Bandwidth | 6M | |||||
Stream output | 2*ASI output, BNC interface | |||||
MPTS & 8 SPTS over UDP, 10/100Base-T Ethernet interface (UDP unicast / multicast) | ||||||
System function | LCD/keyboard operating, web NMS supporting | |||||
Ethernet software & hardware upgrade | ||||||
Miscellaneous | Dimension (W× L× H) | 482mm×455mm×44mm | ||||
Approx weight | 4kg | |||||
Temperature | 0~45℃(work), -20~80℃(Storage) | |||||
Power | AC 100V-220V±10%, 50/60Hz | |||||
Consumption | 25W | |||||
Advantage
Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend
DVB-C/T/T2/S2/IPTV and DSNG system.
we submitted to support our distributors and clients by means of successful experiences and perfect services.
These added values make our products more worthy.
Shineco Team members are kindly and warmly enough to help you find the best solution for your project and market,
we work from 9:00 am to 24:00 pm to supply in time service for clients,if you choose us,we believe that we shall achieve
a win-win situation in the future cooperation.
Q1:Do you support Sample order?
We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement,
sample are not free charge.
Sample delivery will take approximately 1-3 working days after payment received,
bulk order lead time is about 5-15 days based on
your quantity.
Q2:What is your Payment Terms?
We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,
our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.
Q3:Since there are so many company,how I can believe Shineco is the best factory we can cooperation?
1.First of all,our products and accessories have been inspected and tested by 3 times during every production process,
and all products will aging above 15 days before ship out,so excent quality is promised.
2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.
3. We own the best after-sale service, if you face any problem,our team will response within 24 hours,and we can
provide remote maintenance by teamviewer or telephone
Q4:Do you support OEM?
Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.
Q5:How to place the order:
Send your requirement to Jacky email or add skype:Jacky.shineco for details or invoice.
About the Packing and Power Plug:
1.By express, DHL/FEDEX/UPS/TNT/EMS for your choose
2.By Air for bulk goods, you pick up at Airport.
