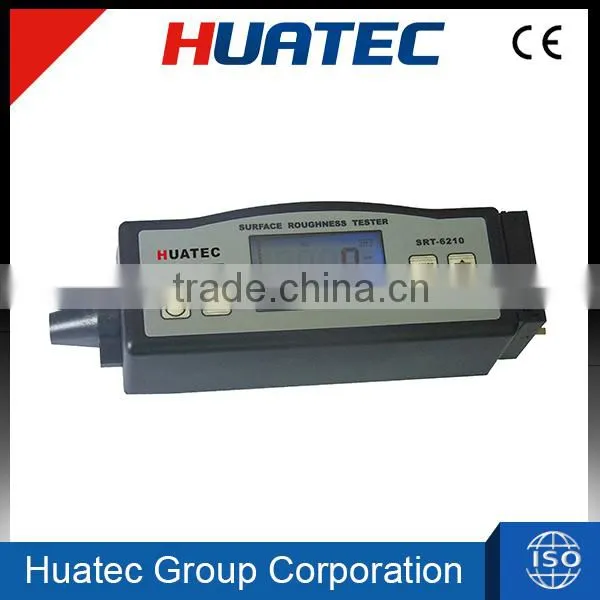

SRT6210 HUATEC Digital Portable Surface Roughness Tester

SRT6210 HUATEC Digital Portable Surface Roughness Tester thumbnail-1
SRT6210 HUATEC Digital Portable Surface Roughness Tester thumbnail-2
SRT6210 HUATEC Digital Portable Surface Roughness Tester photo-1
SRT6210 HUATEC Digital Portable Surface Roughness Tester photo-2
US$ 600 - 700 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
HUATEC
Model Number:
SRT6210
Contact Supplier Request Quote Chat Now
Huatec Group Corporation
Payment & Shipping
Payment Methods:
Port of Shipment:
beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name HUATEC
Model Number SRT6210
Power Electronic
Usage Universal Testing Machine

SRT6210 HUATEC Digital portable Surface Roughness Tester



1. SRT6210 HUATEC Digital portable Surface Roughness Tester Features:



This instrument is compatible with four standards of site to measure surface roughness of various machinery-processed parts, calculate corresponding and clearly display all measurement parameters.



When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism by the sharp built-in probe.



This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier.



The exclusive DSP processes and calculates and then outputs the measurement results on LCD.



* Multiple parameter measurement: Ra, Rz, Rq, Rt



* Highly sophisticated inductance sensor



* Four wave filtering methods : RC, PC-RC, GAUSS and D-P



* Built-in lithium ion rechargeable battery and control circuit with high capacity



* Small in size, light in weight and easy to use



* Can communicate with PC computer for statistics, printing and analyzing by the optional cable and the software for RS232C interface.



*Manual or automatic shut down. The tester can be switched off  by pressing  the Power key at any time. On the other hand, the tester will power itself off about 5 minutes after the last  key operation.



*The tester can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.



*Metric /Imperial Conversion





2. SRT6210 HUATEC Digital portable Surface Roughness Tester Specifications:



Display 4 digits, 10 mm LCD, with blue backlight



Parameters:  Ra, Rz, Rq, Rt



Measuring Range



           Ra, Rq:  0.005-16.00um/0.020-629.9uinch



           Rz,Rt:   0.020-160.0um/0.078-6299uinch



Accuracy: Not more than 10%



Fluctuation of display value: Not more than 6%



Sensor :

         Test Principle: Inductance type



         Radius of Probe Pin: 5µm



         Material of Probe Pin: Diamond



         Dynamo-measurement of Probe: 4mN(0.4gf)



         Probe Angle: 90º



         Vertical Radius of Guiding Head: 48mm



Maximum driving stroke:  17.5mm/0.7inch



Cutoff length (l): 0.25mm / 0.8mm / 2.5mm  optional



Evaluation length:  1-5L



Driving speed:



         sampling length = 0.25mm  Vt=0.135mm/s



         sampling length = 0.8mm    Vt=0.5mm/s



         sampling length = 2.5mm    Vt=1mm/s



         returning                             Vt=1mm/s



Profile digital filter



         Filtered Profile:            RC



         Filtered Profile:            PC-RC



         Filtered Profile:            Gauss



         Non-Filtered Profile:    D-P



Resolution :



Evaluation length :      5 cut-off



Power Li-ion battery:   rechargeable



Operating conditions:  Temp. 0~50



                                    Humidity <80%



Size                          140x57x48 mm  (5.5x2.2x1.9 inch)



Weight:                       about 420 g

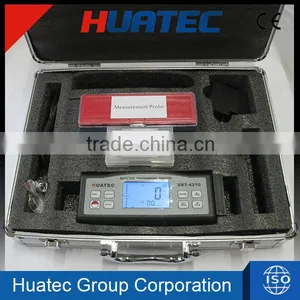

3.   SRT6210 HUATEC Digital portable Surface Roughness Tester Standard Delivery:


Main Unit                       1


Carrying Case               1


Standard Sensor           1


Standard Sample Plate  1


Power Adapter              1


Operation Manual          1


Screwdriver                    1


Adjustable Leg               1


Sensor Protector            1

4. SRT6210 HUATEC Digital portable Surface Roughness Tester  Optional Accessories:


Cable and Software for RS-232


Extension Rod


Measurement Support



Special pick-up for grooves,bores and holes
