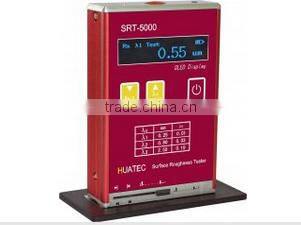

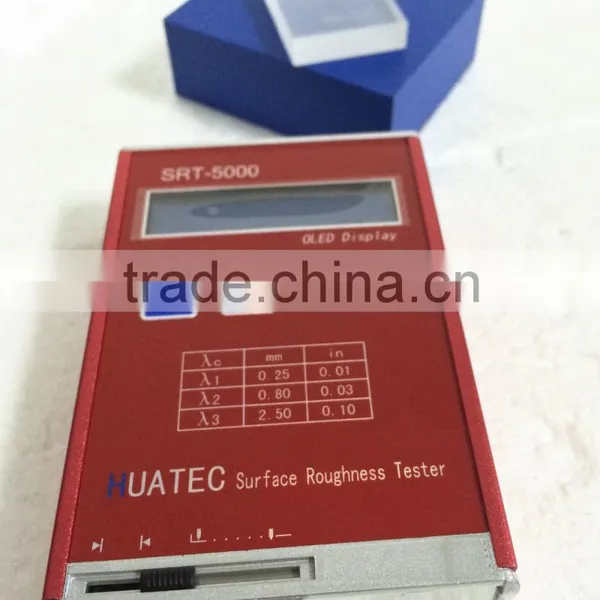

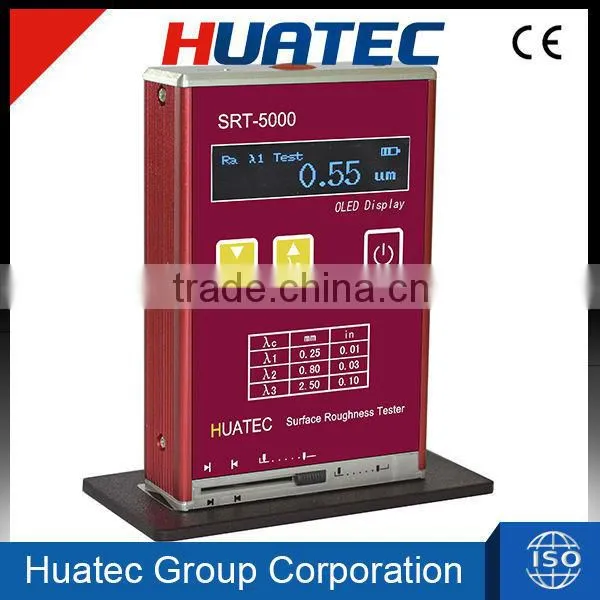

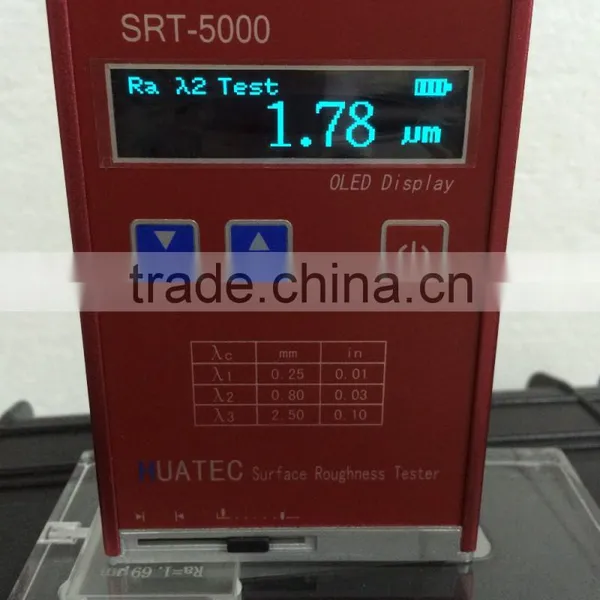

SRT-5000 CE ISO certificate Ra Rz Rq Rt digital roughness surface tester
Features:
1)Appearance using pull aluminum mould design, durable, anti-electromagnetism
interference ability significant, accord with current design new trend.
2) By using high-speed DSP processors for the data processing and calculation,
measuring and calculation speed is greatly improved.
3) Liquid crystal adopts popular OLED display, high brightness, no perspective, wide
temperature.It is suitable for various applications.
4) Using lithium ion rechargeable batteries, it can work long hours with no memory effect.It
also can work with charging .Charging time is short, while the battery life is long.

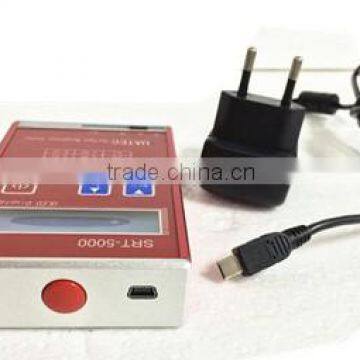

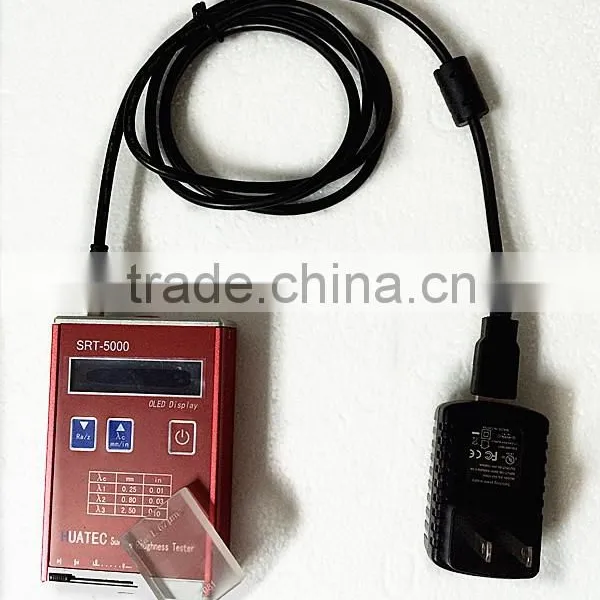

5) Use the common USB interface to charge and communication .Use special charger
or the computer USB port of chargeIt’s convenient and quick.
6) Dot matrix LCD display, interface message is rich.
7) Real-time monitoring of lithium battery power and display, electric charge and timely
remind users.
8) Automatic shutdown function, low power consumption and hardware design make
instrument working hours exceeds. It is suitable for all kinds of field use.
9) The sensors head has the protect door, which protect the head of the sensors
effectively. Guarantee the accuracy of measurement.
SPECIFICATIONS:
Measurement Parameters(µm) |
Ra Rz Rq Rt |
Stroke Length(mm) |
6 |
Sampling Length(mm) |
0.25 ,0.80 ,2.50 |
Evaluation Length(mm) |
1.25 ,4.0 |
Measurement Range(µm ) |
Ra: 0.05 ~ 10.0 Rz: 0.1 ~ 50 |
Error of Indication: |
±15% |
Varation of Indication: |
<12% |
|
Touch needle tip arc radius and angle of the sensor |
Tip arc radius:10 µm±1 µm Angle:90 |
|
The sensor touch needle static force measurement and its rate |
Touch needle static force measurement: ≤ 0.016N |
Force measurement rate: |
≤ 800N/m |
Sensor guide head pressure: |
≤ 0.5N |
Battery: |
3.7V Lithium Ion battery |
Contour Dimension: |
106 mm×70 mm×24 mm |
Weight: |
200g |
|
Working Environment Conditions
|
Temperature: -20°C~40°C Relative Humidity: < 90% Surrounding no vibration and no corrosive medium. |

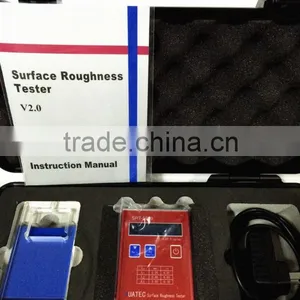

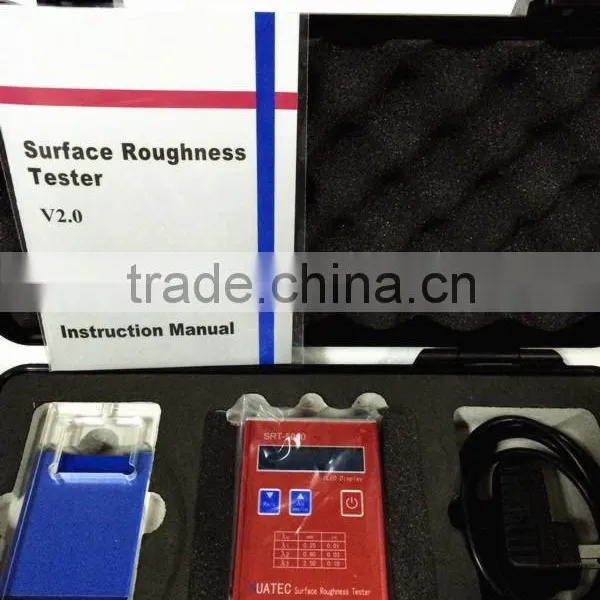

Standard Accessories:
Main unit……………. ..1pc.
Carrying case…………1 pc.
Operation manual…….1 pc.
Standard sample plate 1 pc
Product certificate 1 pc
