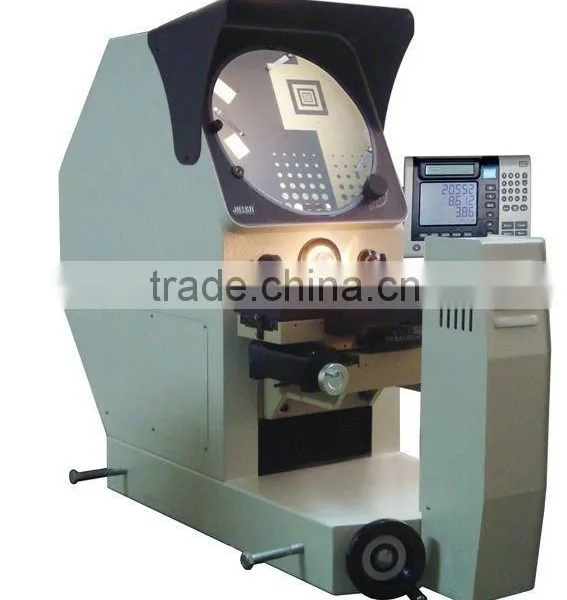

Digital Horizontal Profile Projector HHB12-2010
300mm diameter screen
Applied-fields
HHB12 is widely used for quality checking, researching and developing at the field of mechanic, electronic, rubber industry. It is a necessary instrument for 2D non-contact dimension measurement in college, research institute and metrology department. HHB12 is able to inspect all kinds of surface and outline of complicated work-pieces such as Template, Pressing work-pieces, Cam, Screw thread, Gear, etc.
Characteristics
300mm diameter screen with digital protractor;
Workstage sway range between±15°;
200x100mm precision movement workstage;
Halogen profile and surface illumination;
Geometric multifunction data processing system;
Available mini-printer,rotary table foot-switch
Technical Specifications
Specifications |
Model |
HHB12-2010 |
Worktable |
Metal table size |
408 x 126mm |
X-axis travel |
200mm |
|
Z-axis travel |
100mm |
|
Y-axis travel |
90mm (For Focusing) |
|
X, Z linear resolution |
0.0005mm |
|
Sway range |
±15° |
|
Accuracy |
≤(4+L/25)um |
|
Screen |
Screen diameter |
Φ308 mm |
Rotary range |
0~ 360° |
|
Resolution of encoder |
1′or 0.01° |
|
Digital readout |
DP100 multifunction data processing system |
|
Illumination |
Contour illumination: 24V/150W (Halogen Lamp) |
|
Surface illumination: 21V/150W(Optical Fiber) | ||
Power supply |
AC110V/60Hz; 220V/50Hz, 400W |
|
Gross/Net Weight |
200/160Kg |
|
Dimension(LxWxH) |
1160 x 600 x960mm |
|
Packing dimension |
1300 x 880 x1250mm |
|
Optional Accessories |
Optional Accessories |
Optional Accessories |
Measuring Software |
HHB12-20x Objective |
Holder Clamp |
Foot-Switch ST150 |
HHB12-20x Objective |
V-shape Clamp |
Digital Readout DP300 |
HHB12-20x Objective |
Swivel center Support |
Edge Detector SED300 |
Over-Chart St140 |
Working Cupboard ST02 |
