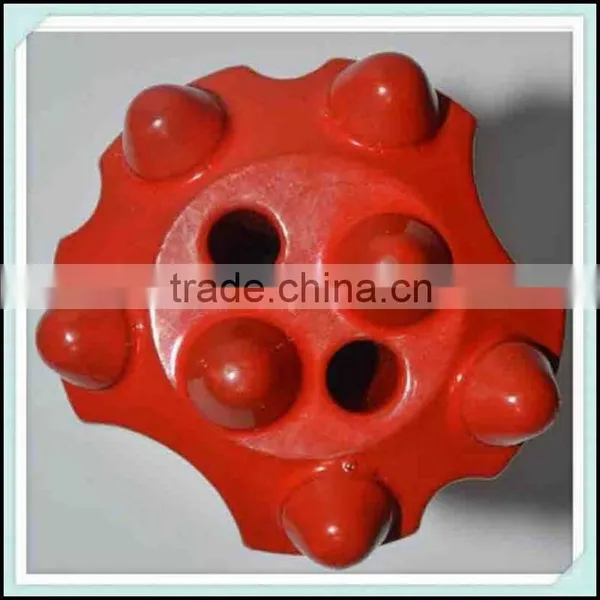

Drill Bits for Metal

Drill Bits for Metal thumbnail-1
Drill Bits for Metal photo-1
US$ 10 - 120 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
zhaoxing
Model Number:
t38 t45 t51
Contact Supplier Request Quote Chat Now
Xiamen Zhaoxing Machinery & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name zhaoxing
Model Number t38 t45 t51
Type Center Drill Bit
Material Tungsten Carbide
Use Metal Drilling

Specifications

drill bits for metal
1. Steel Carbide
2.16 years experience
3.Widely used for mining
4.Atlas quality

 Product Information

drill bits for metal



  According to different drilling application, we have different design to meet customers with good quality and competitive price .

1 Type
drill bits for metal
2 Material Steel + Carbide
3 Application Mining, Quarrying, Ground engineering
4 Advantage Quality closed to Atlas, and competitive price
5 Button bit face shape design Concave face, Convex face, Double gauge face, Flat face
6 Carbide button shape design Domed/Round button,Parabolic/Semi-Ballistic Buttons, Ballistic Button, Sharp Button, Flat Button
7 Certificate ISO9001
8 Package Inner package with cartons,outer package with wooden case
9 Delivery 7-15days after receive your payment
10 Payment Terms T/T Western Union MoneyGram
11 MOQ 20 pcs/size

 Product Catalogue

The technical parameter of Normal-drill bits for metal
Thread Type dia tip size(mm) flushing holes weight (kg)
mm gauge front side front
R22 R25 R28 SR28 32 3*8 1*8 1 1 0.3
33 5*8 2*7 2 1 0.3
35 5*8 2*7 2 1 0.4
38 5*8 2*8 2 1 0.5
38 5*9 2*7 2 1 0.5
41 5*9 2*8 2 1 0.6
42 5*9 2*8 2 1 0.6
43 5*9 2*9 2 1 0.6
43 5*9 2*8 2 1 0.6
45 5*9 2*9 2 1 0.7
48 5*10 2*9 2 1 0.78
51 5*11 2*10 2 1 1.1
57 5*12 2*10 2 1 1.3
R32 41 4*9 2*8 1 1 0.54
43 4*9 2*9 1 1 0.55
45 4*10 2*9 1 1 0.6
T38 57 5*11 3*10 1 1 1.6
64 5*12 3*11 1 1 1.6
76 5*14 3*12 1 2 2.4
T45 70 6*11 4*10 0 2 2.4
76 6*13 4*10 0 2 2.6
89 8*12 5*12 2 2 4.5
102 8*13 6*12 2 2 5
115 8*14 6*13 2 2 6.8
T51 89 8*12 5*12 2 2 4.9
102 8*13 6*12 2 2 5.8
115 8*14 6*13 2 2 6.8
127 8*14 6*14 2 2 7.5



 drill bits for metaldrill bits for metal

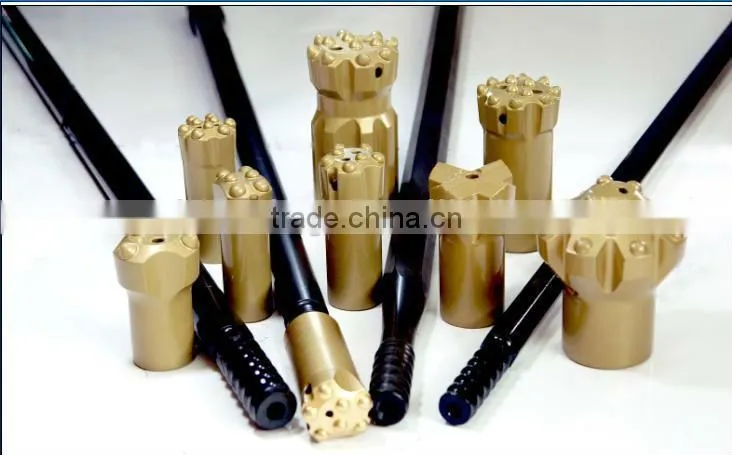

 drill bits for metal-different selections

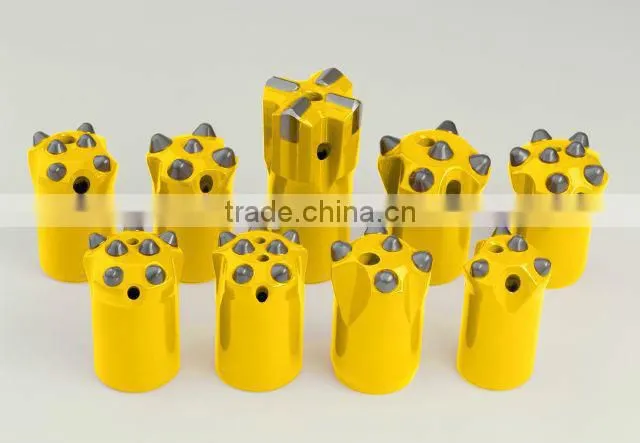

carbide button shape selection
drill bits for metal
Domed/Round Button
Domed /Round Buttons are usually used as gauge buttons of DTH Bits. suitable for very abrasive and very hard formations.
drill bits for metal
Parabolic/Semi- Ballistic Buttons
Parabolic Buttons are usually used as gauge buttons and front buttons of DTH Bits, suitable for medium abrasive and hard formations.
drill bits for metal
Ballistic Button
Ballistic Buttons are usually used as front buttons of DTH Bits,suitable for medium abrasive and medium hard formations. They can also be used as gauge buttons if the rock is soft.
drill bits for metal
Sharp Button
Sharp Buttons are usually used as front buttons of DTH bits for soft formations where fast penetration rates are possible and



drill bits for metal





Zhaoxing can help you to improve drilling efficiency and reduce the production cost.



1. Over 17 years practical drilling experience



2.Sold hundreds of drilling rig and air compressor



3. Continue to supply original spare parts and drilling tools



4. Provide professional drilling technical support





Related Products

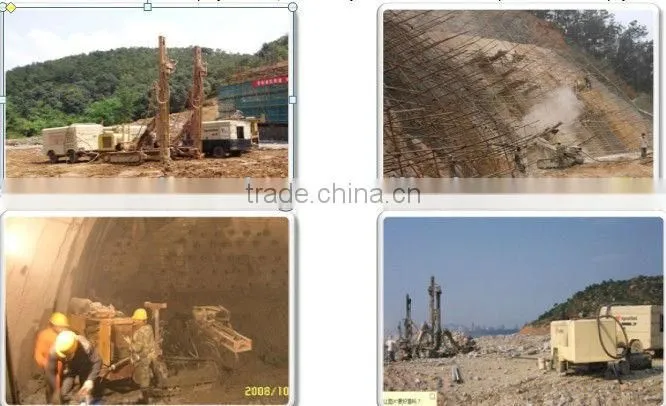

Our Engineering Experience

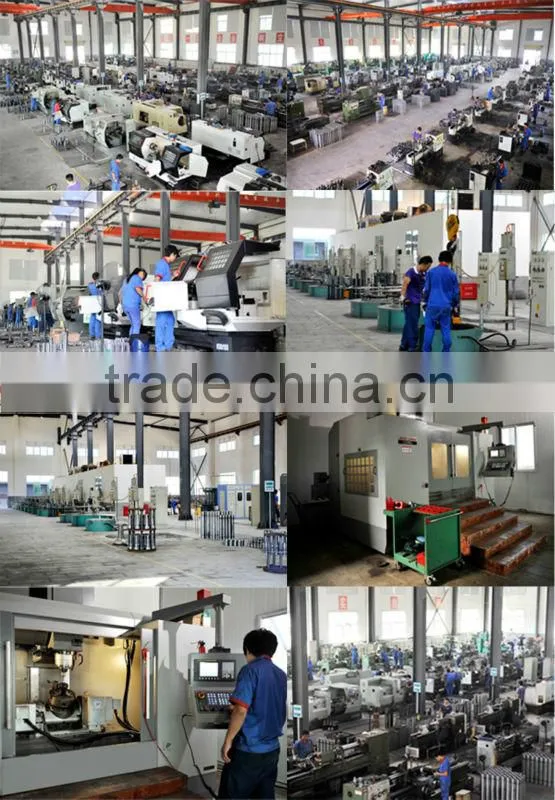

Prodution Process

drill bits for metal

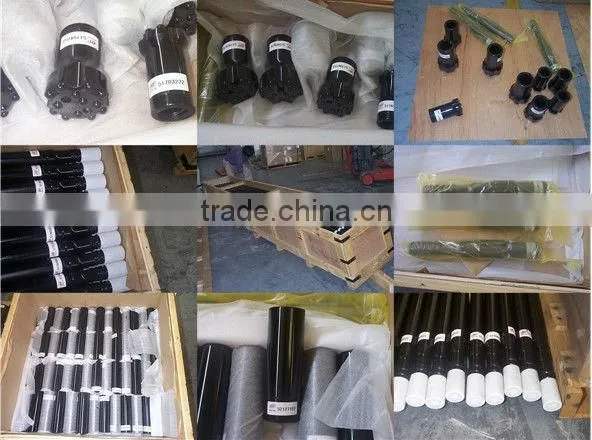

Packing Process



Our Certificate



 drill bits for metal
