led wall light 36w 220v 120x30 1200*300 led panel light

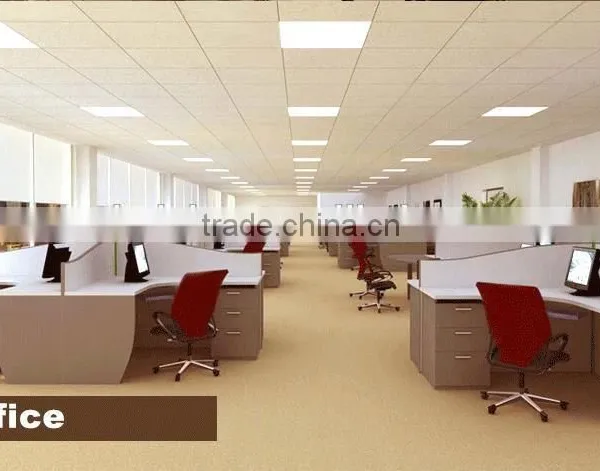

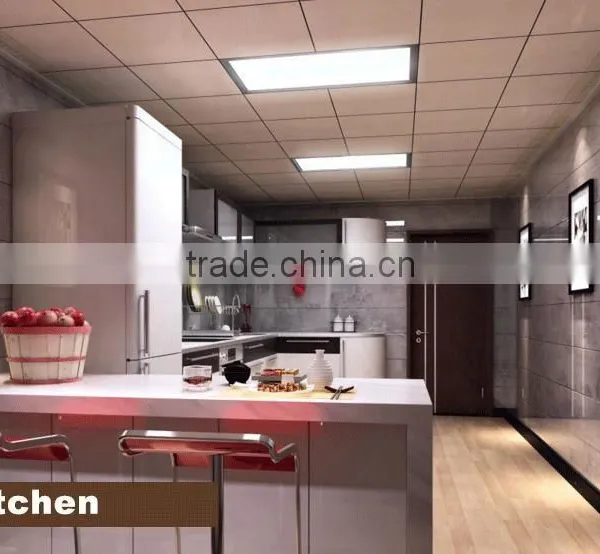

Product Applications
LED Panel Light Specification
| Technical Characteristic Description | |||
| Input voltage | 85-264VAC | Material | PMMA/AL |
| Input power | 36W | LED type | 120leds SAMSUNG5630 |
| CCT | 3000K,4000K,6000K | diffuser | imported from MITSUBISHI |
| Lumens | 2800LM--3200LM | Dimension | 296X1196X12 mm |
| Illuminance/1m | 680LUX--760LUX | View angle | 120Degree |
| PFC | >90% | Weight | 6.5Kg/ 7.3Kg |
| CRI | 70-80 | Packing | 1320*650*250mm /5pcs/39Kg |
| Equivalent | 350W incandescent | 20 container | 192 carton |
| Span life | 50000hours | 40 container | 384carton |
| Warranty time | 3 years | ||
More Size & Power:
30*30CM 12W/25W
30*60CM 25W
30*120CM 40W/50W
60*60CM 40W/50W
60*120CM 75W

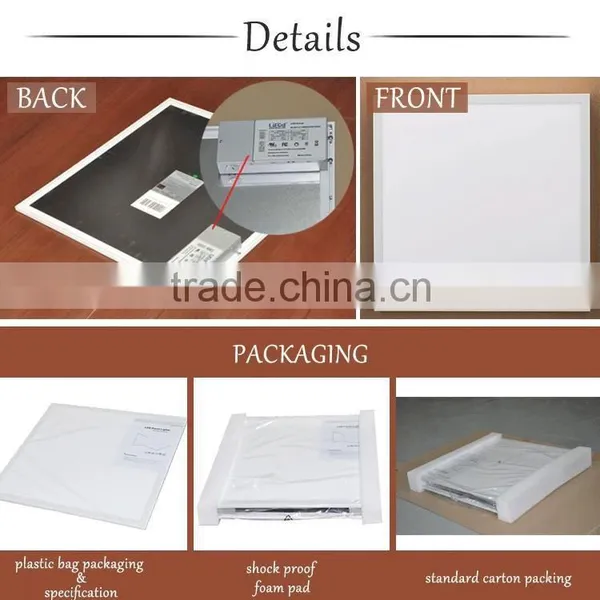

Detailed Images
Advantages
1. Driver protected by junction box, fixed on the back of panel, more secure and stable.
2. Stable driver with UL/cUL, famous brand LED with LM-80 report, 3-5 years warranty.
3. Approved by DLC /UL.For UL, please link to for DLC,link to
4. Screw nuts embedded in the back plate, achieves all kinds of feasible installation methods.
5. Adopting whole back plate to achieve heat dissipation, larger heat dissipation area than dissipate by frame.
6. Outperforms fluorescent lighting,outstanding energy savings,zero maintenance, no need to relamp.
Dimension
Shipping from Los Angels , USA
From our Los Angels warehouse, it will take about 3-5 days to West Coast and 5-7 days to East Cost. No Need lead time, immediately shipping after payment is confirmed.
Ledsion Lighting was 8 Years LED lighting factory.
Our main products for American Market:
DLC ETL/CETL LED Canopy light
DLC ETL/CETL LED Wallpack light
DLC ETL/CETL LED Shoebox light
DLC ETL/CETL LED Highbay light
DLC ETL/CETL LED Street light
DLC ETL/CETL LED Flood light
DLC ETL/CETL LED Tube T8
DLC ETL/CETL Ballast compatible T8 LED Tube
Energy Star UL Commercial Downlight
UL Emergency Battery
DLC UL LED Panel Light
Manufacturer Selling & Advanced Euipments
