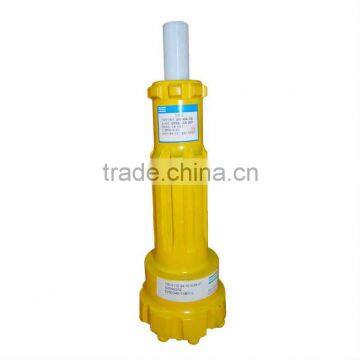

Atlas Drilling Machine Accessories

Name: Atlas Drilling Machine Accessories
Brand: ZHAOXING
SKU: 111216141
Availability: InStock

Atlas Drilling Machine Accessories thumbnail-1

Atlas Drilling Machine Accessories photo-1

US$ 100 - 300 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

ZHAOXING

Model Number:

DHD350 COP54 QL50

Contact Supplier Request Quote Chat Now

Xiamen Zhaoxing Machinery & Electric Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name ZHAOXING

Model Number DHD350 COP54 QL50

Type Drill Bit

Machine Type Other, Drilling Equipment, Drilling Equipment

Certification Other, ISO9001:2008, ISO9001:2008

Material Carbide

Processing Type Other, Forging, Forging

Use Ore Mining

Specifications

drill hammer bit
1. Steel Carbide
2.16 years experience
3.Widely used for mining
4.Atlas quality

Product Information

atlas drilling machine accessories - drill bit

According to different drilling application, we have different design to meet customers with good quality and good price .

1	Type	drilling machine accessories
2	Material	Steel + Carbide
3	Application	Mining, Quarrying, Ground engineering
4	Advantage	Quality closed to Atlas, and competitive price
5	Button bit face shape design	Concave face, Convex face, Double gauge face, Flat face
6	Carbide button shape design	Domed/Round button,Parabolic/Semi-Ballistic Buttons, Ballistic Button, Sharp Button, Flat Button
7	Certificate	ISO9001
8	Package	Inner package with cartons,outer package with wooden case
9	Delivery	7-15 days after receive your payment
10	Payment Terms	T/T Western Union MoneyGram
11	MOQ	5 pcs/size

Product Catalogue

Drill bit	Bit Dia. (mm)	Air Holes No.	Gauge Buttons	Front Buttons	Part No.
Drill bit	Bit Dia. (mm)	Air Holes No.	Gauge Buttons	Front Buttons	Part No.
HD55(DHD350R,COP54)	133	2	7*Φ16	6*Φ14	HD55-130
	140	2	7*Φ18	7*Φ14	HD55-140
	146	2	8*Φ18	7*Φ14	HD55-146
	152	2	8*Φ18	8*Φ14	HD55-152
	165	2	8*Φ18	8*Φ16	HD55-165

SD5	133	2	7*Φ16	6*Φ14	SD5-130
	140	2	7*Φ18	7*Φ14	SD5-140
	146	2	8*Φ18	7*Φ14	SD5-146
	152	2	8*Φ18	8*Φ14	SD5-152
	165	2	8*Φ18	8*Φ16	SD5-165

atlas drilling machine accessories - different selection

Bit Face Shape Selection

Drop Center Bit

For high penetration rates in soft to medium hard and fissured rock formatios Low to medium air pressures. Maximum hole deviation control.

Concave Face

the all-round application bit face specifically for medium hard and homogenerous rock formations Good hole deviation control and good fIushing capacity

Convex Face

For hiigh penetration ratas m soft to medium-hard wlth low to medium air pressures It is the most rasistance to steel wash. and many reduce the load and wear on the gauge buttons. but
poor hole deviation control.

Double Gauge Face

This kind face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high aii pressures and good resistance to steel wash step gauge bit.

Flat Face Bit

This kind of face shape is suitable for hard to very hard and abrasive rock formations in appllications with high air pressure. Good penetration rates an resistance to steel wash.

carbide button shape selection

Domed/Round Button

Domed /Round Buttons are usually used as gauge buttons of DTH Bits. suitable for very abrasive and very hard formations.

Parabolic/Semi- Ballistic Buttons

Parabolic Buttons are usually used as gauge buttons and front buttons of DTH Bits, suitable for medium abrasive and hard formations.

Ballistic Button

Ballistic Buttons are usually used as front buttons of DTH Bits,suitable for medium abrasive and medium hard formations. They can also be used as gauge buttons if the rock is soft.

Sharp Button

Sharp Buttons are usually used as front buttons of DTH bits for soft formations where fast penetration rates are possible and

Flat Button

Flat buttons are usually used as protection buttons to reduce Near on rubbing surfaces of DTH Bits.

Related Products

Our Engineering Experience

Packing Process

Our Certificate

Our Contact Information

Xiamen Zhaoxing Machinery & Electric Equipment Co., Ltd is professional and specialized in High air pressure down the hole drill hammer bit , Middle Air Pressure DTH Hammers, High Air Pressure DTH Hammers, Big Hole DTH Hammers, Reverse Circulation Hammers, Down The Hole Bits, Overburden Dirllng, Hole Opener Bits, Deep hole dril .
