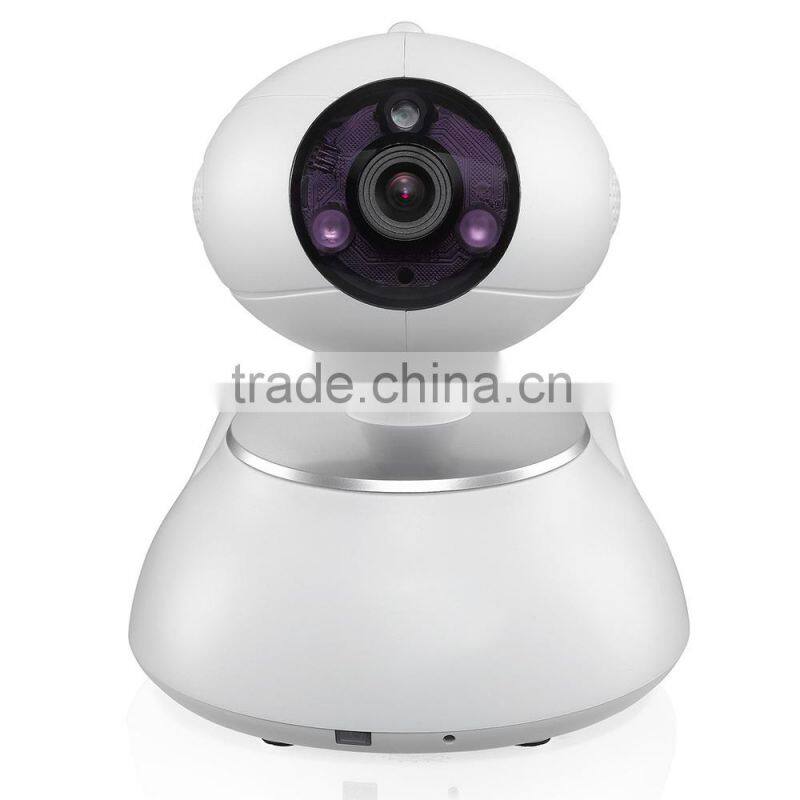

Smart 720P HD Network IP Camera WIFI Alarm System With Instant Video Alarm and Live Monitoring

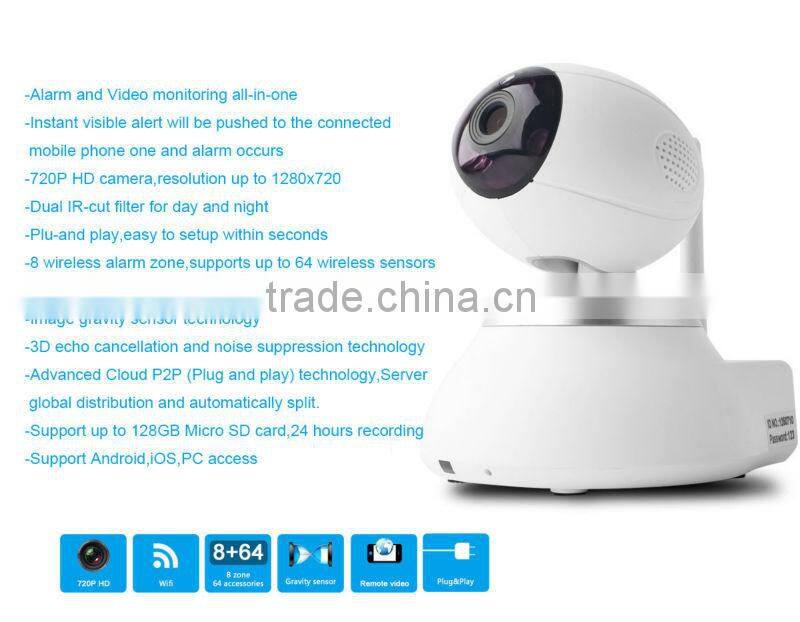

-Alarm and Video monitoring all-in-one
-Instant visible alert will be pushed to the connected mobile phone one and alarm occurs

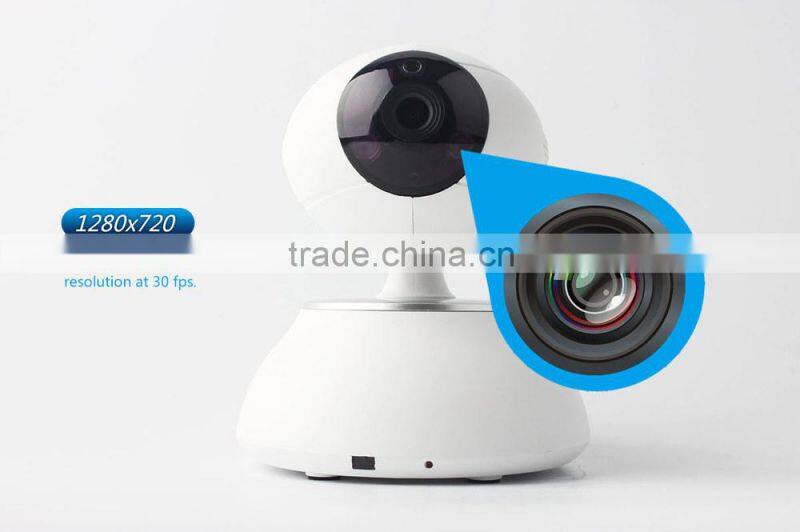

-720P HD camera,resolution up to 1280x720
-Dual IR-cut filter for day and night
-Pan&Tilt,Horizontal 355 degree ,vertical 120 degree
-Plu-and play,easy to setup within seconds

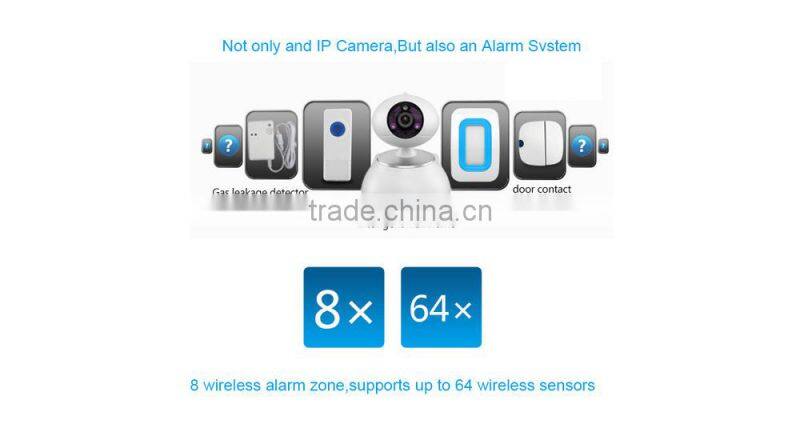

-8 wireless alarm zone,supports up to 64 wireless sensors

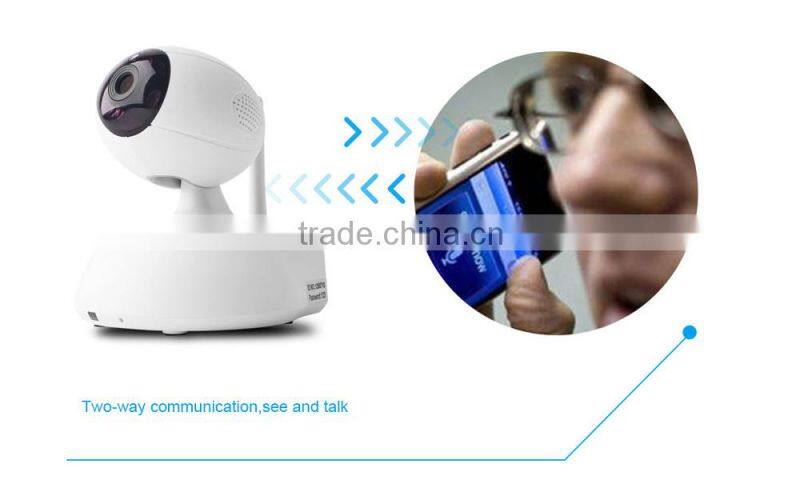

-Two-way communication,see and talk.

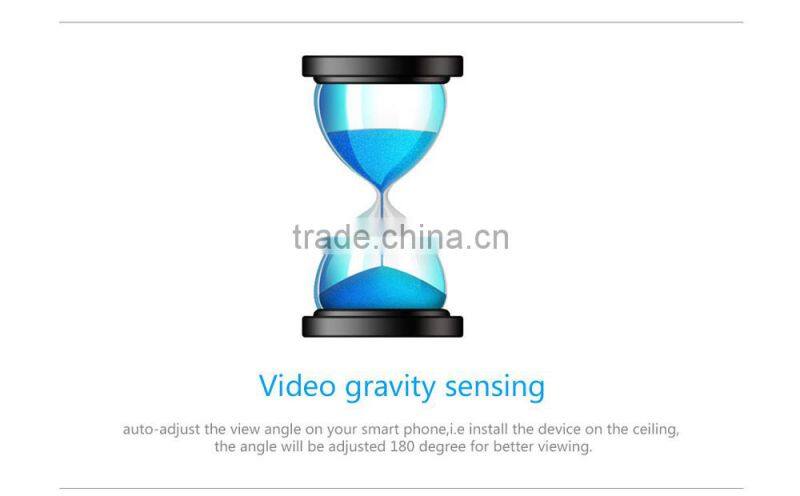

-Image gravity sensor technology
-3D echo cancellation and noise suppression technology
-Advanced Cloud P2P (Plug and play) technology,Server global distribution and automatically split.
-Support up to 128GB Micro SD card,24 hours recording
Model |
HD901 |
|
Video |
Video Compression |
H.264 |
Image Sensor |
1.0MP HD CMOS Sensor |
|
SoC |
HI3518E |
|
Image |
720P HD images, resolution up to 1280X720,1.0MP |
|
Image Resolution |
720P(1280*720),VGA(640*480), QVGA(320*240)SS |
|
Frame Rate |
1~30fps |
|
Min. Illumination |
Color: 1.5 Lux; W/B: 0 Lux with IR |
|
IR Distance |
Dual IR cut filter with auto switch,2pcs high-power LED, night vision 7 meter |
|
S/N Ratio |
≥38dB |
|
CMOS Features |
Support AWB,AGC,BLC |
|
Lens |
3.6mm |
|
System |
Security |
Account, password user authentication |
Adaptive dynamic IP domain name system(Free) |
No need domain name, support dynamic IP, no application of “peanut shells”, completely solve the problem of frequently dropped calls, connection with high speed |
|
Mobile phone monitor |
Support megapixel HD mobile phone monitor, dedicated IPHONE software, Android software(Software version required IOS4.3,Android 2.3 and above) |
|
On-board storage |

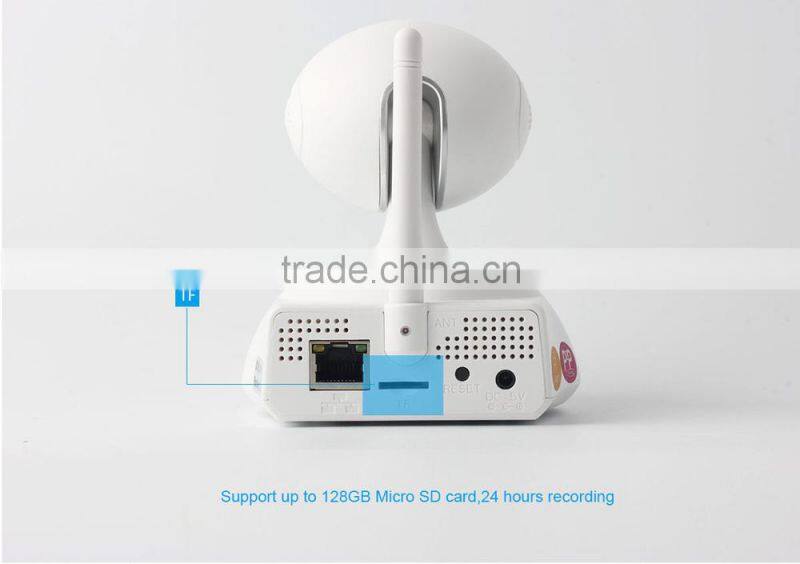

Support external 128GB Micro SD card,24 hours recording |
|
Plug and Play |

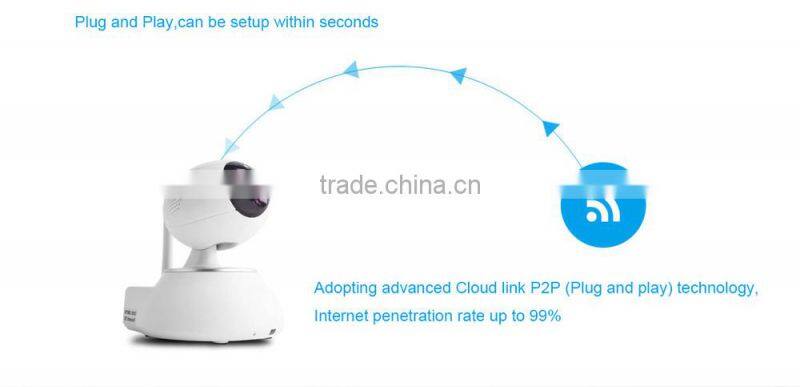

Adopting advanced Cloud link P2P (Plug and play) technology, Internet penetration rate up to 99%,applicable to all kinds of complex networks, installation takes only three steps: 1. Connecting power supply and network, 2. Installing mobile phone software; 3. Viewing CCTV images. |
|
Server Clusters |
P2P intelligent clusters of servers throughout the world, protect the |
|
Audio |
Audio Compression: |
G.711A |
Audio Input |
1CH built-in 38dB microphone |
|
Audio Output |
Built-in speaker(8Ω2W) |
|

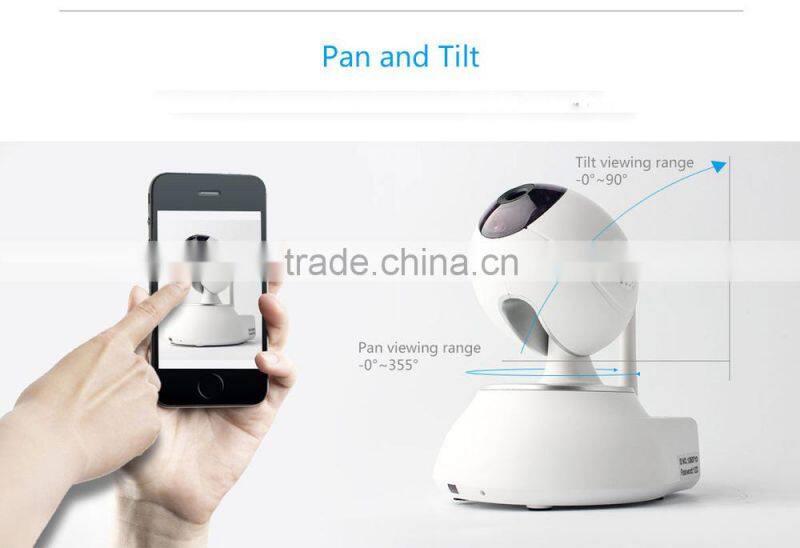

PTZ Control |
Pan&Tilt |
Horizontal 355 degree ,vertical 120 degree |
Video |
Recording Mode |
Manual recording, timing recording and alarm recording |
Video Storage |
TF Card up to 128G |
|
Network |
Ethernet |
10Base -T, /100Base-TX, RJ45 Connector |
Protocols |
TCP/IP,HTTP,TCP,UDP,SMTP, DHCP,DNS,DDNS,NTP,UPnP,P2P etc |
|
Wireless |
WiFi 802.11b/g/n wireless network |
|
Alarm |
Alarm Input |
Wireless sensors |

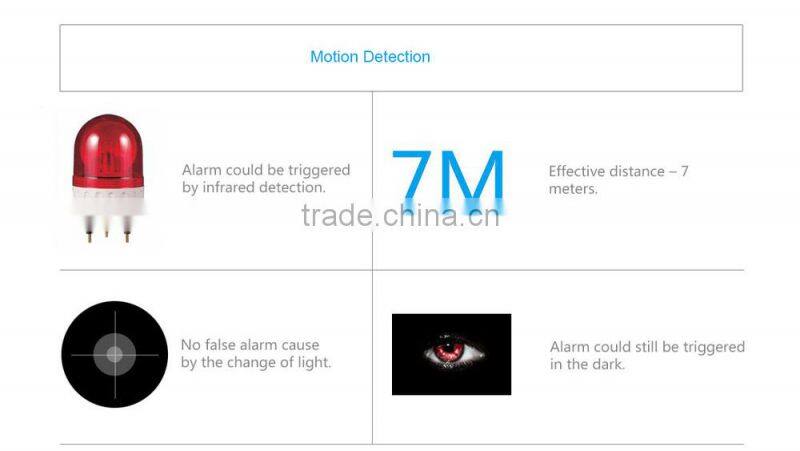

Motion Detection |
Support |
|
Alarm Detection |
Max. 64ch wireless alarm sensor, support one key defense setting and delete |
|
Alarm Action 1 |
Built-in siren sound and make call to 5 different mobile phones |
|
Alarm Action 2 |
Capture photos and send by E-mail |
|
System |
System Configuration |
Software version IOS4.3,Android 2.3 and above |
General |
Material |
Engineering plastics |
Working Environment |
Indoor |
|
Power Supply |
DC5V 2A |
|
Working Temperature |
-10~50 degree |
|
Working Humidity |
95% RH |
|
Dimensions |
104*102*117mm(L*W*H) |
|
Weight |
N.W:310g/pcs,G.W:750g/pcs,9kg/1CTN,10pcs/1CTN |
|
Standard Accessories |
Power adaptor, CD, Manual Instruction and Operation guide |
|
Optional |
Wireless door contact and Controller |
|
Installation Method |
Mounted on bracket or Flat type |
|
