Specifications
Box Type Air Cooled Condensing Unit:1.Copeland, Tecumseh, Bitzer Compressor
2.3HP,CE,CRAA,ISO
3.R404A,R22
Low Noise Box Type Air Cooled Condensing Units for Industry Air Conditioners

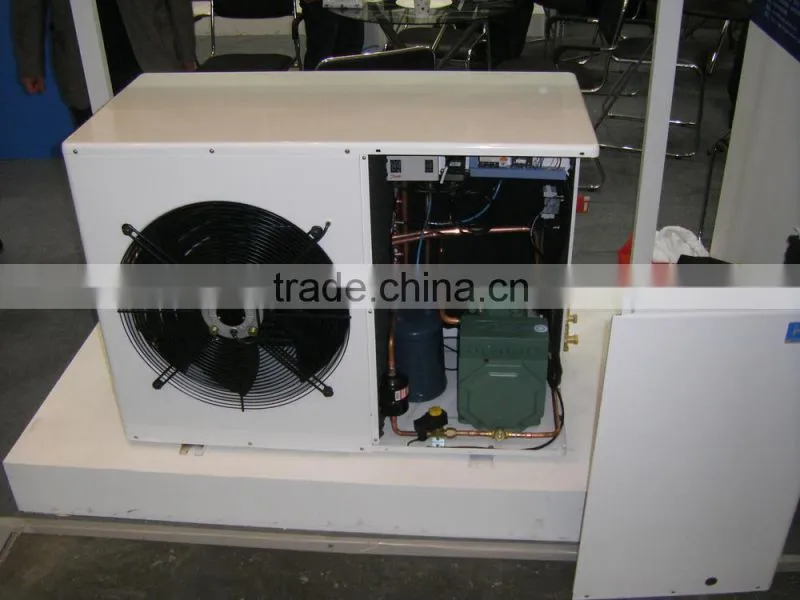

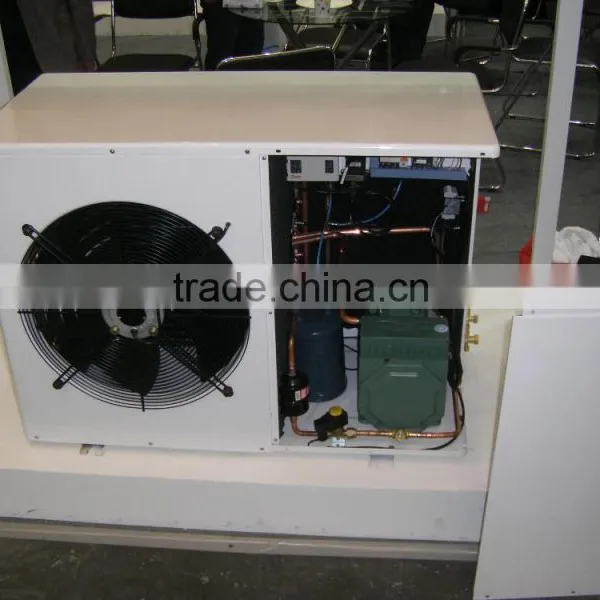

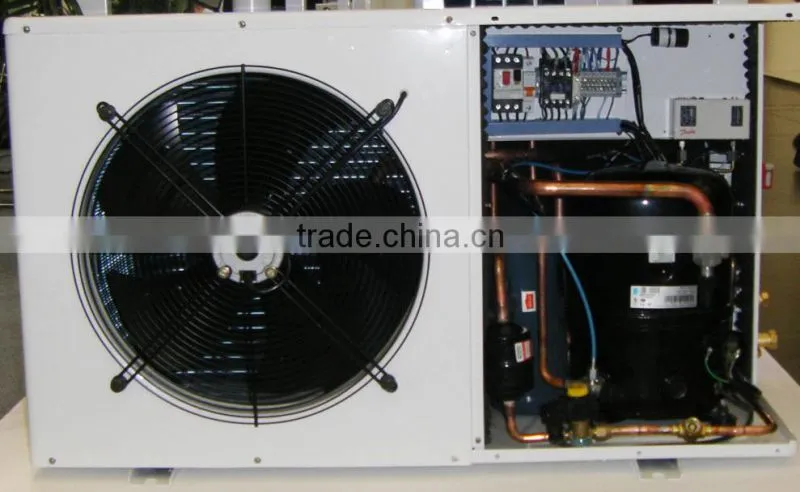

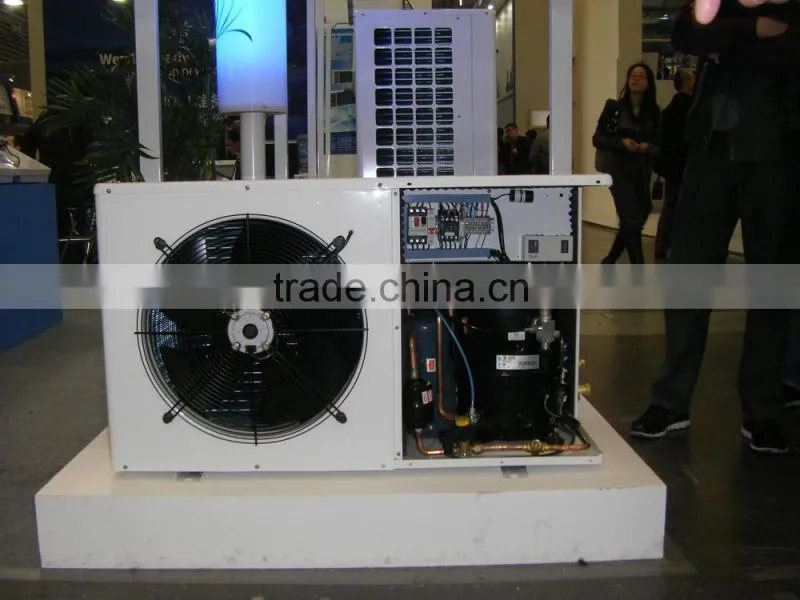

JZW Series Box Type Air Cooled Condensing Unit Features:
This series products feature box type structure with scroll compressor, that is compact ans pleasant looking, applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are:-5°C~ 5°C and -20°C~ -15°C Cold and Freezer Rooms. They be used in hotels, restaurants, medicines, agricutureral, chemicals industries all other place where cold storage is needed.
Main Components of Air Side Blowing Condensing Unit:

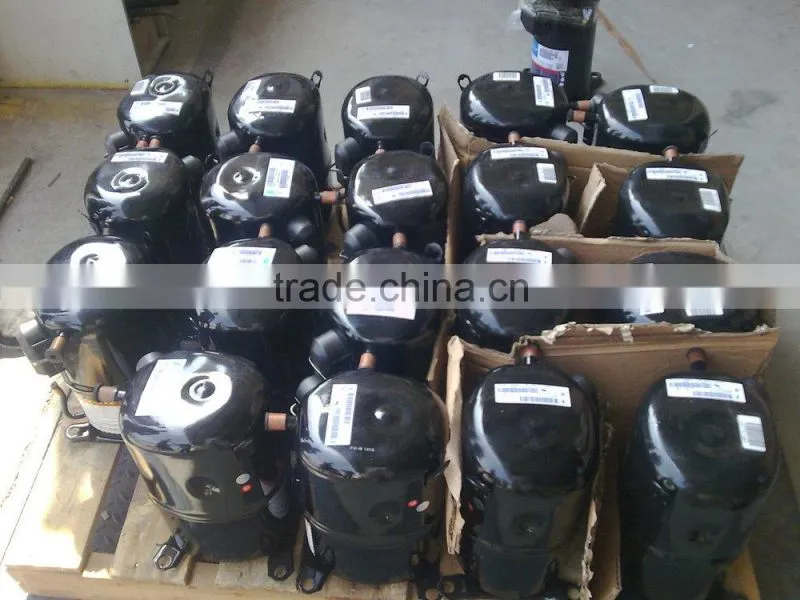

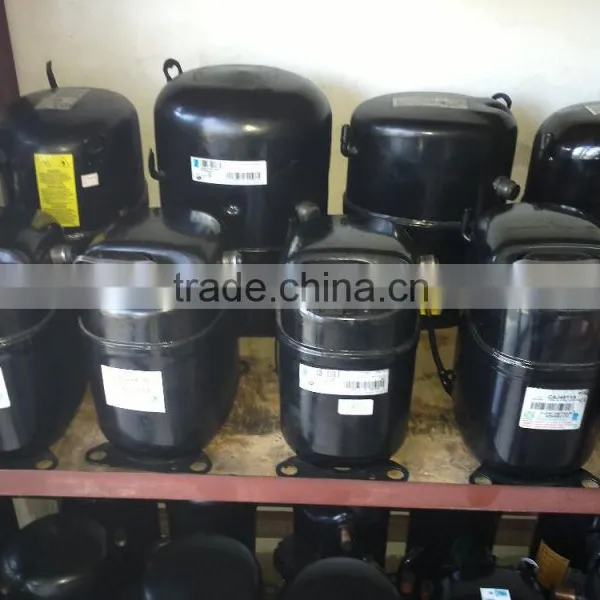

-Brand refrigerant compressors as Copeland, Tecumseh, Bitzer etc. with high reliability are selected;
-Fan with 6 pole external rotor motors;

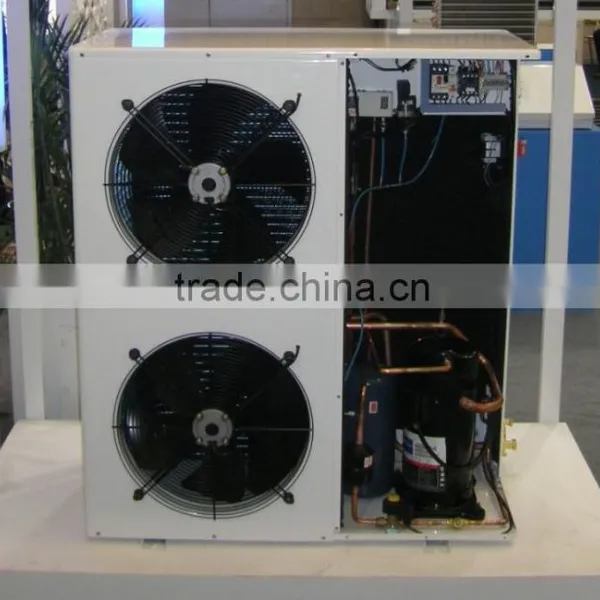

-For the unit with 2 fans, the condenser fans are automatically controlled;
-World famous brand refrigeration parts are employed for all products;
-Unit established by electrical control accessories, with the protection of lack of phase, overload, frequent start and high voltage.
Model Specifications:
JZW 03 L A G Y
JZW-LVTE Company Products Code
03-Compressor Power Input (HP)
L-Temperature: M:-5°C~ 5°C L: -20°C~ -15°C
A-Air Side Outlet
G-Compressor Brand, T—Tecumseh G—Copeland B—Bitzer
Y-Refrigerant: Y—R404a; Empty—R22
Tecumseh hermetic Piston Compressor Condensing Unit Series:
1.Temperature:-5°C~ 5°C Models: JZW0.6MATY---JZW03MATY(0.6HP-3HP)
JS-01
2.Temperature:-20°C~ -15°C Models: JZW01LATY---JZW03LATY(1HP-3HP)
JS-02
Copeland ZB (Scroll) Compressor Condensing Unit Series
1.Temperature:-5°C~ 5°C Models: JZW02MAGY---JZW08MAGY(2HP-8HP)
JS-03(1) JS-03(2)
2.Temperature:-20°C~ -15°C Models: JZW02LAGY---JZW10LAGY(2HP-10HP)
JS-04(1) JS-04(2)

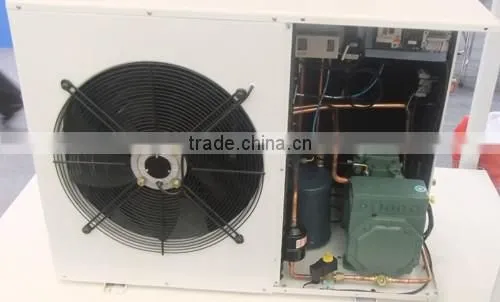

Bizter Semi-hermetic Piston Compressor Condensing Unit Series
1.Temperature:-5°C~ 5°C Models: JZW02MABY---JZW07MABY(2HP-7HP)
JS-05
2.Temperature:-20°C~ -15°C Models: JZW02LABY---JZW12LABY(2HP-12HP)
JS-06(1) JS-06(2)
Technical Data Sheet(Specification) for JZW Series Condensing Units
Tecumseh Hermetic Piston Compressor Series:

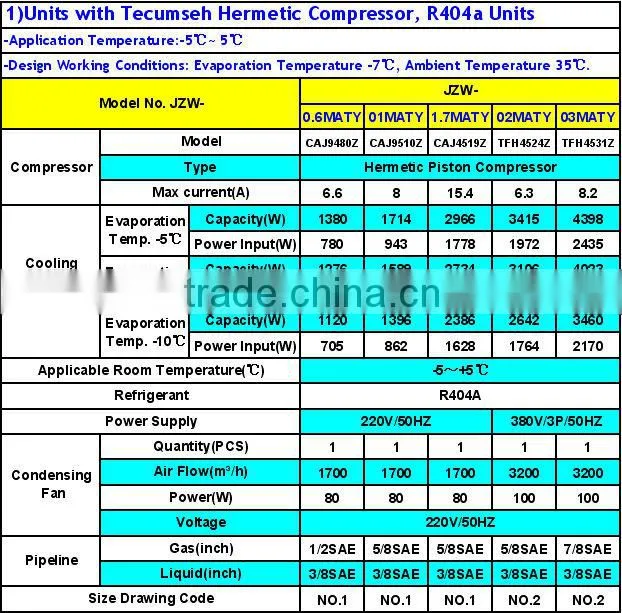

1)Units with Tecumseh Hermetic Compressor, R404a Units
-Application Temperature:-5°C~ 5°C
-Design Working Conditions: Evaporation Temperature -7°C, Ambient Temperature 35°C.

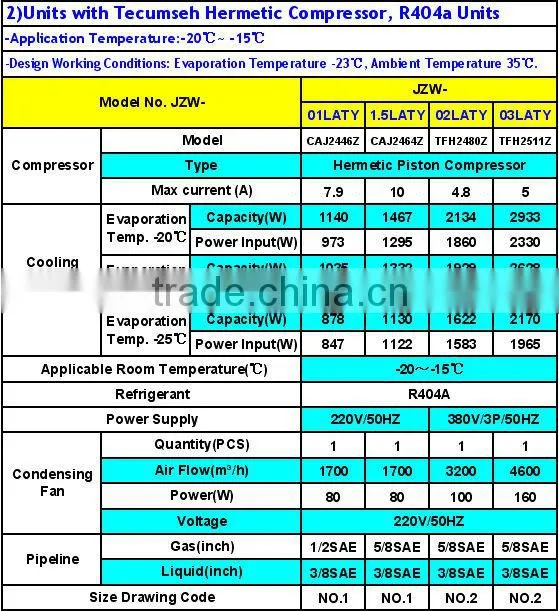

2)Units with Tecumseh Hermetic Compressor, R404a Units
-Application Temperature:-20°C~ -15°C
-Design Working Conditions: Evaporation Temperature -23°C, Ambient Temperature 35°C
Copeland ZB(Scroll) Compressor Series

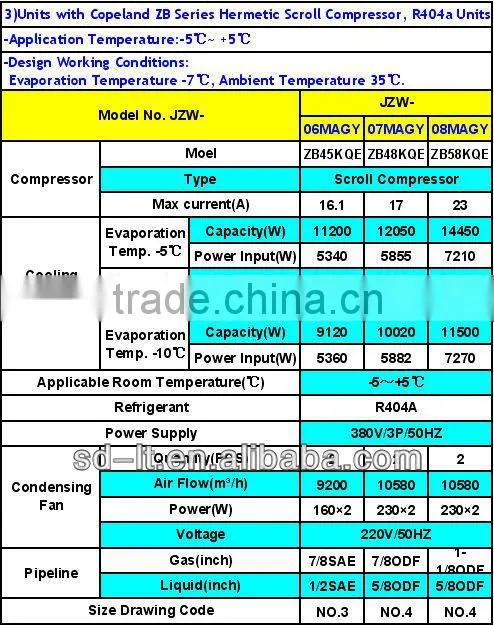

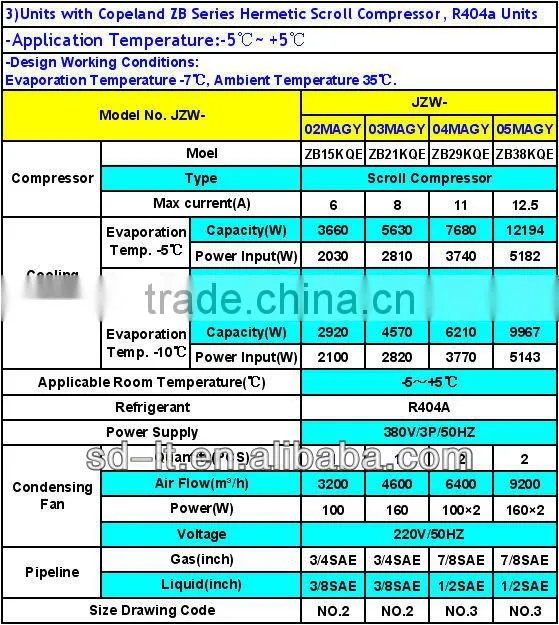

3)Units with Copeland ZB Series Hermetic Scroll Compressor, R404a Units
-Application Temperature:-5°C~ +5°C
-Design Working Conditions: Evaporation Temperature -7°C, Ambient Temperature 35°C.

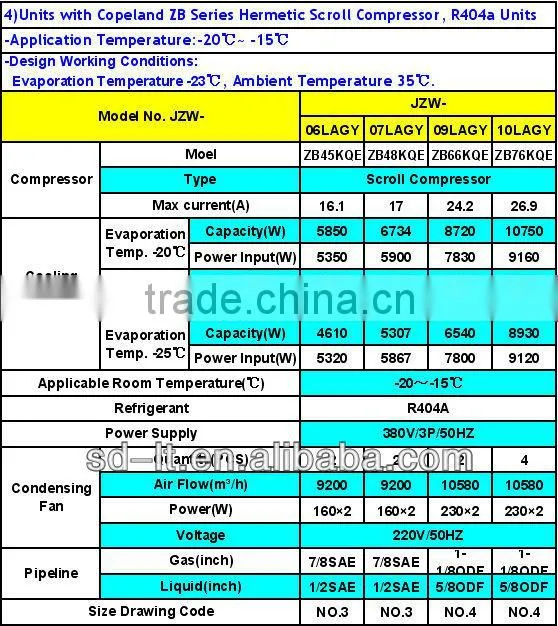

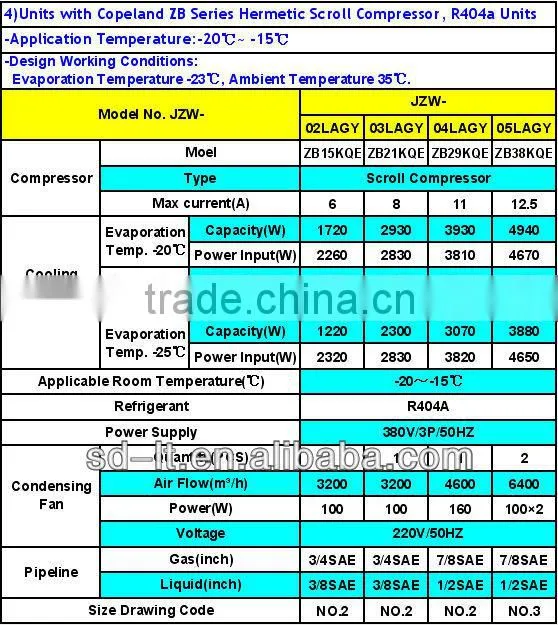

4)Units with Copeland ZB Series Hermetic Scroll Compressor, R404a Units
-Application Temperature:-20°C~ -15°C
-Design Working Conditions: Evaporation Temperature -23°C, Ambient Temperature 35°C.
Bizter Semi-hermetic Piston Compressor Series
5)Units with Bitzer Semi Hermetic Compressor, R404a Units
-Application Temperature:-5°C~ +5°C
-Design Working Conditions: Evaporation Temperature -7°C, Ambient Temperature 35°C.

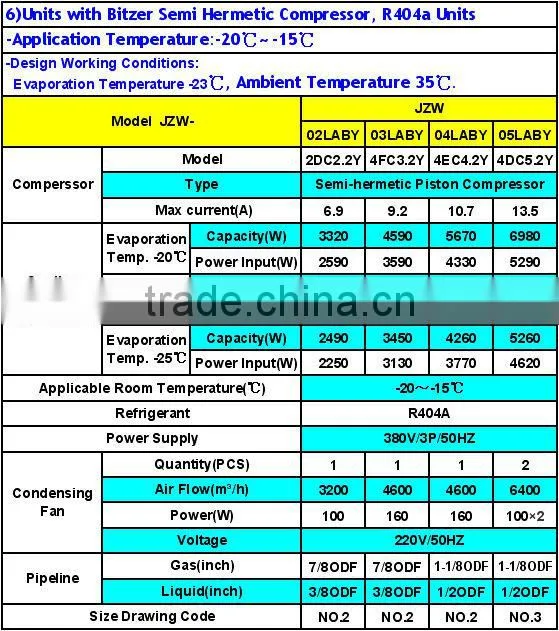

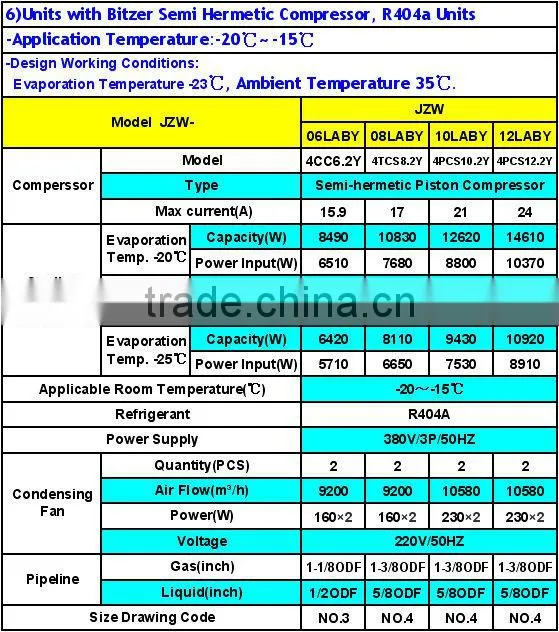

6)Units with Bitzer Semi Hermetic Compressor, R404a Units
-Application Temperature:-20°C~ -15°C
-Design Working Conditions: Evaporation Temperature -23°C, Ambient Temperature 35°C.
