Specifications
The DK Series cold storage control box can be matched with all kinds of non-electrical condensing unit for the storage room.Introduction:
The DK Series cold storage control box that produced by our company can be matched with all kinds of non-electrical condensing unit for the usage in cold storage room.
Features:
1. Specially designed in accordance with the control features of scroll compressor,semi-hermetic compressor and air/water cooled condensing unit. Reliable in operation;
2. Featured with two types of standard configuration. Type A mainly adopts the Schneider Electrical Components and Italy Dixell Controller. Type B mainly adopts the domestic high-quality electrical components to satisfy different demands of customers;
3. Featured with the function of temperature display,setting up,control temperature automatically,defrosting, protection,automatic control, etc;
4. The control box is featured with many instructions like power,cooling,defrosting,malfunction. Besides, it is also featured with many kinds of protections like phase,overheat & overload,high & low voltage;
5. The DKB Series can be linked with compressor to protect the modular. It mainly used together with the semi-hermetic compressor condensing unit;
6. The DKQ series mainly used together with the scroll compressor and fully hermetic compressor condensing unit.
Model Specification
JZDK Q F 9 A
JZDK: The series No. of electric control box
Q: The code of compressor brand, Q: fully hermetic or scroll compressor B: semi-hermetic compressor
F: The code of unit type F: Air-cooled Condensing unit S: Water-cooled Condensing unit
9: The rated current of main contractor (A)
A: The code of configuration A: Import type configuration B: Domestic type configuration

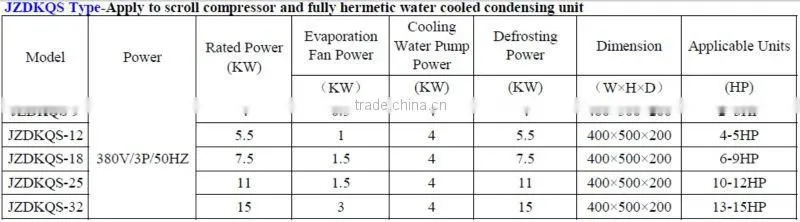

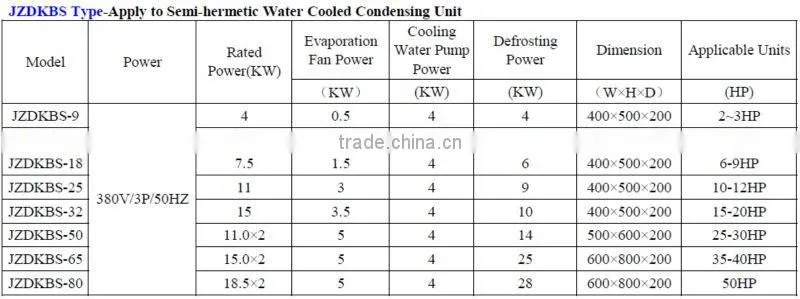

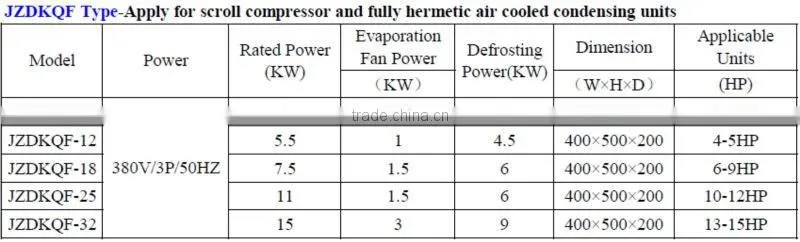

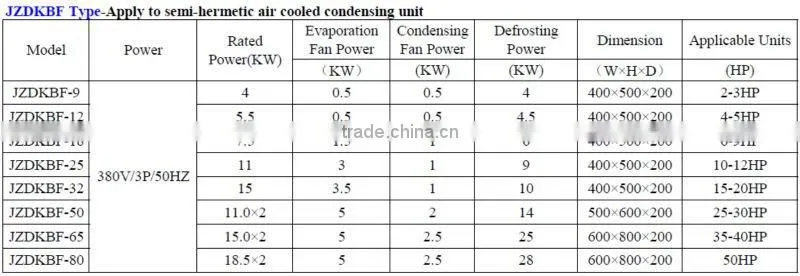

Technical Parameters
Notes: The fan and the compressor should be linked in parallel.
Notes: The condensing fan and the compressor run at the same time, the compressors of the models above DKBF(S) are started in separate coil wire.
