LTMLH Series High Efficiency Ground Source Heat Pump(COP 6.0)

Specifications

Ground Source Heat Pump
-Heat Pump Water to Water
-Geothermal Energy adopted
-High Efficiency COP
-Water Source Heat Pump

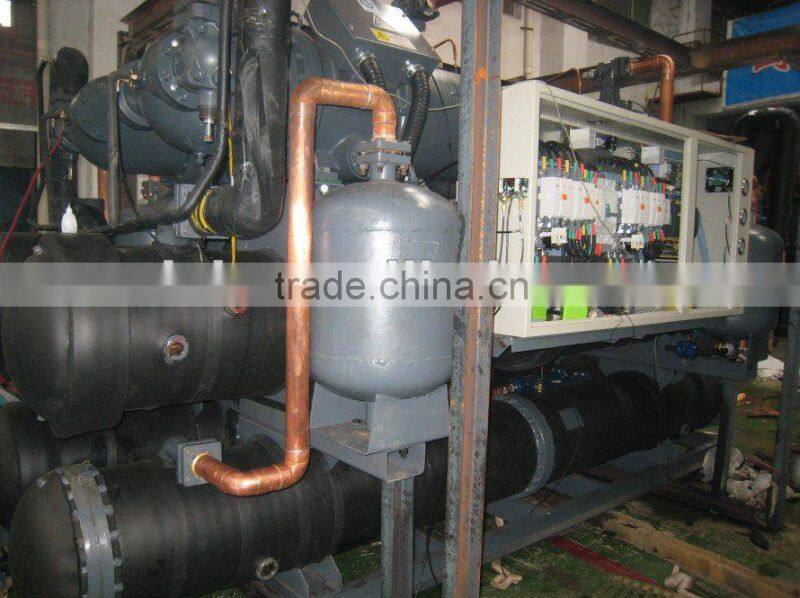

LTMLH Series High Efficiency Ground Source Heat Pump(COP 6.0)

Competitive Advantages:

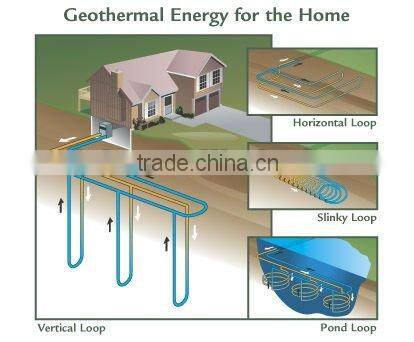

Flooded evaporator with the dry evaporator make COP increased by 1.5. The latest threads and efficient heat exchange tube make heat transfer coefficient over normal heat exchange tubes of 1.3. times. It Can take ground water, surface water (rivers, lakes, sea) and soil as air conditioning heating or cooling source for the floor radiant, radiator, fan coil units and other end of the form of heating, cooling. Free living hot water if asked;

Features:

1.5: 6 tooth gear design with the world famous twin-screw compressor, small vibration, low failure rate, advanced energy control method which can achieve a paragraph or unwarranted energy regulation; injection compression, noise seal;

2.Control device using the world famous, PID regulation, completely eliminate the stuck rotor or motor overheating; high temperature and low pressure exhaust temperature monitor and control access to water, water, antifreeze, water temperature and other multi-protection, to ensure the safe operation of generating units; large-screen color touch screen, has the status display;

3.Optimal design can improve a wider range of cooling capacity. Part load performance is good. New electronic throttle device, achieve null process control. Part of the load, the double-press alternately run and longer life;

4.Application of places: hotels, restaurants, hospitals, office buildings, theaters, stadiums, residential quarters, textile, food, medicine, metallurgy, chemicals and boiler works.

Heat Pump System:

Models Specification: LTMLH(R)-070 TO LTMLH(R)-1000

Cooling Capacity:247-3600KW Heating Capacity:260-3805KW

1.Cooling Condition:Chilled water inlet/outlet 12°C/7°C;Cooling water inlet/outlet 18°C/29°C;

2.Heating Conditions: Hot water inlet/outlet 40°C/45°C;Cooling water inlet/outlet 15°C/7°C;

3.The data below is based on R22 refrigerant, any other requests please notice us, and conatct with LUTE Company.

Unit Model  LTMLH(R)-				70	85	110	150	185	220	260	310	375	440	515	615	750	885	1000
Heating Capacity(KW)				260	317	408	567	694	816	951	1134	1388	1632	1902	2268	2777	3264	3805
Cooling Capacity(KW)				247	300	387	536	657	775	900	1072	1315	1550	1800	2145	2630	3100	3600
Electrical Parameter	Power			3/N/PE  AC380V/220V   50HZ
	Input	Cooling	kW	42.6	52.1	66.8	92	112.3	130.2	151.3	184	224.6	260.4	302.6	368	449.2	520.8	605.2
	Power	Heating	kW	58.2	71.1	91	123.3	150.4	174.4	199.1	246.6	300.8	348.8	398.2	493.2	601.6	697.6	796.4
	Control System			Dedicated heat pump controller,PID regulator,color touch screen
	Energy Regulation		%	25——100
	Security			Overload, high voltage, wrong Phase, water, oil, antifreeze switch, high temperature protection
Compressor	Type			Imports of semi-closed screw compressors(Italy Refcomp, or Germany Bizter etc.)
	Quantity		set	1	1	1	1	1	1	1	2	2	2	2	4	4	4	4
Refrigerants	Refrigerant			Environmental protection Refrigerants R134a, R410a
	Charge		kg	100	120	155	215	265	310	360	430	525	620	720	858	1050	1240	1440
Evaporator	Type			High Efficient flooded type heat exchanger
	Water	Cooling	m3/h	50	60	77	107	132	155	180	215	262	310	360	429	525	620	720
	Flow	Heating	m3/h	26	32	41	57	70	82	95	114	139	165	191	228	279	329	382
	Pressure Loss		Kpa	≤80								≤90
	Interface Dim.		DN(mm)	100	125	125	125	150	150	150	150	150	200	200	125×2	200×2	200×2	200×2
Condenser	Type			Efficient shell and tube heat exchanger
	Water	Cooling	m3/h	26.3	32	41	57	70	82	95	114	139	165	191	228	279	329	720
	Flow	Heating	m3/h	49.5	56	77	107	132	155	180	215	262	310	360	429	525	620	382
	Pressure Loss		Kpa	≤80								≤90
	Interface Dim.		DN(mm)	100	125	125	125	150	150	150	150	150	200	200	125×2	200×2	200×2	200×2
