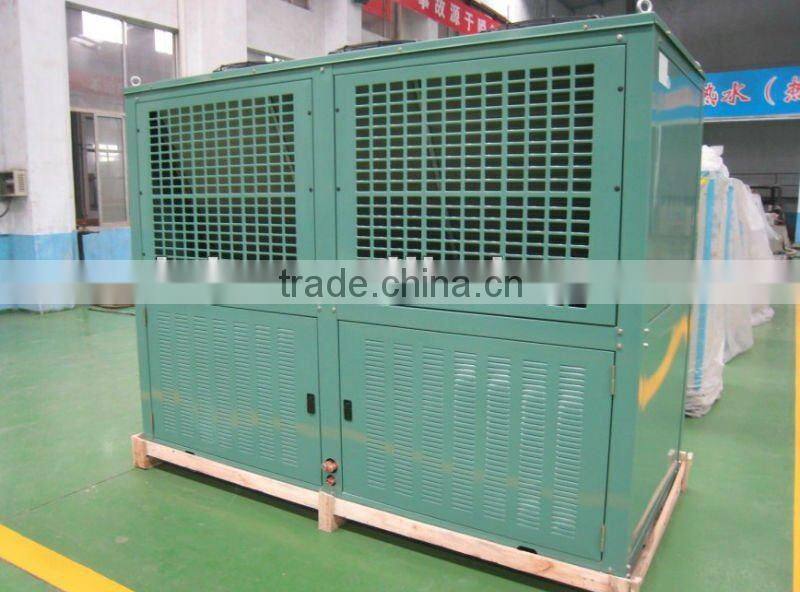

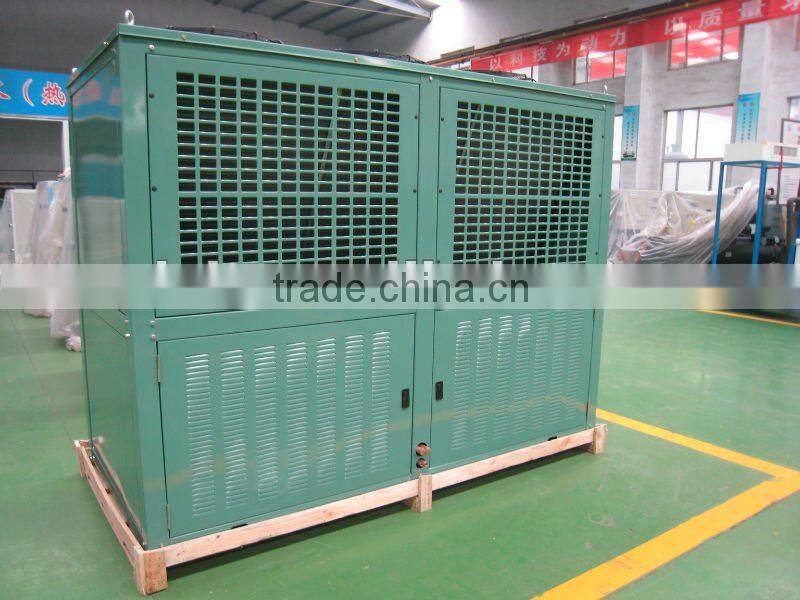

Box Type JZQ Series Condensing Unit for Cold Storage Room and Vegerable Fresh with Copeland Compressor

Specifications

Condensing Unit
Copeland Refrigeration Condensing Unit
2HP-15HP power output
Used for Cold Room Outlook
High Efficiency

JZQ Series Low Noise High Efficiency Condensing Unit for Refrigeration Cold Room,Food and Vegerable Fresh

 1. Product description

This series products feature box type structure with hermetic compressor, that is compact and pleasant looking, applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5~ 10 and -10~-18. They can be used in hotels, restaurants, medicines, agriculture, chemicals industries all other place where cold storage is needed.

2. Model code

 JZQ   03   M   A   G   Y

JZ: LVTE Company;

Q: Hermetic compressor

03: Compressor Power Input HP;

M: Temperature, H: 5°C~8°C;M: -5°C~ 5°C; L:-20°C~ -15°C

A: Fan direction; A side direction; B top direction;

G: Copeland Compressor

Y: Refrigerant Type; Y—R404a; Others—R22

 3. Technical Specification

1.1 Application Temperature:5°C~ 10°C (Regrigerant:R22)
Model JZQ-			02HAG	03HAG	04HAG	05HAG
Comperssor Model--Copeland			ZB15KQ	ZB21KQ	ZB29KQ	ZB38KQ
Cooling Capacity &Power Input	Evaporation Temperature 7°C	Cooling Capacity(W)	6150	8870	12000	14700
		Power(W)	1480	2570	3300	4050
	Evaporation Temperature 5°C	Cooling Capacity(W)	5730	8260	11050	13700
		Power(W)	1550	2560	3300	4010
	Evaporation Temperature 0°C	Cooling Capacity(W)	4770	6890	8880	11250
		Power(W)	1690	2530	3290	3940
Applicable Room Temperature(°C)			5~10°C
Refrigerant			R22
Power Supply			380V/3P/50HZ
Condenser	Fan Quantity(PCS)		1	1	2	2
	Fan Voltage(V)		220	220	220	220
	Fan Power(W)		60	60	60×2	60×2
Interface	Air Interface(mm)		φ19	φ19	φ19	φ19
	Liquid Interface(mm)		φ10	φ10	φ12	φ12
Size	Length(mm)		1020	1020	1020	1020
	Width(mm)		420	420	420	420
	Height(mm)		840	840	1240	1240
Installation dimensions(A×B)(mm)			580×380	580×380	580×380	580×380
Design Working Condition			Evaporation Temperature 5°C; Environmental Temperature 35°C; Suction superheat 10°C.
