10mmX10mm Single Layer Graphene on Copper Film

10mmX10mm Single Layer Graphene on Copper Film photo-1

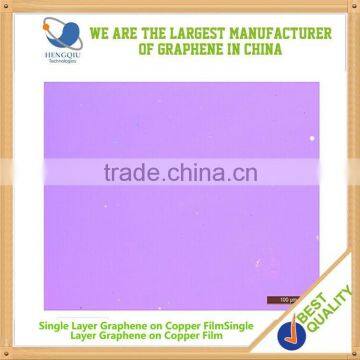

10mmX10mm Single Layer Graphene on Copper Film photo-2
US$ 10 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HENGQIU
Model Number:
HQ-GR-021-1
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name HENGQIU
Model Number HQ-GR-021-1
Application Flexible Batteries
Dimensions 10mmX10mm
Chemical Composition Graphite

Specifications:

1. Single Layer Graphene on Copper Film

2. High Quality.

3. Best Service.

4. Fast Delivery

5. Competitive Price.

Product Name: 10mmX10mm Single Layer Graphene on Copper Film Copper Film

Description:









Graphene

Film



  • Growth method: CVD synthesis
  • Appearance (color): Transparent
  • Transparency: > 97%
  • Appearance (form): Film
  • Coverage: > 95%
  • Number of graphene layers: 1
  • Thickness (theoretical): 0.345 nm
  • FET Electron Mobility on Al203: 2000 cm2/Vs
  • Hall Electron Mobility on Si02/Si: 4000 cm2/Vs
  • Sheet Resistance on SiO2/Si: 450±40 Ohms/sq (1cm x1cm)
  • Grain size: Up to 10 μm









Substrate Cu Foil



  • Thickness: 18 μm
  • graphene films that are predominantly single-layer grapheneGraphene is grown on both sides of the copper foil.
  • Etching of the underlying copper foil allows the carbon films to be transferred to other substrates such as glass, silicon dioxide or  plastic films.
  • The copper foil with single-layer graphene can exhibit some coloration due to slow oxidation of the copper foil, which does not affect the quality of the graphene film.









 Single Layer Graphene on Copper Film



  • The Monolayer Graphene on Cu is a high quality product with a great   homogeneity.
  • Excellent properties.
  • The best options for R&D Departments and Universities.
  • Single Layer Graphene on Copper Film consist on a single-layer graphene grown on copper foil substrate.






 Application

  • Single Layer Graphene on Copper Film  is a high quality product with a great homogeneity.
  • It is used in Graphene research, Electronics, Aerospace industry, MEMS and NEMS, Microactuators, Conductive coatings12MM Circular Single Layer Graphene on Copper Film

    Sample Charge:

     1. Samples charge: According to your design. Sampling time: 3-5days.

     2. Samples charge: Free for Existing Samples Sampling time: 1 day.

    Advantage:

     1. We are manufacturer: We produce products by our own factory, so we can offer you with wholesale price.

     2. Low MOQ: It can meet your test very well.

     3. Specify purity Accepted: We can produce product's purity as you required.

     4. Good Service: We treat clients as friend.

     5. Good Quality: We have strict quality control system .Good reputation in the market.

    6. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).

    Our Innovation:

    Quality & Service At HENGQIU, our #1 priority has always been providing our clients with great quality products and superior customer service.

    Quick Lead Time We're dedicated to providing the quickest turnaround times and work very Hard to ensure that all of your deadlines are met.

    Unbeatable Prices We continuously strive to find ways of reducing our production costs, and passing the savings Over to you!

    Advanced technology We have established long term cooperation With Tsinghua University, Fudan University, Chinese Academy of Sciences, University of California at Berkeley and other well-known domestic and foreign research institutes for Research and Development.

    Special Offers In order to maintain our competitive edge, we are constantly running special offers on our Graphene Products, Carbon Nanotube, Medical Intermediates, Plant Extract and Design Services.

    Contact our sales team to see how we can help you save a lot of money.
