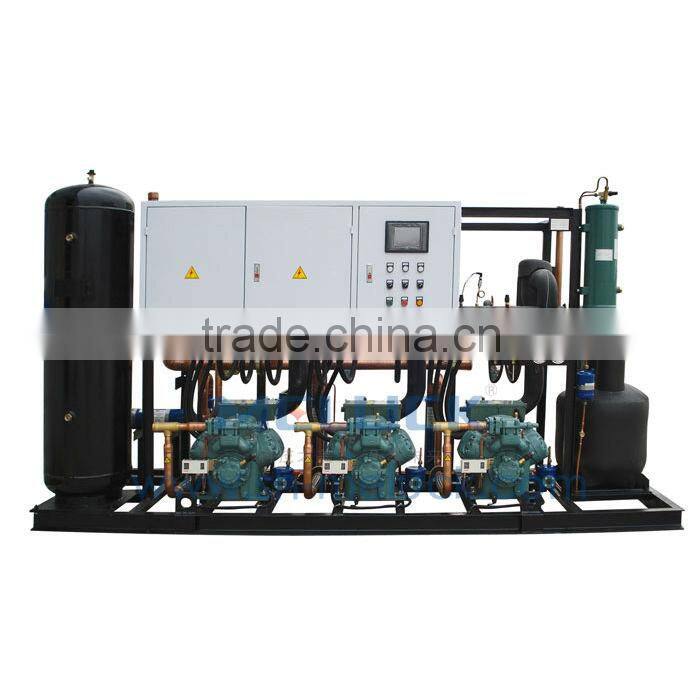

JZBBS Superior Quality and Efficiency Water(Air)Cooled Condensing Unit for Refrigeration Freezer and Cold Rooms

Specifications

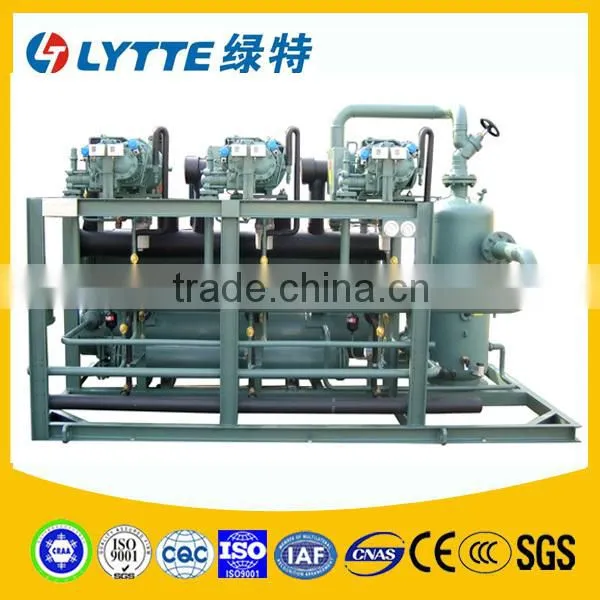

Cold Storage Room Condensing Unit
1.Semi-Hermetic Bitzer Compressor
2.Compacted Structure
3.30HP,CE,CRAA



JZBBS Superior Quality and Efficiency Water(Air)Cooled Condensing Unit for Refrigeration Freezer and Cold Rooms



Model Details:



Air Cooled Compressor Racks R22 Units



Temperature:-5°C~ 5°C (Middle and High Temperature Units)

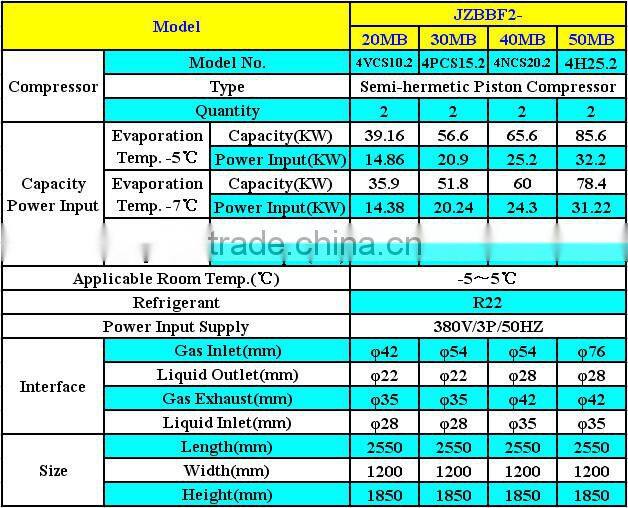

a. 2 Compressors Racks Models: JZBBF2 - 20MB---JZBBF2-100MB (20HP-100HP)

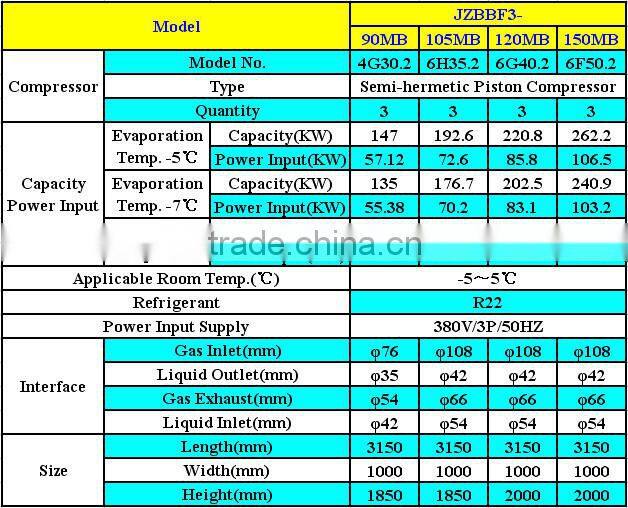

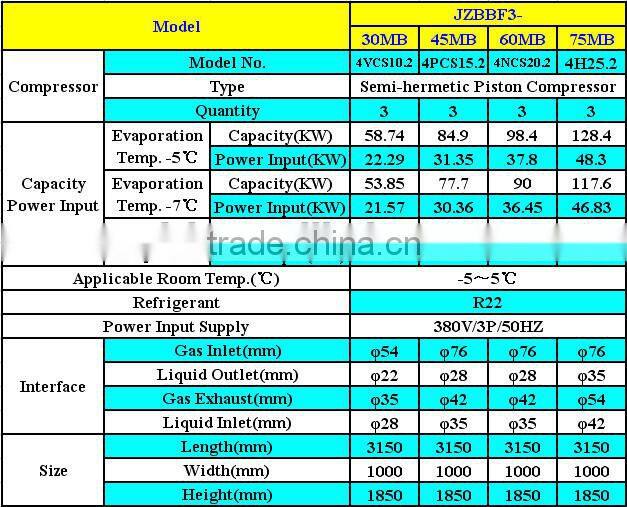

b. 3 Compressors Racks Models: JZBBF3 - 30MB---JZBBF3-150MB (30HP-150HP)



c. 4 Compressors Racks Models: JZBBF4 - 40MB---JZBBF4-200MB (40HP-200HP)

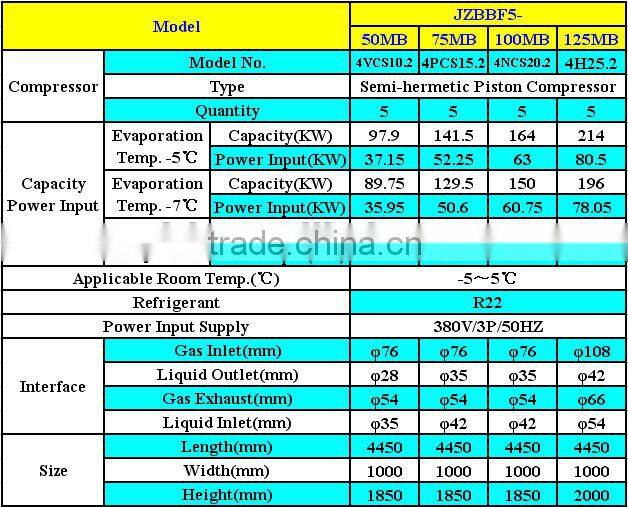

d. 5 Compressors Racks Models: JZBBF5 - 50MB---JZBBF4-250MB (50HP-250HP)



Temperature:-20°C~ -15°C (Middle and Low Temperature Units)

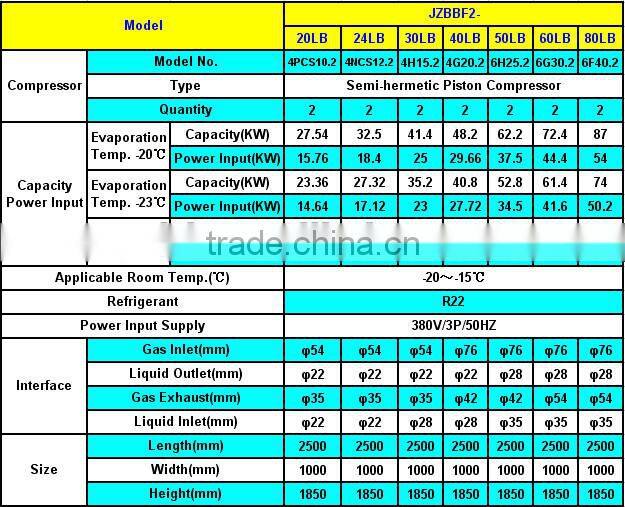

a. 2 Compressors Racks Models: JZBBF2-20LB---JZBBF2-100LB (20HP-100HP)

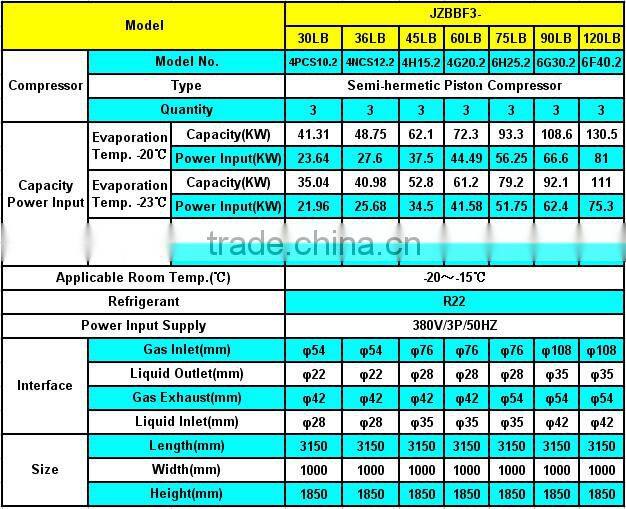

b. 3 Compressors Racks Models: JZBBF3-30LB---JZBBF3-120LB (30HP-120HP)



c. 4 Compressors Racks Models: JZBBF4-40LB---JZBBF4-160LB (40HP-160HP)

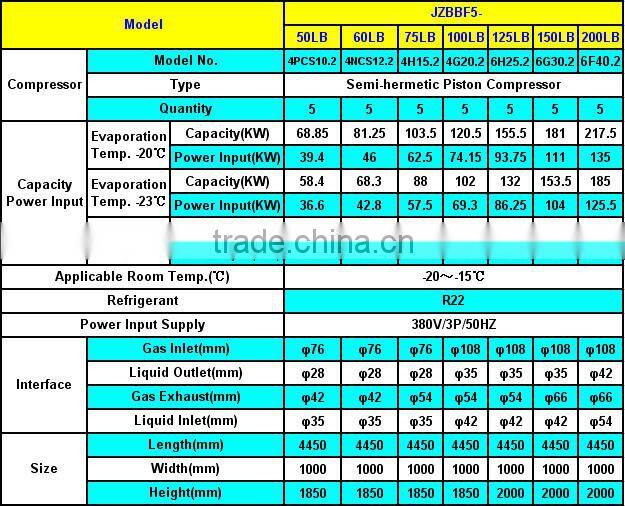

d. 5 Compressors Racks Models: JZBBF5-50LB---JZBBF4-200LB (50HP-200HP)

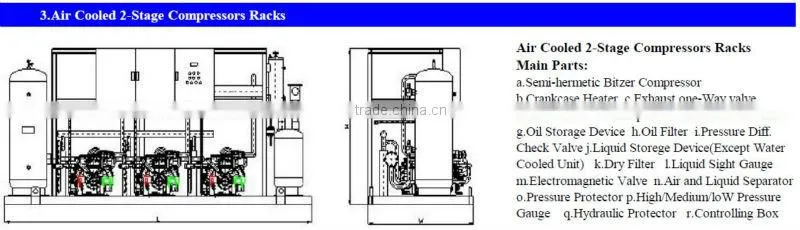

Air Cooled 2-Stage Compressor Racks R22 Units (Quick Freezing Low Temperature Type)



Temperature:-40°C~ -25°C Models:JZBSBF2-40JB---JZBSBF5-150JB(40HP-150HP)



Water Cooled Compressor Racks R22 Units



Temperature:-5°C~ 5°C (Middle and High Temperature Units)



a. 2 Compressors Racks Models: JZBBS2-20MB---JZBBS2-100MB (20HP-100HP)



b. 3 Compressors Racks Models: JZBBS3-30MB---JZBBS3-150MB (30HP-150HP)



c. 4 Compressors Racks Models: JZBBS4-40MB---JZBBS4-200MB (40HP-200HP)



d. 5 Compressors Racks Models: JZBBS5-50MB---JZBBS4-250MB (50HP-250HP)



Temperature:-20°C~ -15°C (Middle and Low Temperature Units)



a. 2 Compressors Racks Models: JZBBS2-20LB---JZBBS2-80LB (20HP-80HP)



b. 3 Compressors Racks Models: JZBBS3-30LB---JZBBS3-120LB (30HP-120HP)



c. 4 Compressors Racks Models: JZBBS4-40LB---JZBBS4-160LB (40HP-160HP)



d. 5 Compressors Racks Models: JZBBS5-50LB---JZBBS4-200LB (50HP-200HP)



Water Cooled 2-Stage Compressors Racks R22 Units (Quick Freezing Low Temperature Type)



Temperature:-40°C~ -25°C Models:JZBSBS2-40JB---JZBSBS5-150JB(40HP-150HP)



Introduction & Features

1. Utilized Semi-Hermetic Bitzer Refrigeration Compressors; Good Quality and Reliable Performance;

2. The products feature by their structures of multi semi-hermetic Bitzer Compressors paralleled together to from one integrated  systems. The discharge pipes, suction pipes are one shared by all the compressors for each units. The paralleled system is simpler for integrated control and cap adjustment;

3. Structure is compacted to save installation space;

4. According to the change of cooling load, the multilevel energy regulation can be realized and also can reduce the equipment running cost.

5. Reduce the influence on operation that caused by machine failure so as to increase the realibity of the unit operation.

6. R404a, R22 units can be provided.





























Models Specifications: JZB     B     F     3 ------- 30     M     B     Y

JZB--LVTE Company Products Code

B--Compressor Type Code: B (1-stage Semi-hermetic); SB(2-stage Semi-hermetic)

F--Cooling Type: F (Air Cooled); S (Water Cooled)

3--Compressor Quantity

30--Compressor Power Input; HP

M--Temperature:M:-5~5°C;L:-20~-15°C;J:-40~-25°C

B--Compressor Brand: Bitzer

Y--Refrigerant, Y-R404A, ---:R22

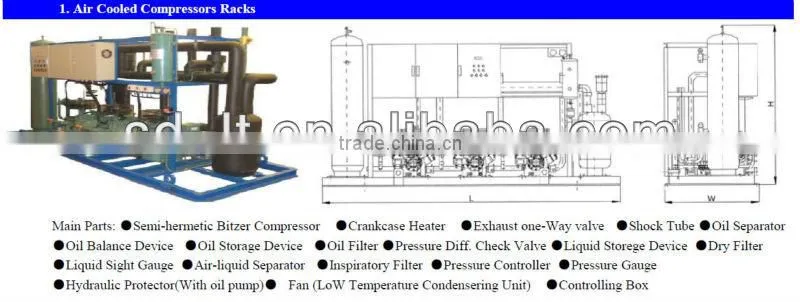

Air Cooled Compressor Racks R22 Units

Temperature:-5°C~ 5°C (Middle and High Temperature Units)

a. 2 Compressors Racks Models: JZBBF2 - 20MB---JZBBF2-100MB (20HP-100HP)





b. 3 Compressors Racks Models: JZBBF3 - 30MB---JZBBF3-150MB (30HP-150HP)



c. 4 Compressors Racks Models: JZBBF4 - 40MB---JZBBF4-200MB (40HP-200HP)



d. 5 Compressors Racks Models: JZBBF5 - 50MB---JZBBF4-250MB (50HP-250HP)



Temperature:-20°C~ -15°C (Middle and Low Temperature Units)

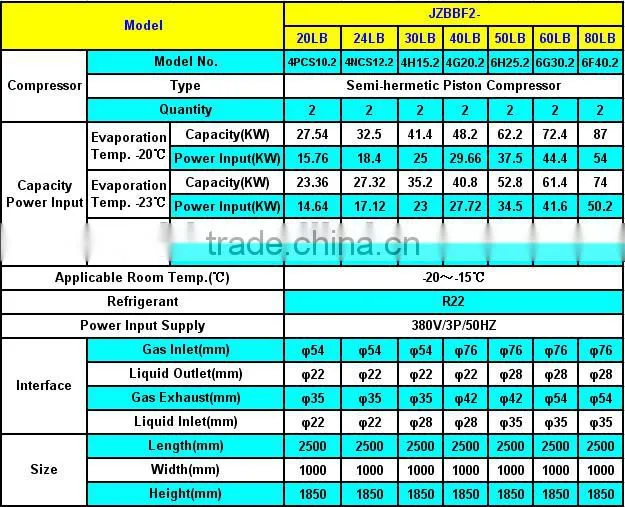

a. 2 Compressors Racks Models: JZBBF2-20LB---JZBBF2-100LB (20HP-100HP)



b. 3 Compressors Racks Models: JZBBF3-30LB---JZBBF3-120LB (30HP-120HP





c. 4 Compressors Racks Models: JZBBF4-40LB---JZBBF4-160LB (40HP-160HP)



d. 5 Compressors Racks Models: JZBBF5-50LB---JZBBF4-200LB (50HP-200HP)
