Specifications
Compressor Racks for cold roomfor Big Cold Room project
Bitzer Semi-hermetic Compressor
Good Quality
CE

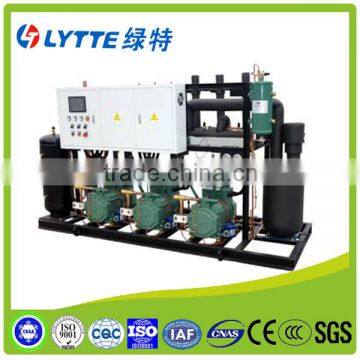

Low Temperature Compressor Racks for Cold Room Project
Introduction&Features
1. Utilized Semi-Hermetic Bitzer Refrigeration Compressors; Good Quality and Reliable Performance;
2. The products feature by their structures of muti semi-hermetic Bitzer Compressors paralleled together to from one integrated systems. The discharge pipes, suction pipes are one shared by all the compressors for each units. The paralleled system is simpler for intergrated control and cap adjustment;
3. Structure is compacted to save installation space;
4. According to the change of cooling load,the multilevel energy regulation can be realized and also can reduce the equipment running cost.
5. Reduce the influence on operation that caused by machine failure so as to increase the realibity of the unit operation.
6. R404a, R22 units can be provided.
Models Specifications:
JZB B F 3 ------- 30 M B Y
JZB--LVTE Company Products Code
B--Compressor Type Code: B(1-stage Semi-hermetic); SB(2-stage Semi-hermetic)
F--Cooling Type: F(Air Cooled); S(Water Cooled)
3--Compressor Quantity
30--Compressor Power Input; HP
M--Temperature:M:-5~5°C;L:-20~-15°C;J:-40~-25°C
B--Compressor Brand: Bitzer
Y--Refrigerant, Y-R404A, ---:R22
Model Details:
Water Cooled Compressor Racks R22 Units
Temperature:-5°C~ 5°C (Middle and High Temperature Units)
a. 2 Compressors Racks Models:JZBBS2-20MB---JZBBS2-100MB(20HP-100HP)
b. 3 Compressors Racks Models:JZBBS3-30MB---JZBBS3-150MB(30HP-150HP)
c. 4 Compressors Racks Models:JZBBS4-40MB---JZBBS4-200MB(40HP-200HP)
d. 5 Compressors Racks Models:JZBBS5-50MB---JZBBS4-250MB(50HP-250HP)
Temperature:-20°C~ -15°C (Middle and Low Temperature Units)
a. 2 Compressors Racks Models:JZBBS2-20LB---JZBBS2-80LB(20HP-80HP)
b. 3 Compressors Racks Models:JZBBS3-30LB---JZBBS3-120LB(30HP-120HP)
c. 4 Compressors Racks Models:JZBBS4-40LB---JZBBS4-160LB(40HP-160HP)
d. 5 Compressors Racks Models:JZBBS5-50LB---JZBBS4-200LB(50HP-200HP)
Water Cooled 2-Stage Compressors Racks R22 Units (Quick Freezing Low Temperature Type)
Temperature:-40°C~ -25°C Models:JZBSBS2-40JB---JZBSBS5-150JB(40HP-150HP)
Water Cooled Compressors Racks; Refrigerant-R22
Main Parts: Semi-hermetic Bitzer Compressor/Crankcase Heater/Exhaust one-Way valve/Shock Tube/Oil Separator/Oil Balance Device/Oil Storage Device/Oil Filter/Pressure Diff. Check Valve/Water Cooled Condenser/Dry Filter/Liquid Sight Gauge/Air-liquid Separator/Pressure Controller/Pressure Gauge/Fan (LoW Temp. CondenseingUnit)/Controlling Box
Water Cooled Compressor Racks R22 Units
Temperature:-5°C~ 5°C (Middle and High Temperature Units)
a. 2 Compressors Racks Models:JZBBS2-20MB---JZBBS2-100MB(20HP-100HP)
Design Working Condition:Evaporation Temperature -7°C;Cooling Water Temp. In/Out 30/35°C;
Water Cooled Compressor Racks R22 Units
Temperature:-5°C~ 5°C (Middle and High Temperature Units)
b. 3 Compressors Racks Models:JZBBS3-30MB---JZBBS3-150MB(30HP-150HP)
Design Working Condition:Evaporation Temperature -7°C;Cooling Water Temp. In/Out 30/35°C;
Water Cooled Compressor Racks R22 Units
Temperature:-5°C~ 5°C (Middle and High Temperature Units)
c. 4 Compressors Racks Models:JZBBS4-40MB---JZBBS4-200MB(40HP-200HP)
Design Working Condition:Evaporation Temperature -7°C;Cooling Water Temp. In/Out 30/35°C;
Water Cooled Compressor Racks R22 Units
Temperature:-5°C~ 5°C (Middle and High Temperature Units)
d. 5 Compressors Racks Models:JZBBS5-50MB---JZBBS5-250MB(50HP-250HP)
Design Working Condition:Evaporation Temperature -7°C;Cooling Water Temp. In/Out 30/35°C;
Water Cooled Compressor Racks R22 Units
Temperature:-20°C~ -15°C (Middle and Low Temperature Units)
Models:JZBBS2-20LB---JZBBS2-80LB(20HP-80HP)
Design Working Condition:Evaporation Temperature -23°C;Cooling Water Temp. In/Out 30/35°C.CIC is to be used for the evaporation temperature under -25°C operation.
Water Cooled Compressor Racks R22 Units
Temperature:-20°C~ -15°C (Middle and Low Temperature Units)
Models:JZBBS5-50LB---JZBBS5-250LB(50HP-250HP)
Design Working Condition:Evaporation Temperature -23°C;Cooling Water Temp. In/Out 30/35°C.CIC is to be used for the evaporation temperature under -25°C operation.

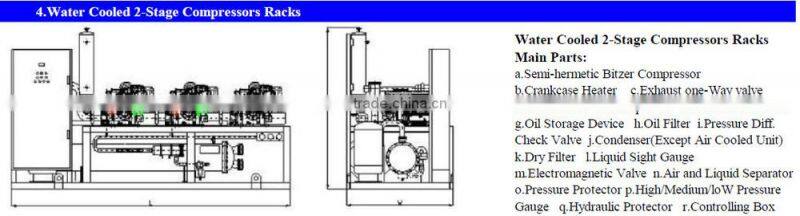

Water Cooled 2-Stage Compressor Racks R22 Units
Main Parts:
a.Semi-hermetic Bitzer Compressor b.Crankcase Heater c.Exhaust one-Way valve d.Shock Tube
e.Oil Separator f.Oil Balance Device g.Oil Storage Device h.Oil Filter i.Pressure Diff. Check Valve
j.Condenser(Except Air Cooled Unit) k.Dry Filter l.Liquid Sight Gauge m.Electromagnetic Valve n.Air and Liquid Separator o.Pressure Protector p.High/Medium/loW Pressure Gauge q.Hydraulic
Protector r.Controlling Box

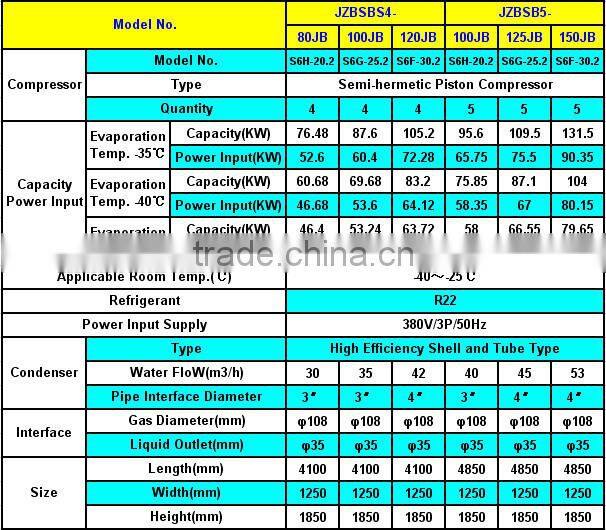

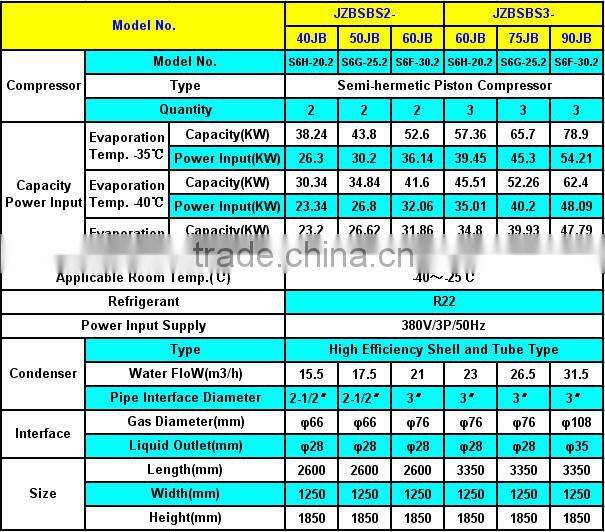

Temperature:-40°C~ -25°C (Quick Frzeezing Low Temperature Type)
Models:JZBSBS2-40JB---JZBSBS5-150JB(40HP-150HP)
Design Working Condition:Ambient Temperature 35°C. The Economizer is used for all racks operation.
