JZHLG Series Middle Temperature Air Cooled Compressor Racks (With Hanbell Screw Compressor)

Specifications

JZHLG Series Middle Temperature Air Cooled Compressor Racks (With Hanbell Screw Compressor)

Products Description of Air Cooled Compressor Racks

With the rapid development of the refrigeration equipment market, large preservation storages, low-temperature freezing storage, ice making equipment are more and more used. JZHLG series products feature by their structures of multi-Hanbell compressors paralleled together to form one intergrated systems. This products are applicable to large size cold rooms,ice making, chilled water making etc with temperature requirement ranging -5℃~5℃ and -20℃~-15℃. The products are equipped with muti protection devices for wrong direction, overheating, overloading, overhigh discharging temperature,
overlower oil level, oil flow, and high and low pressure etc. The refrigeration system has multi-phase cap regulation system to save energy significantly.

Models Specifications

JZH LG F 2 --100 M F Y

Notes:  JZH-- LVTE Company Products Code

             LG-- Compressor Type Code: LG—Semi-closed screw comprssors
             F-- Cooling Way: F—Air-Cooled; S—Water-Cooled

            2-- Compressor Quantity:Others—Signle
            100-- Compressor power input(HP)

            M-- Temperature:M—Temperature:-5℃~5℃;L—Temperature:-20℃~-15℃
            F-- Compressor Brand:F-Fusheng;Others—Hanbell

            Y-- Refrigerant:Y—R404A;A—R410A;C—R407C;Others—R22

Model Details:
Water Cooled Compressor Racks; R22 Units
A. Temperature:-5℃~5℃(Middle and High Temperature Type)

a. Water Cooled Single Compressor Racks Models: JZHLGS-30M---JZHLGS-150M(30HP-150HP)

b. Water Cooled 2 Compressors Racks Models: JZHLGS2-60M---JZHLGS2-220M(60HP-220HP)

c. Water Cooled 3 Compressors Racks Models: JZHLGS3-90M---JZHLGS3-210M(90HP-210HP)

B. Temperature: -20℃~-15℃ (Middle and Low Temperature Type)

a. Water Cooled Single Compressor Racks Models: JZHLGS-30L---JZHLGS-150L(30HP-150HP)
b. Water Cooled 2 Compressors Racks Models: JZHLGS2-60L---JZHLGS2-250L(60HP-250HP)

c. Water Cooled 3 Compressors Racks Models: JZHLGS3-90L---JZHLGS3-300L(90HP-300HP)

Air Cooled Compressor Racks; R22 Units
A. Temperature:-5℃~5℃(Middle and High Temperature Type)

a. Air Cooled Single Compressor Racks Models: JZHLGF-30M---JZHLGF-150M(30HP-150HP)

b. Air Cooled 2 Compressors Racks Models: JZHLGF2-60M---JZHLGF2-250M(60HP-250HP)

c. Air Cooled 3 Compressors Racks Models: JZHLGF3-90M---JZHLGF3-240M(90HP-240HP)

B. Temperature: -20℃~-15℃ (Middle and Low Temperature Type)

a. Air Cooled Single Compressor Racks Models: JZHLGF-30L---JZHLGF-150L(30HP-150HP)
b. Air Cooled 2 Compressors Racks Models: JZHLGF2-60L---JZHLGF2-250L(60HP-250HP)

c. Air Cooled 3 Compressors Racks Models: JZHLGF3-90L---JZHLGF3-300L(90HP-300HP)

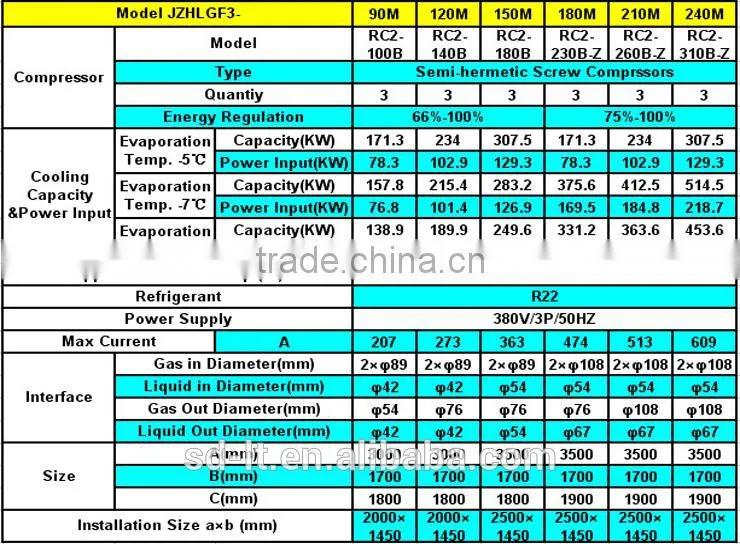

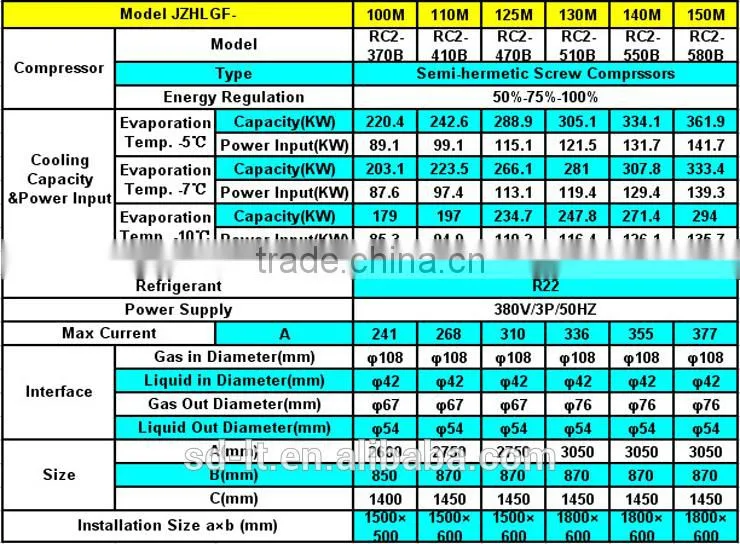

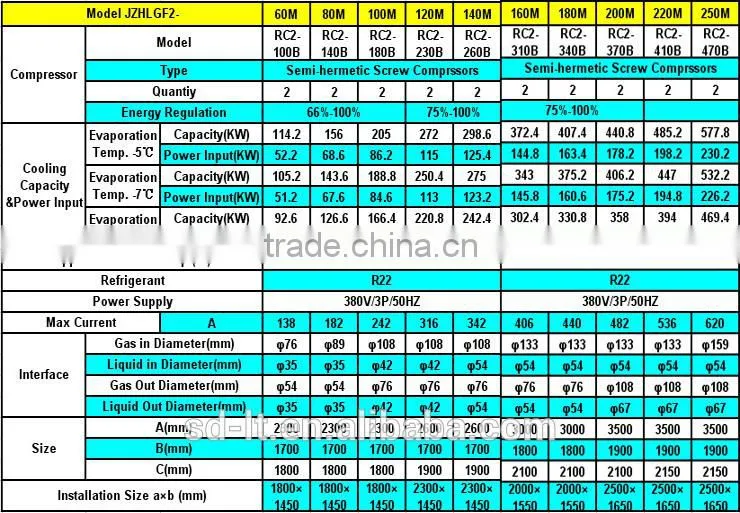

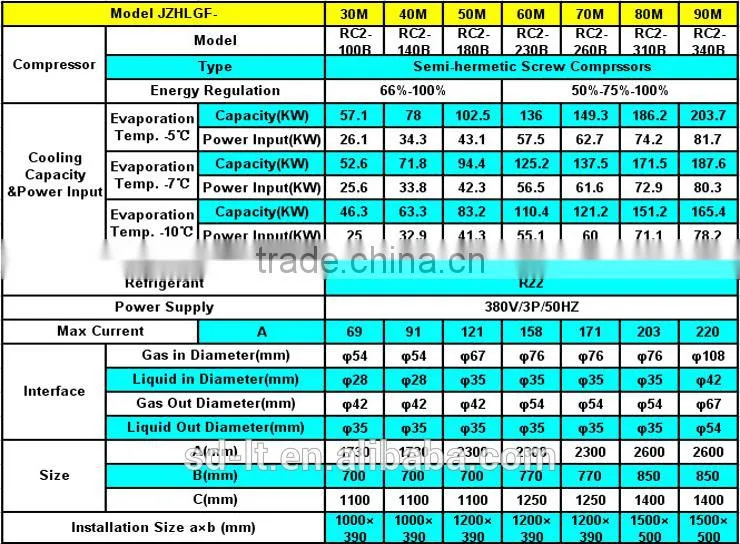

Technical Data of Air Cooled Compressor Racks

Water Cooled Compressor Racks; R22 Units
A. Temperature:-5℃~5℃(Middle and High Temperature Type)

Design Working Condition: Evaporation Temperature -7; Cooling Water Temperature In/Out 30℃/35℃.

a. Water Cooled Single Compressor Racks Models: JZHLGS-30M---JZHLGS-90M(30HP-90HP)

b. Water Cooled 2 Compressors Racks Models: JZHLGS2-60M---JZHLGS2-140M(60HP-140HP)

c. Water Cooled 3 Compressors Racks Models: JZHLGS3-90M---JZHLGS3-210M(90HP-210HP)

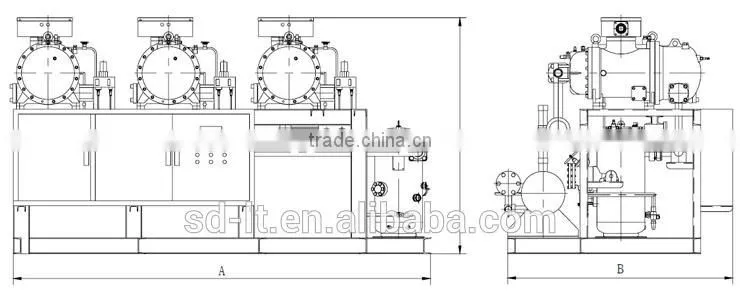

Overall Size of Air Cooled Compressor Racks

Features of Air Cooled Compressor Racks
1.Used new type 5:6 asymmetric rotor semi-closed screw compressors, high efficiency, long life, low noise, etc.
2.Adopted the change of cooling load to multi-lever energy regulation, effectively reduce energy consumption.
3.Compressor coil temperature protection; exhaust temperature protection; low oil levels; Hydraulic differential protection; High&Low Pressure Portection

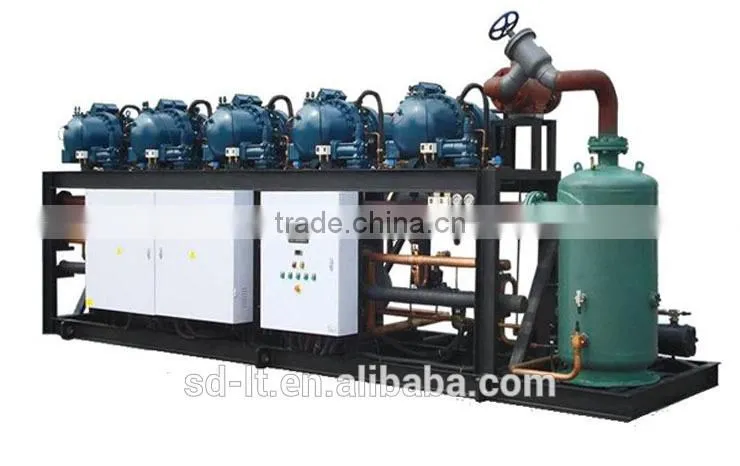

Finished Products of Air Cooled Compressor Racks
