Low Temperature Semi-hermetic Screw Compressor Racks Condensing Unit for Fresh Fruit,Food,Meat in Cold Room Etc

Low Temperature Semi-hermetic Screw Compressor Racks Condensing Unit for Fresh Fruit,Food,Meat in Cold Room Etc thumbnail-1
Low Temperature Semi-hermetic Screw Compressor Racks Condensing Unit for Fresh Fruit,Food,Meat in Cold Room Etc photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Condensing unit
Place of Origin:
Shandong, China
Brand Name:
LYTTE or OEM Service
Contact Supplier Request Quote Chat Now
Shandong Lvte Air Conditioning System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Condensing unit
Place of Origin Shandong, China
Brand Name LYTTE or OEM Service
Model Number JZBLG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

-High efficiency,low vibration&noise, good reliability;
-World famous brand with good reliability;
-High cooling capacity;













Product Description







Introduction:
With the rapid development of the refrigeration equipment market, a large of low temperature cold storage, ice making equipment,frozen cooling equipment become more and more,now piston compressors have been difficult to meet the needs of these devices. Our company design and R&D JZBLGS(F) Series which are a kind of low temperature senihermetic screw compressor compressor racks for condensing units can meet the demands of -40°C to -25°C cold room.
Features:
1. Bitzer semi-closed low-temperature screw compressors are selected with high efficiency,low vibration&noise, good reliability;
2. Refrigeration parts and control components are chosen world famous brand with good reliability;
3. Protection of compressor reversal, overheating, overload, exhaust temperature, low oil level, oil flow and system high and low pressure and other security to ensure the reliability of the run
4. Units running with economizer which improve the cooling capacity;
5. multi-level energy regulation, can be adapted to changes in cooling load, reduce energy consumption.
Model Specifications:
JZB B LG S 3 --- 180 J Y

JZB---LVTE Company Products Code, JZB:parallel Connection; JZ:Single Compressor
B---Compressor Brand, B:Bitzer

LG---Compressor Type: Semi-hermetic Screw Type

S---S: Water-Cooled; F:Air-Cooled
3---3:Compressor Quantity(None:1)

180---Compressor Power Inpout(HP)

J---Temperature:-40°C~ -25°C

Y---Refrigerant, Y-R404A, ----: R22
Water Cooled 2-Stage Compressor Racks,-40°C~ -25°C, R22 Units
1.Water Cooled Single Compressor Rack: JZBLGS-50J to JZBLGS-160J(50HP-160HP)
2.Water Cooled 2 Compressors Racks: JZBBLGS2-100J to JZBBLGS2-320J(100HP-320HP)
3.Water Cooled 3 Compressors Racks: JZBBLGS3-150J to JZBBLGS3-375J(150HP-375HP)
4.Water Cooled 4 Compressors Racks: JZBBLGS4-200J to JZBBLGS4-300J(200HP-300HP)
Air Cooled 2-Stage Compressor Racks,-40°C~ -25°C, R22 Units
1.Air Cooled Single Compressor Rack: JZBLGS-50J to JZBLGS-160J(50HP-160HP)
2.Air Cooled 2 Compressors Racks: JZBBLGS2-100J to JZBBLGS2-320J(100HP-320HP)
3.Air Cooled 3 Compressors Racks: JZBBLGS3-150J to JZBBLGS3-375J(150HP-375HP)
4.Air Cooled 4 Compressors Racks: JZBBLGS4-200J to JZBBLGS4-300J(200HP-300HP)
Main Parts Instructions
Main Parts: Low Temperature Semi-hermetic Low Temperature Bitzer Compressor  Oil Separator  Oil Cooler  Oil Components   Condenser (only for water-cooled)   Liquid Storage Tank   Tube Filter   Liquid Sight Gauge  Economizer Components   Suction Filter   Pressure Protector   Pressure Gauge Controlling Box(PLC+Touch Screen)

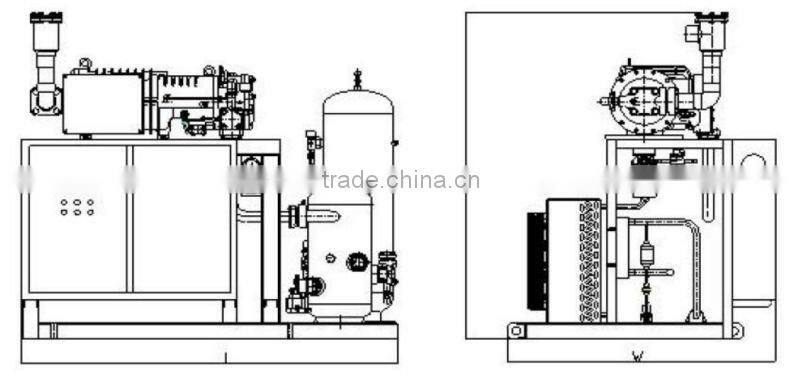

Water Cooled 2-Stage Single Compressor Racks Overall Sizes

Low Temperature Semi-hermetic Screw Compressor Racks Condensing Unit for Fresh Fruit,Food,Meat in Cold Room etc

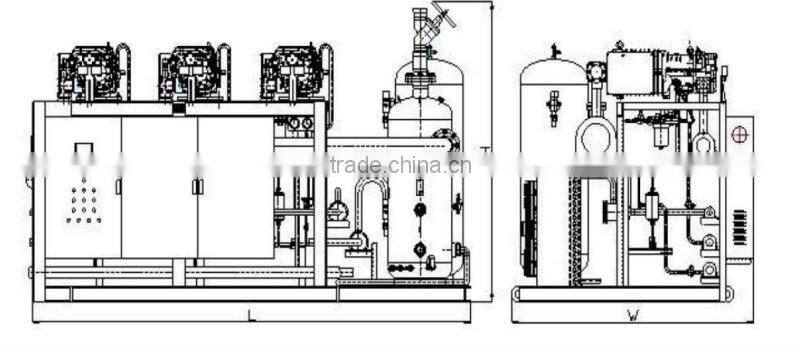

Water Cooled 2-Stage Paralleled Compressor Racks Overall Sizes

Low Temperature Semi-hermetic Screw Compressor Racks Condensing Unit for Fresh Fruit,Food,Meat in Cold Room etc

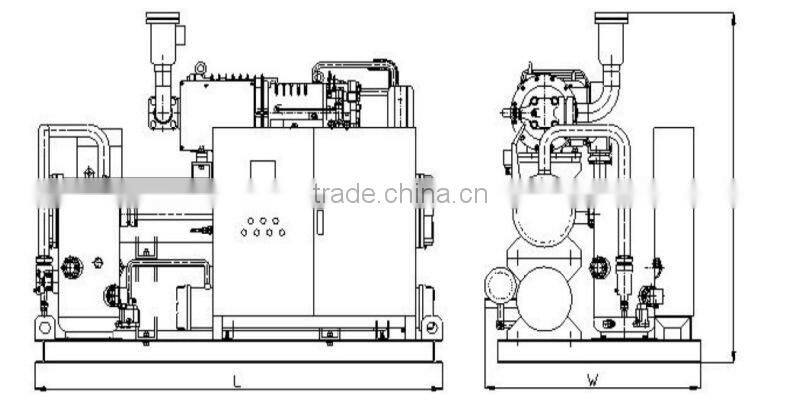

Water Cooled 2-Stage Single Compressor Racks Overall Sizes

Low Temperature Semi-hermetic Screw Compressor Racks Condensing Unit for Fresh Fruit,Food,Meat in Cold Room etc

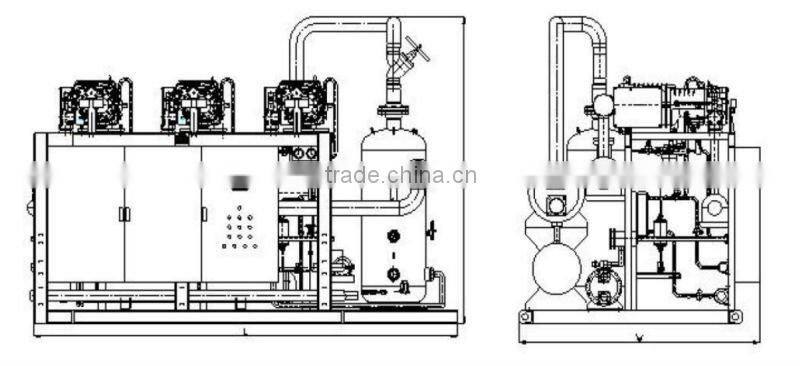

Water Cooled 2-Stage Paralleled Compressor Racks Overall Sizes

Low Temperature Semi-hermetic Screw Compressor Racks Condensing Unit for Fresh Fruit,Food,Meat in Cold Room etc
