Water Cooled Compressor Racks Condensing UnitWith Hanbell Screw Compressor
Moddle, Low Temperature
For different Cooling,CE

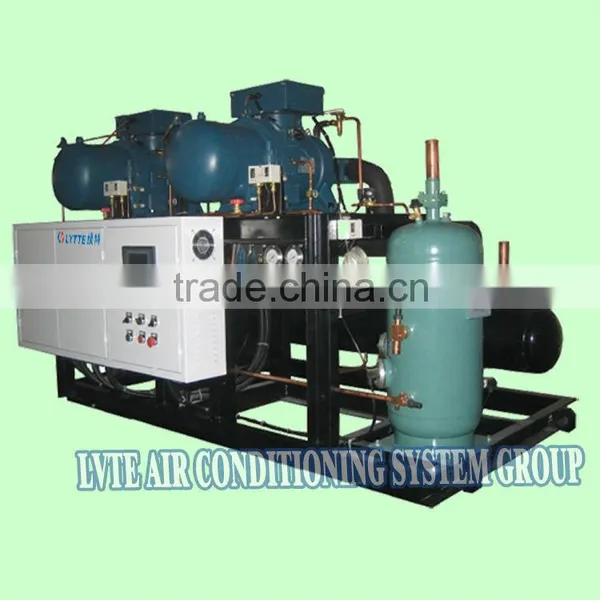

Water Cooled Compressor Racks Condensing Unit (JZHLGS Series with Hanbell Screw Compressor)
Products Description
With the rapid development of the refrigeration equipment market, large preservation storages, low-temperature freezing storage, ice making equipment are more and more used. JZHLG series products feature by their structures of multi-Hanbell compressors paralleled together to form one integrated systems. This products are applicable to large size cold rooms, ice making, chilled water making etc with temperature requirement ranging -5°C~5°C and -20°C~-15°C. The products are equipped with muti protection devices for wrong direction, overheating, overloading, overhigh discharging temperature, overlower oil level, oil flow, and high and low pressure etc. The refrigeration system has multi-phase cap regulation system to save energy significantly.
Features
Used new type 5:6 asymmetric rotor semi-closed screw compressors, high efficiency, long life, low noise, etc.
Adopted the change of cooling load to multi-lever energy regulation, effectively reduce energy consumption.
Compressor coil temperature protection; exhaust temperature protection; low oil levels; Hydraulic differential protection; High&Low Pressure Protection.
Models Specifications
JZH LG F 2 --100 M F Y
JZH-LVTE Company Products Code
LG-Compressor Type Code: LG—Semi-closed screw comprssors
F-Cooling Way: F—Air-Cooled; S—Water-Cooled
2-Compressor Quantity:Others—Signle
100-Compressor power input(HP)
M-Temperature:M—Temperature:-5°C~5°C;L—Temperature:-20°C~-15°C
F-Compressor Brand:F-Fusheng;Others—Hanbell
Y-Refrigerant:Y—R404A;A—R410A;C—R407C;Others—R22
Model Details:
Water Cooled Compressor Racks; R22 Units
A. Temperature:-5°C~5°C(Middle and High Temperature Type)
a. Water Cooled Single Compressor Racks Models: JZHLGS-30M---JZHLGS-150M(30HP-150HP)
b. Water Cooled 2 Compressors Racks Models: JZHLGS2-60M---JZHLGS2-220M(60HP-220HP)
c. Water Cooled 3 Compressors Racks Models: JZHLGS3-90M---JZHLGS3-210M(90HP-210HP)
B. Temperature: -20°C~-15°C (Middle and Low Temperature Type)
a. Water Cooled Single Compressor Racks Models: JZHLGS-30L---JZHLGS-150L(30HP-150HP)
b. Water Cooled 2 Compressors Racks Models: JZHLGS2-60L---JZHLGS2-250L(60HP-250HP)
c. Water Cooled 3 Compressors Racks Models: JZHLGS3-90L---JZHLGS3-300L(90HP-300HP)
Main Parts Instructions
JZHLGS××M Single Compressor Racks Series: -5°C~5°C (Hanbell Screw Compressor)
Main Parts:Screw Compressor /Water Cooled Condenser( Only the Water Cooled Units) /Liquid Storage Device (Only the Air Cooled Units) /Filter Barrel /Sight Gauge /Liquid Spraying System / Liquid tube Ball Valve/Hydraulic Differential Protection /High&Low Pressure Portector /Voltage Gauge /High Pressure Controller(For Cooling Tower or Condensing Fan) /Low Pressure Sensor /Control box(PLC+Touch Screen)
JZHLGS××L Single Compressor Racks Series:-20°C~-15°C (Hanbell Screw Compressor)
Main Parts:Screw Compressor /Second Oil Separator /Ball Valve(Oil Separator Outlet) /Oil Return Sight Gauge/Water Cooled Condenser( Only the Water Cooled Units) /Liquid Storage Device (Only the Air Cooled Units)/Filter Barrel /Liquid Sight Gauge /Liquid Spraying System /Economizer System /Hydraulic Differential Protection/High&Low Pressure Portector /Voltage Gauge /High Pressure Controller(For Cooling Tower or Condensing Fan)/Low Pressure Sensor /Control box(PLC+Touch Screen)
JZHLGS××M Multi Compressors Racks Units Series: -5°C~5°C (Hanbell Screw Compressor)
Main Parts: Screw Compressor /Oil Separator /Outlet Valve(For Oil Separator) /Oil Return System Components/Water Cooled Condenser( Only the Water Cooled Units) /Liquid Storage Device /Filter Barrel /Liquid Sight Gauge/Liquid Spraying System /Suction Filter /High&Low Pressure Portector /Voltage Gauge /High Pressure Controller(For Cooling Tower or Condensing Fan) /Low Pressure Sensor /Control box(PLC+touch screen)
JZHLGS××L Multi Compressors Racks Units Series: -20°C~-15°C (Hanbell Screw Compressor)
Main Parts:Screw Compressor /Oil Separator /Outlet Valve(For Oil Separator) /Oil Return System Components/Oil Cooler(Only for Air Cooled Units) /Water Cooled Condenser( Only the Water Cooled Units) /Liquid Storage Device/Filter Barrel /Liquid Sight Gauge /Liquid spraying system /Suction Filter /Economizer System /High&Low Pressure Protector /Voltage Gauge /High Pressure Controller(Condensing Fan) /Low Pressure Sensor/Control box(PLC+touch screen)
Water Cooled Compressor Racks; R22 Units
Water Cooled Single Compressor Middle and High Temperature Units:
Water Cooled Single Compressor Middle and Low Temperature Units:

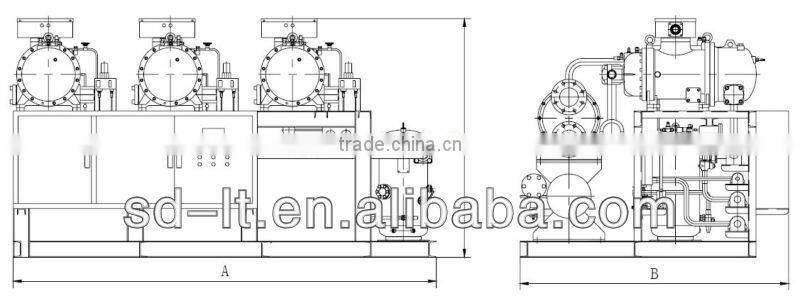

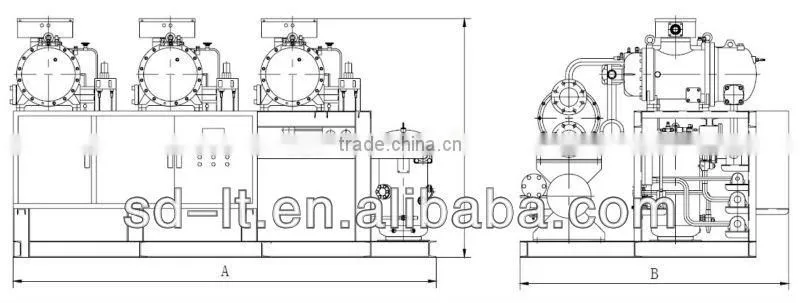

Water Cooled Multi-compressor Racks Units:
A. Temperature:-5°C~5°C(Middle and High Temperature Type)

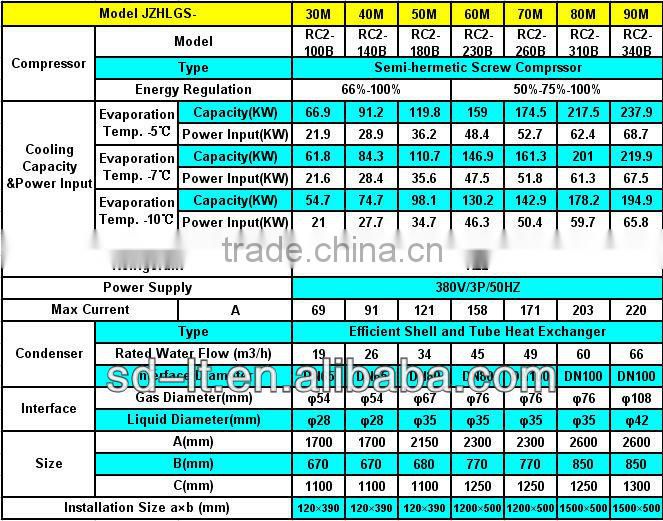

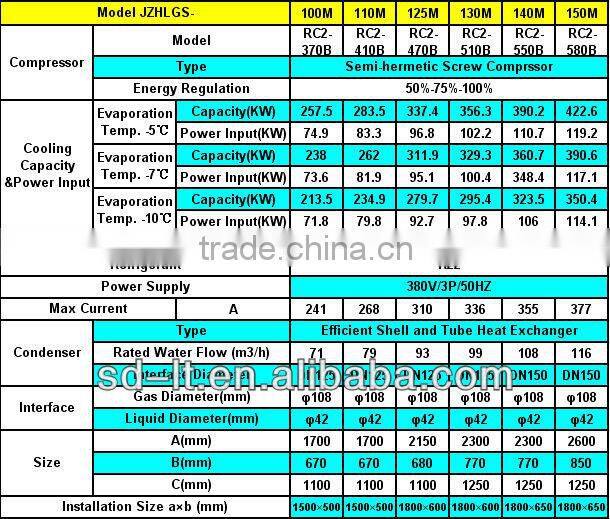

a. Water Cooled Single Compressor Racks Models: JZHLGS-30M---JZHLGS-150M(30HP-150HP)
Design Working Condition: Evaporation Temperature -7; Cooling Water Temperature In/Out 30°C/35°C.
Water Cooled Compressor Racks; R22 Units
A. Temperature:-5°C~5°C(Middle and High Temperature Type)

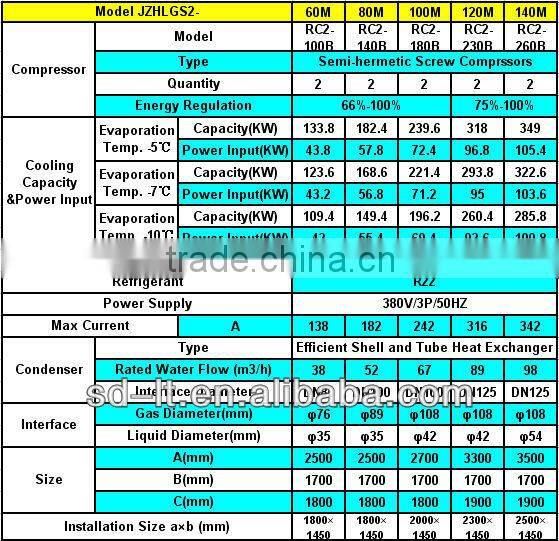

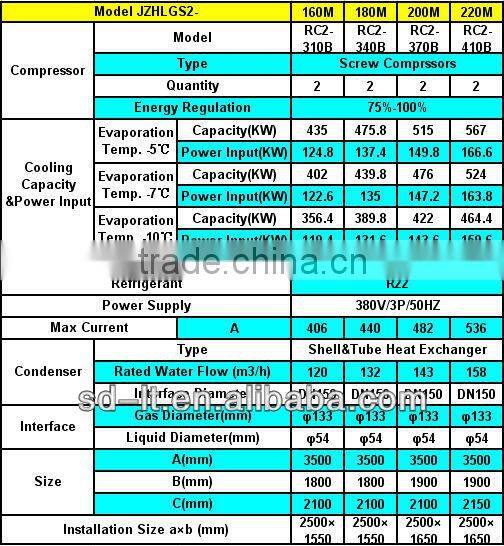

b. Water Cooled 2 Compressors Racks Models: JZHLGS2-60M---JZHLGS2-220M(60HP-220HP)
Design Working Condition: Evaporation Temperature -7; Cooling Water Temperature In/Out 30°C/35°C.
Water Cooled Compressor Racks; R22 Units
A. Temperature:-5°C~5°C(Middle and High Temperature Type)

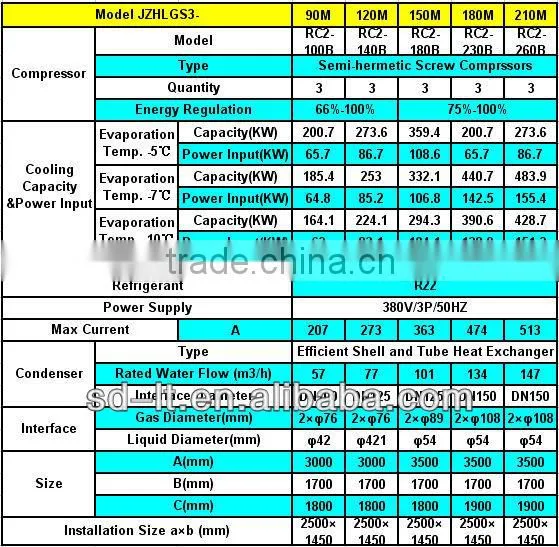

c. Water Cooled 3 Compressors Racks Models: JZHLGS3-90M---JZHLGS3-210M(90HP-210HP)
Design Working Condition: Evaporation Temperature -7; Cooling Water Temperature In/Out 30°C/35°C.
Water Cooled Compressor Racks; R22 Units
B. Temperature:-20°C~-15°C(Middle and Low Temperature Type)

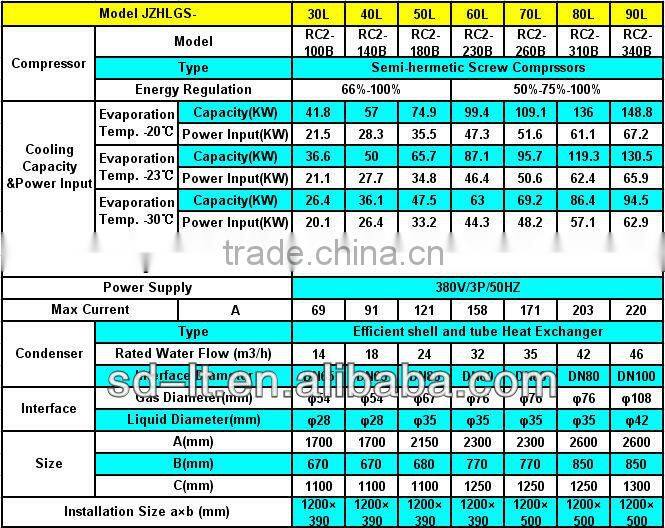

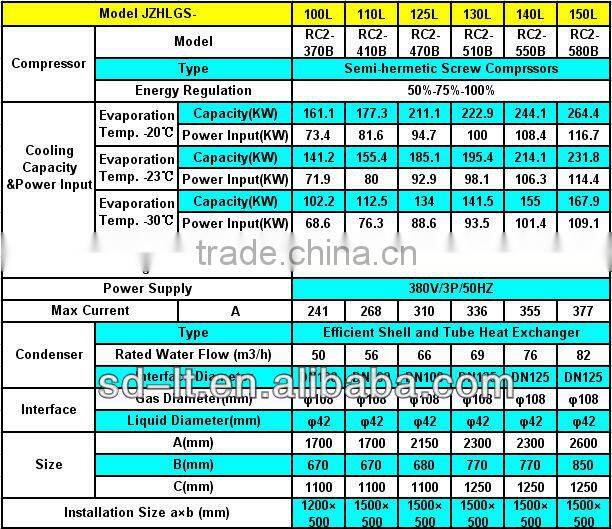

a. Water Cooled Single Compressor Racks Models: JZHLGS-30L---JZHLGS-150L(30HP-150HP)
Design Working Condition: Evaporation Temperature -23°C; Cooling Water Temperature In/Out 30°C/35°C.
Operating with Economizer.
Water Cooled Compressor Racks; R22 Units
B. Temperature:-20°C~-15°C(Middle and Low Temperature Type)
b.Water Cooled 2 Compressors Racks Models: JZHLGS2-60L---JZHLGS2-250L(60HP-140HP)
Design Working Condition: Evaporation Temperature -23°C; Cooling Water Temperature In/Out 30°C/35°C.
Operating with Economizer.
Water Cooled Compressor Racks; R22 Units
B. Temperature:-20°C~-15°C(Middle and Low Temperature Type)
c. Water Cooled 3 Compressors Racks Models: JZHLGS3-90L---JZHLGS3-300L(90HP-300HP)
Design Working Condition: Evaporation Temperature -23°C; Cooling Water Temperature In/Out 30°C/35°C.
Operating with Economizer.
