Specifications
pletely automatic control2. easy expanding capacity from 3ton to 50ton
3.easy operation and install
4.CE, CR
Quality Box Type Air Cooled Water Chiller, Industrial Chillers
Two Models:
1. Air Cooled Box Type Water Chillers(8.3KW-120W)
Colling Condition: Chilled water in/out 12/7°C; cooling water in/out 30/35°C;
Suitable chilled water temperature:9-25°C;
MODEL |
03AS |
05AS |
08AS |
10AS |
12AS |
15AS |
20AD |
25AD |
30AD |
40AD |
|
|
Cooling Capacity |
KW |
8.3 |
13.7 |
22.1 |
29.5 |
34 |
44.1 |
59 |
68 |
88.2 |
120 |
103kcal/hr |
7.1 |
11.8 |
19 |
25.4 |
29.2 |
37.9 |
50.7 |
58.5 |
75.9 |
103.2 |
|
2.Air Cooled Low Temperature(-5C) Box Type Water Chillers
Designed Condition: Chilled Glycol in/out -1/-5°C; ambient 35°C;
This series units used in low temperature conditions, 25% ethylene glycol to be used as a refrigerant;
MODEL |
03AS |
05AS |
08AS |
10AS |
12AS |
15AS |
20AD |
25AD |
30AD |
40AD |
|
Cooling |
KW |
4.7 |
7.5 |
13.7 |
16 |
18 |
22.7 |
32 |
36 |
45.4 |
61.6 |
103kcal/hr |
4 |
6.5 |
11.8 |
13.8 |
15.5 |
19.5 |
27.5 |
31 |
39 |
53 |
|

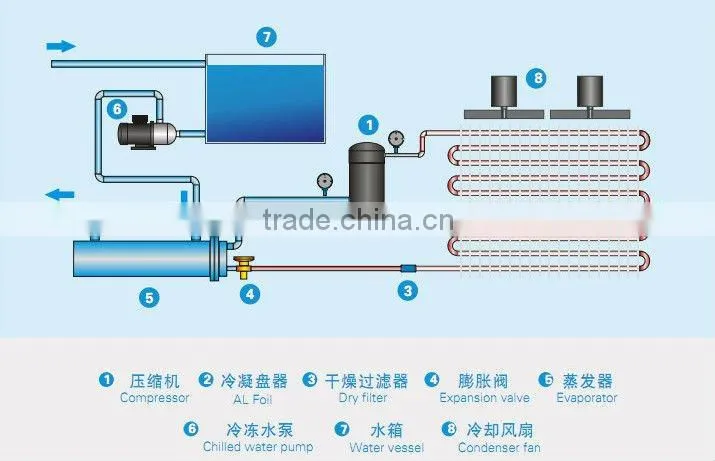

The system Diagram

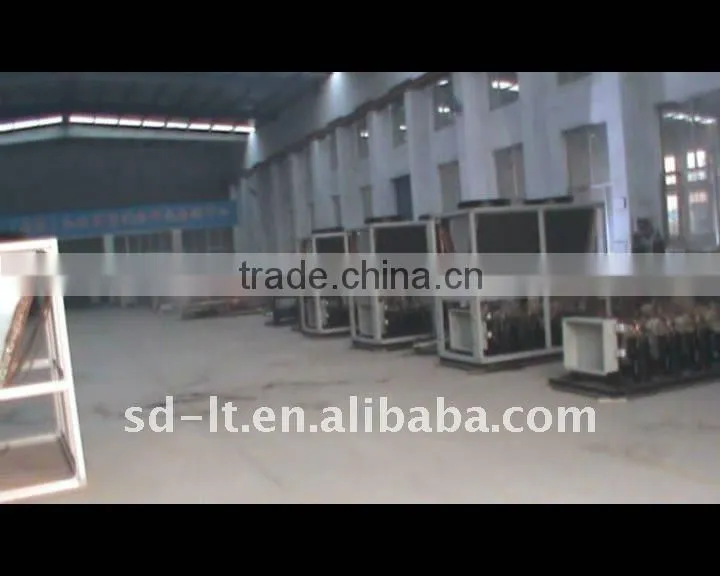

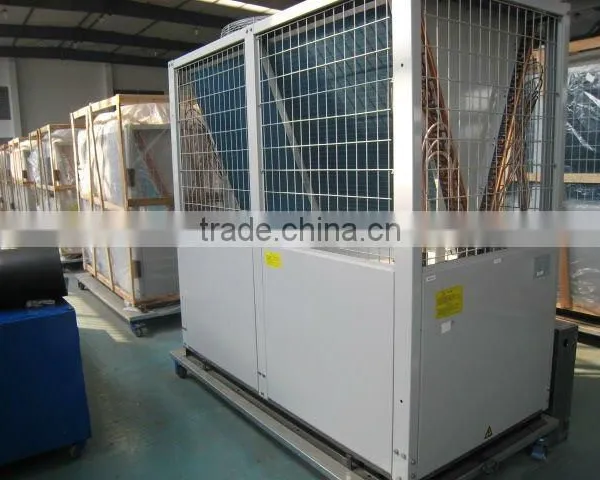

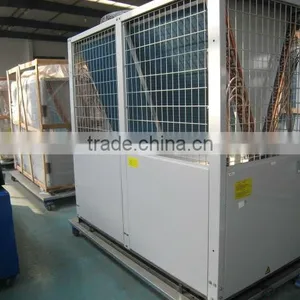

Photoes of Air Cooled Water Chillers
