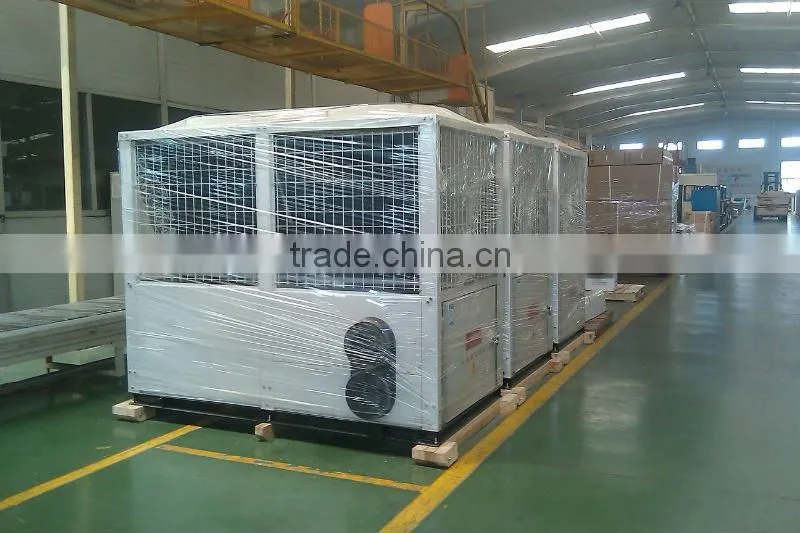

LTWF Series Box Type Scroll Air Cooled Water Chiller
US$ 200 - 20,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
LYTTE or OEM Service
Model Number:
LTWF-Air Cooled Water Chiller
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao seaport china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LTWF Series Box Type Scroll Air Cooled Water ChillerUS$ 500 - 20,000MOQ: 1 Unit -
LTLF Series Air Cooled Screw Compressor Water Chiller and Heat PumpNegotiableMOQ: 1 Set
-
Box Type(Scroll) Air Cooled Water Chiller, Air to Water Chiller,Water ChillerNegotiableMOQ: 1 Unit
-
Screw Type Air Cooled ChillerNegotiableMOQ: 1 Unit
-
Screw Type Air Cooled Water ChillerNegotiableMOQ: 1 Unit
Place of Origin
Shandong, China
Brand Name
LYTTE or OEM Service
Model Number
LTWF-Air Cooled Water Chiller
Type
Other, Air Cooled Water chiller, Modular design air cooled water chiller
Specifications
Air cooled water chillerair to water chiller, water chiller
large cooling range
modular design CE certificate
large ability
LTWF Series Box Type Scroll Air Cooled Water Chiller
Air to water chiller, air cooled chiller, air source heat pump and chiller
| MODEL | 03AS | 05AS | 08AS | 10AS | 12AS | 15AS | 20AD | 25AD | 30AD | 40AD | |
|
Cooling Capacity |
KW | 8.3 | 13.7 | 22.1 | 29.5 | 34 | 44.1 | 59 | 68 | 88.2 | 120 |
| 103kcal/hr | 7.1 | 11.8 | 19 | 25.4 | 29.2 | 37.9 | 50.7 | 58.5 | 75.9 | 103.2 | |
| Power(kW) | 3.1 | 5 | 7.4 | 9.7 | 11.9 | 15.3 | 19.4 | 23.7 | 30.6 | 40.5 | |
| Current(A) | 5.7 | 9.7 | 14.3 | 18.2 | 22.1 | 28.8 | 36.3 | 44.1 | 57.6 | 64.2 | |
| Compressor | Quty(PCS) | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Power(kW) | 2.55 | 3.96 | 6.11 | 8.06 | 9.9 | 12.39 | 16.1 | 19.8 | 24.8 | 34.1 | |
| Current(A) | 4.39 | 7.69 | 11.41 | 14.86 | 18.25 | 22.7 | 29.7 | 36.5 | 45.4 | 49.6 | |
| Refrigerant | Type | R22 | |||||||||
| Control | Thermal expension valve | ||||||||||
| Fan | Power(KW) | 0.2 | 0.45 | 0.5 | 0.9 | 1.2 | 1.4 | 1.7 | 2.2 | 3.12 | 4.2 |
| Current(A) | 0.6 | 0.9 | 1.4 | 1.8 | 2.3 | 2.9 | 5.4 | 7.6 | 9.6 | 10 | |
| Pump | Type | Centrifugal pump | |||||||||
| Power(KW) | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | |
| Current(A) | 0.75 | 1.1 | 1.5 | 1.5 | 1.5 | 3.2 | 3.2 | 3.2 | 4.6 | 4.6 | |
| Pressure Head | 15 | 20 | 22 | 20 | 17 | 25 | 24 | 18 | 22 | 22 | |
| Condenser | Type | Copper tupe and al fin | |||||||||
| Evaporator | water pipe connection | DN25 | DN40 | DN50 | DN65 | ||||||
| Water flow(L/min) | 23.7 | 39.3 | 63.4 | 84.6 | 97.5 | 126.4 | 169.1 | 194.9 | 252.8 | 344 | |
| Water Tank | Volume(L) | 65 | 75 | 140 | 140 | 150 | 250 | 325 | 325 | 370 | 400 |
| Fill,discharge,overflow port | DN20 | ||||||||||
| Overall Size | (Length)mm | 1060 | 1060 | 1520 | 1620 | 1720 | 1810 | 2020 | 2270 | 2470 | 2670 |
| (Width)mm | 740 | 740 | 850 | 850 | 850 | 930 | 1010 | 1150 | 1150 | 1240 | |
| (Hight)mm | 1340 | 1450 | 1550 | 1600 | 1600 | 1730 | 1930 | 1930 | 2080 | 2220 | |
| Weight | KG | 220 | 236 | 320 | 372 | 435 | 610 | 750 | 850 | 950 | 1050 |
| Remark:1.Colling Condition:Chilled water in/out 12/7°C; cooling water in/out 30/35°C; | |||||||||||
| 2.Suitable chilled water temperature:9-25°C; | |||||||||||
| 2.Power supply: 3P-380V-50HZ;with voltage allowance ±10%,voltage dif between the phase lines±2%; | |||||||||||
| 3.The data above is for R22, contact us if that for R134a,R407c and other refrigerant need; | |||||||||||
| 4.There may be Changes for improvement without notice, confirm always before your order. |
System Features:
1. Ready to work only after connected to chilled water system;
2. A stainless steel water vessel, a low noise pump have been fixed inside the chiller;
3. With energy saving fan of large air flow and low noise;
4. The chillers of capacity below 50KW is movable by wheels with them;
5. The chillers of capacity over 50KW are double refrigeration system design that is good to reduce the frequent start and stop for load change. The chillers can run even 1 system is in trouble.
6. Strict test and inspection has been made before the chillers are delivered.
