Specifications
Maize Germ Oil Extraction Machine1. Automation
2. easy installation and maintenance
3.low residual oil in meal
Brief Introduction of Oil Extraction Machine
Suitable material:peanut, soybean, rapeseed, sunflower seed and such oil material.
maize germ oil extraction machine processing process:
1.Cleaning
In order to obtain high effective cleaning, ensure good work condition and production stability, high efficient vibration
screen was used in the process to separate big and small impurity. soybean oil making machine
Suction type gravity stoner removing machine was applied to remove the shoulder stone and earth, and magnetic
separation equipment without power and exhaust system were used to remove iron.
Dust removing wind net is installed.soybean oil making machine
2. Flaking
Flaking means a certainty granularity of soy lamella was prepared for flaked of about 0.3 mm, the oil of raw material
can be extracted in the shortest time and maximum, and residual oil was less than 1%.
3. Cooking
This process is heating and cooking for rapeseed which is easy to separate of oil and can provide the oil quantity
from pre-press machine.It is easy to operate and have long life. soybean oil making machine
4. Oil press machine
soybean oil extraction machinery's oil extraction is continuous screw press machine which is suitable
to the plant oil materials which has high oil content.
The instruction of the cake is loose and easy to make the solvent permeate ,the oil content of cake and
moisture used for solvent extraction. soybean oil making machine

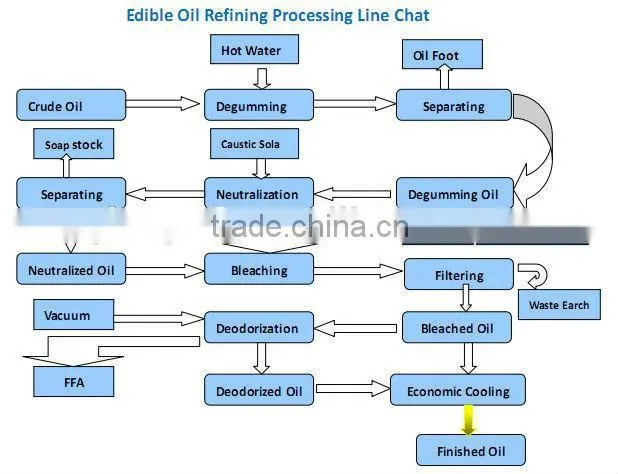

5. Crude oil refining
Oil refining is according to the different usage and requirements, utilizing the physical methods and chemical
processes to get rid of the harmful impurities and needless substance in the crude oil, getting standard oil.
Technicals of maize germ oil extraction machine:
Moisture of extraction material |
5-8% |
temperature of extraction material |
50-55°C |
oil content of extraction material |
50-55°C |
oil content of extraction material |
14-18% |
thickness of extraction cake |
less than 13mm |
powder porosity of extraction material |
less than 15% (30 mesh) |
steam |
more than 0.6Mpa |
solvent |
national standard No. 6 solvent oil |
electric power |
50HZ 3*380V±10% |
Electric lighting |
50HZ 220V ±10% |
Temperate of supplement water |
less than 25°C |
Hardness |
less than 10 |
volume of supplement water |
1-2m/t raw material |
temperature of recycle water |
less than 32°C |
Certification:
Customers visit:
