4 Port POE Switch

Specifications

4 port POE Switch
1)10/100M self-adapting Ethernet switch.
2)Offer max. 15.4W power per port.
3)Support Auto MDI/ MDIX.

4 port POE Switch

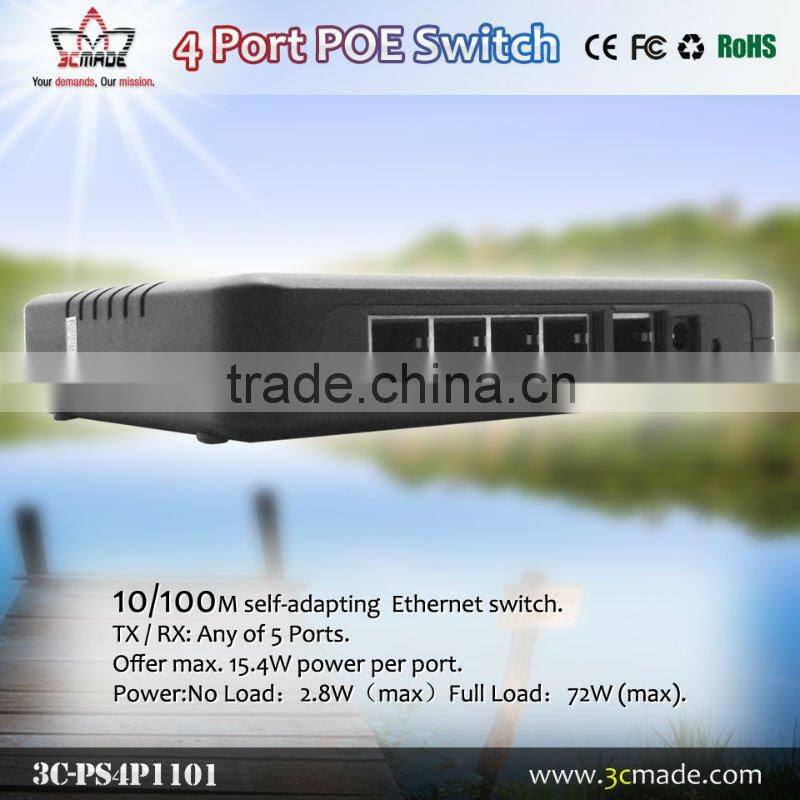

3C-PS4P1101 is a 5-port network powered 10/100M self-adapting Ethernet switch. It has a UPLINK port to connect to non-POE powered network switches or other equipments and it has four IEEE802.3af ports, in line with the PSE power supply network, each port can offer max. 15.4W power. All ports can support Auto MDI/ MDIX.



It offers a simple, economical, high performance solution, compatible with 100M networks. It is very easy to install, and to operate and provides flexibility to improve workgroup performances. All the advantages show that this switch is the best choice to improve the sever efficiency. The 4 POE ports simultaneously offer data transmit channels and supply power for routers, switches, wireless APs, network telephones, industrial network terminals, IP cameras and other equipments. It provides the power supply to these appliances without the necessity of separate power cables, improves the reliability and simplifies the installation of the Ethernet power system.



Technical Specification
Standards	IEEE802.3 10BASE-T for Ethernet IEEE802.3u 100BASE-TX for fast Ethernet IEEE802.3af POE
Protocol	CSMA/CD Ethernet
Data Transmit Rate	Ethernet:10Mbps(half-duplex)20Mbps(duplex) Fast Ethernet:100Mbps(half-duplex)200Mbps(duplex)
Topology Structure	Star topology
Physical Medium	10BASE-T: CAT3,4,5 UTP(max. length 100m ) EIA/TIA-568 100ohm STP(max. length 100m) 100BASE-TX: CAT 5 or up UTP(max. length 100m) EIA/TIA-568 100ohm STP(max length 100m)
The number of Port	5 Ports
TX / RX	5 Ports
LED Display	Power,UPLINK,Error,ACTIVE
Transfer Mode	Storage transmit
MAC Address	Auto Study,Auto Update
Package Filter Rate	10BASE-T:14880pps/port; 100BASE-TX:148800pps/port
Package Transmit Rate	10BASE-T:14880pps/port; 100BASE-TX:148800pps/port
Physical Environment

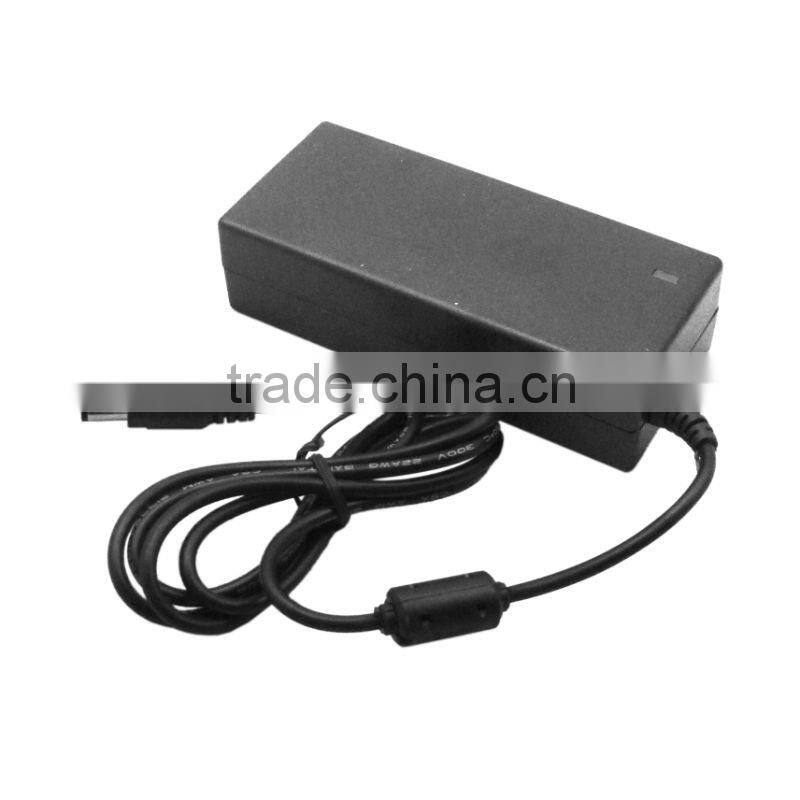

Input	AC Adapter(AC100-240V ~50-60HZ, DC48V/ 1.5A)
Power	No Load:2.8W(max) Full Load:72W (max)
Operating Temperature	-20~70°C
Storage Temperature	-40~70°C
Humidity	5%~95% unfrozen
Dimensions	154mm*112mm*31mm











...
