Poe Power Supply

Poe Power Supply thumbnail-1
Poe Power Supply photo-1
US$ 3 - 4.5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM/GainStrong
Model Number:
3C-PA24V1A
Contact Supplier Request Quote Chat Now
Shenzhen Gainstrong Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM/GainStrong
Model Number 3C-PA24V1A
Output Type Dual
Input Voltage Other, 100-240V, 90-260VAC @ 47-63Hz
Output Voltage 24V, 24VDC @ 1.0A
Output Frequency 50-60Hz
Output Current 1A

Specifications

poe power supply
1.Output 24V1A
2.earth grounding/ESD protection
3.remote reset capability

poe power supply

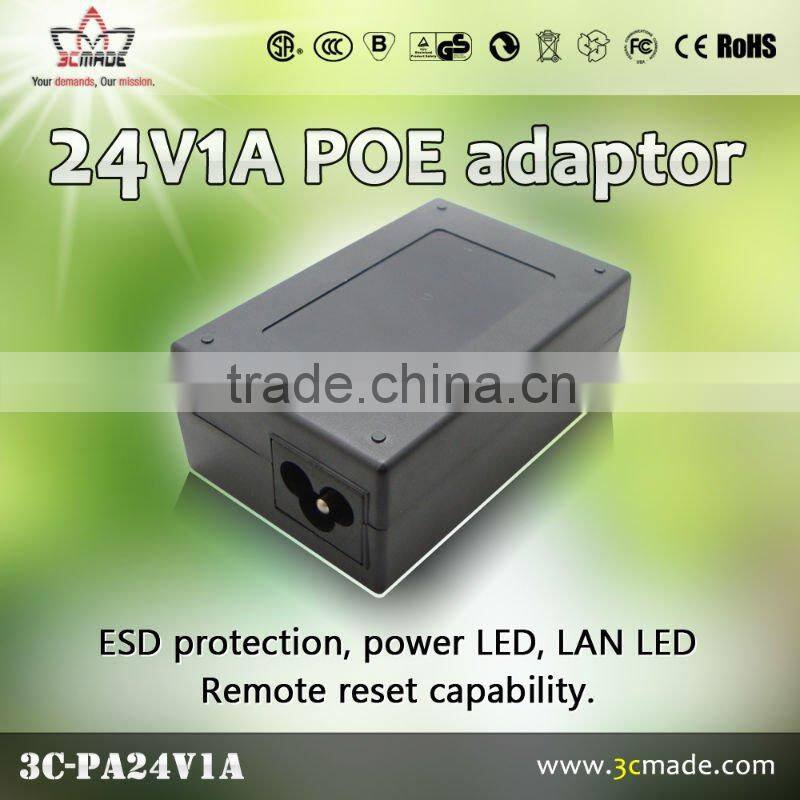

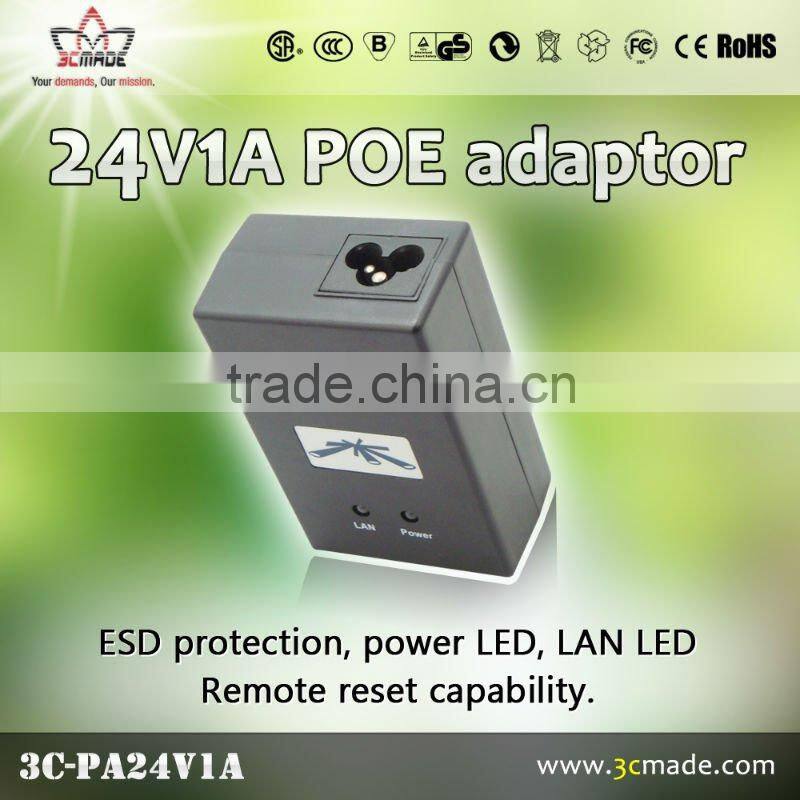

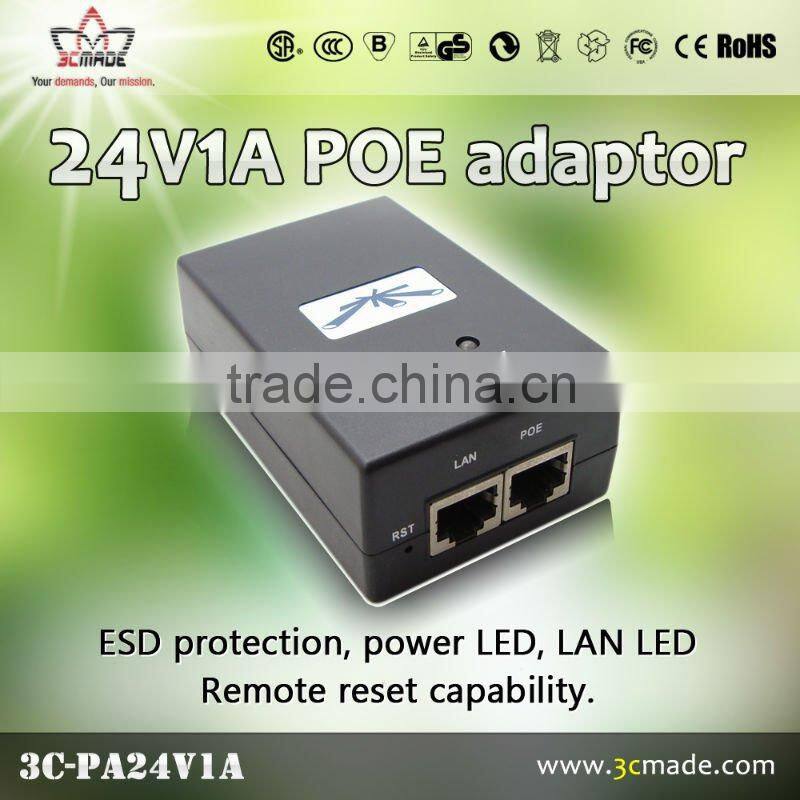

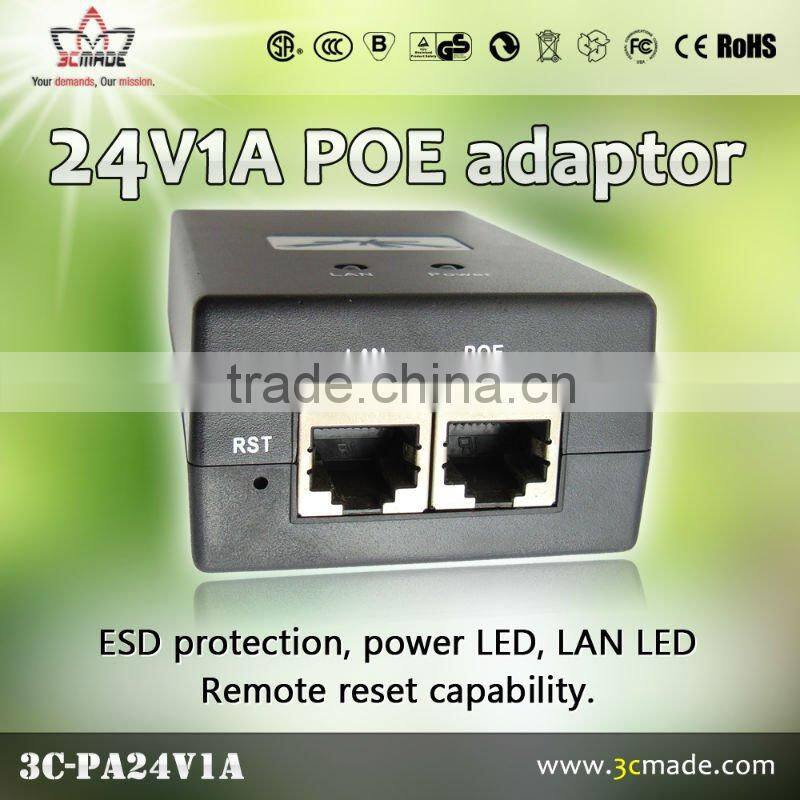

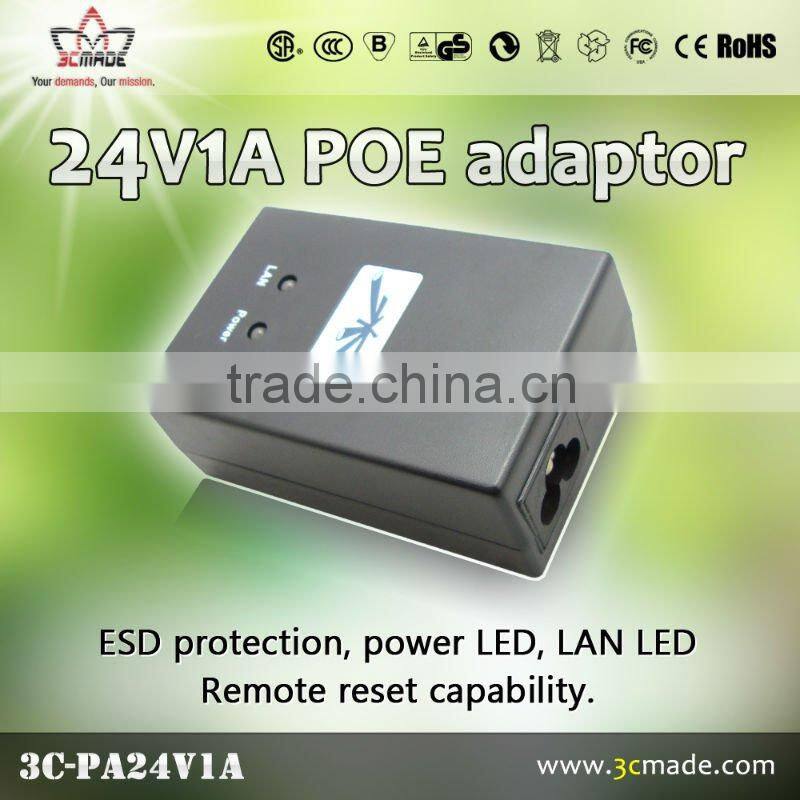

The POE-24 features earth grounding/ESD protection, power LED, LAN LED, and remote reset capability.


Technical Specification

Output Voltage 24VDC @1.0A
Input Voltage 90-260VAC @47-63Hz
Input Current 0.3A @120VAC, 0.2A @230VAC
Inrush Current <15A peak @120VAC, <30A peak
Efficiency 70+%
Output Ripple 1% Max
Switching Frequency 200kHz
Line Regulation +/- 0.5%
Load Regulation +/- 1%
Operating Temperature -10C to +60 deg C
Storage Temperature -20 to +85 deg C
Operating Humidity -10C to +60 deg C
Size (LXWXH) 85 x 55 x 33 (mm)
Weight 4 oz
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
80% Current Indicator Power LED will change color
Surge Protection Common Mode
Clamping Protection 11V Data, 77.5V Power
Max Surge Discharge 1200A (8/20uS) Power
Peak Pulse Current 36A (10/1000uS Data)
Shunt Capacitance <5pF data
Response Time <1nS
Compliance UL, EN55022 (CISPR22) class B, Meets CE
















...
