Soybean Oil Production Machine Line Pretreatment Line
US$ 300 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Soybean Oil
Type:
Other, Pretreatment
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or the nearest port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Style Soya Oil Production Line,Soybean Oil Production Line,Soya Bean Oil Extractor MachineUS$ 30,000 - 6,000,000MOQ: 1 Set -
Hydraulic Soybean Flaking MachineUS$ 1,200 - 1,800MOQ: 1 Set
-
50TPD Soybean Oil Refining Machinery Plant With CE/ISO9001US$ 250,000 - 1,200,000MOQ: 1 Set
-
Crude Soybean Oil Refining Plant/ Machine for Edible OilUS$ 2,000 - 30,000MOQ: 1 Set
-
Soybean Edible Oil Refinery Manufacturer With High EfficiencyUS$ 300 - 3,000,000MOQ: 1 Set
Condition
New
Usage
Soybean Oil
Type
Other, Pretreatment
Automatic Grade
Automatic
Place of Origin
Henan, China
Brand Name
Qi'e
Model Number
60-1000T/D
Certification
ISO, CE, BV, ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Soybean oil pretreatment/pre-pressed machinery1.Capacity:60-1000T/D
2.Main materials:rapeseed,soyabean,cotton seed,sesame,etc
Soybean oil production machine line pretreatment line
Soybean oil pretreatment machinery Description:

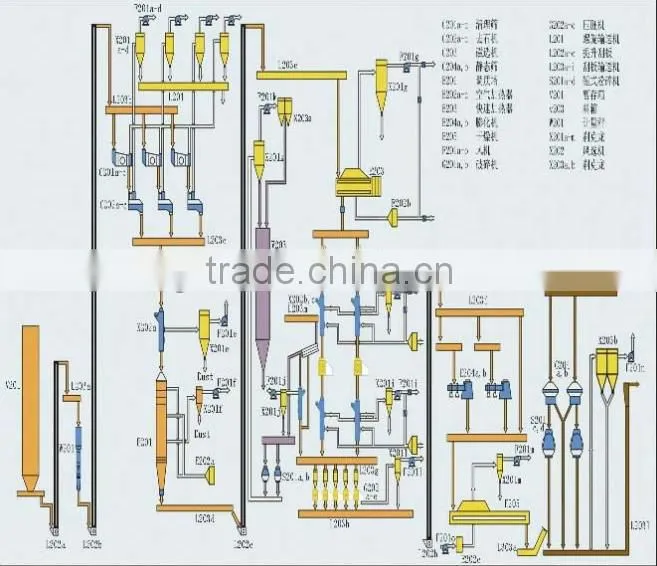

Soybean →Metering →Magnetic separation →Deironing →Cleaning →Stone removing →Gear roller crushing → Softening →Flaking →Extrusion →Cooling&drying →Extraction
Soybean oil pretreatment machinery Characteristics:
- Full continuous and mechanized operation, and with electrical interlocking control system.
- The equipment layout is in tower structure, and the material flow by relying on gravity to reduce reducing power consumption.
- In extrusion process, consider producing extrusion material in different proportions and raw germ extraction, and adjust it at any time according to product requirements.
- When producing soybean germ meal, the roller softening pot can better meet the flaking technical requirements.
- Take into consideration the environmental requirements in modern industry. The workshop is also equipped with the dedusting system with high performance, so as to meet the requirements of production and environmental protection.
- Select scraper conveyor as much as possible, which can effectively reduce raw material crushing, improve solvent permeation into the material layer, and increase the extraction efficiency.
- Our company adds soybean extrusion process after flaking process, to extrude the soybean germ, further destroy oil material cell, improve the productivity greatly and get the extruded meal that is well received by feed manufacturers.
Soybean oil pretreatment machinery process:
- Metering process:With special equipment, the stable measuring scale is used to regulate the flow and measure total production. Moreover, it can achieve accumulated measurement, transient measurement and cost accounting, with accurate measurement and high precision.

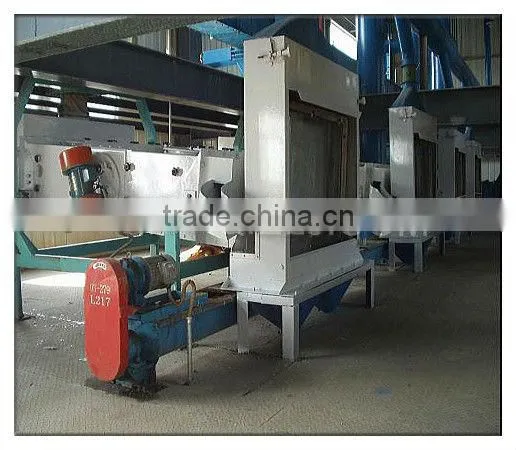

- Cleaning process:Use magnetic selector to remove iron impurity, vibration cleaning sieve to remove straw, and gravity stoner to remve stones, bricks and other impurities. The dedusting system uses single union cyclone and centrifugal fan to remove dust effectively, so as to ensure workshop hygiene and clear light impurities.
- Crushing process

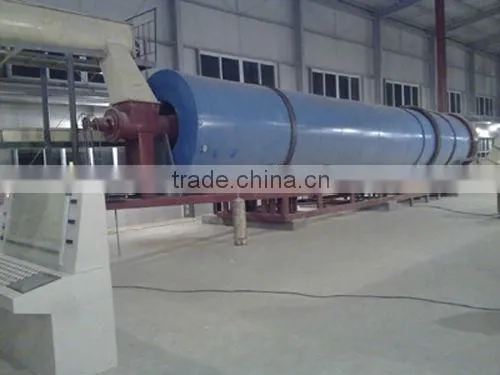

- Softening process:With YPHW series horizontal softening pot, material enters softening drum through feeding auger, and turns over with the rotating drum. The rotating drum is equipped with heating tube, and there is steam in the tube. When material turns over continuously with the rotating drum, soy is heated to 50-70C and is fully softened, which can improve soy plasticity, make germ flake thin and burly and improve extraction effect. In addition, the rotating drum has the inclination of high feed end and low discharge end. According to material softening conditions, regulate the rotating speed of drum to control the softening time of material in the rotating drum, so as to achieve the best softening effect.

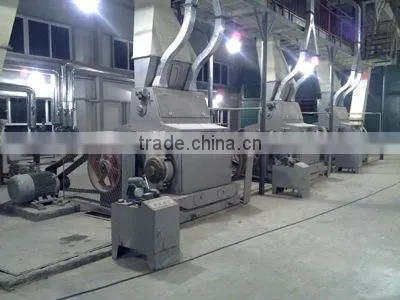

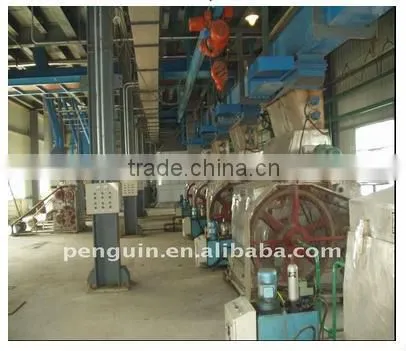

- Flaking process:Our hydraulic compact roller flaker can better damage the oil mateiral cell to ensure thin and uniform flake, with high toughness and small powder.
