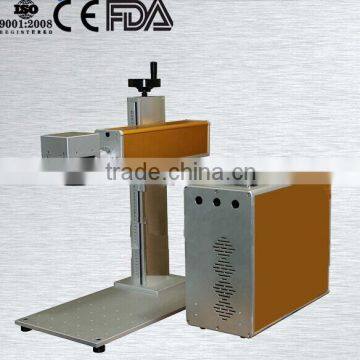

Top Grade Green Laser Marking Machine for ABS
Overview
With a shorter wavelength at 532nm and thinner beam, green laser results in a lower heat affected zone compared with infrared laser, the so-called "cold marking" laser process eliminates burning effect or part surface damage, ideal for sensitive components and plastics.

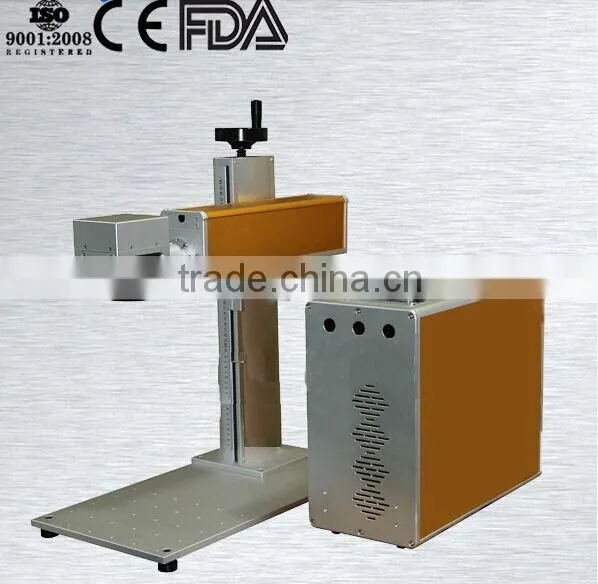

Yongmao offers industry green laser LMT4000 series, with optimized laser beam and Q-switched pulse characteristics, LMT4000 offers high output power, fast speed and high quality marks at a small footprint.
LMT4000 robust mechanical and optical design enables operation in an industrial environment where vibration, dust and shock are a concern.
Advantage:
High quality mark without edge charring and burning for sensitive plastics.
Compact and Modular software designed for minimized configuration and may incorporate with various file format.
Best green laser source offers high quality laser beam, long laser life time
Robust hardware design improves reliability, higher MTBF expected.
High-speed galvanometer guarantee high marking speed and high precision.
High electro-optical conversion rate, air cooling for energy conservation and greener world.
Specification:
| Output Power: | 1.5W, 3W, 6W, 12W |
| Laser Wavelength: | 532nm |
| Work Pattern: | Q-Switched |
| Pulse Frequency: | 20KHz |
| Working Window: | 110*110mm by default |
| Minimal Marking Character Height: | 0.01mm |
| Maximal Marking Depth: | 0.50m, Depends on Working Material |
| Minimal Marking Width: | 0.01mm |
| Maximal Marking Speed: | 7,000mm/s |
| Beam Quality: | M2<1.3 |
| Positioning Accuracy: | +/-0.02mm |
| Expected Laser MTBF: | 20,000 Hours |
| Cooling: | Air Cooled |
| Working Tempratures: | 0 to 40 degree |
| Power Consumption: | <=500W |

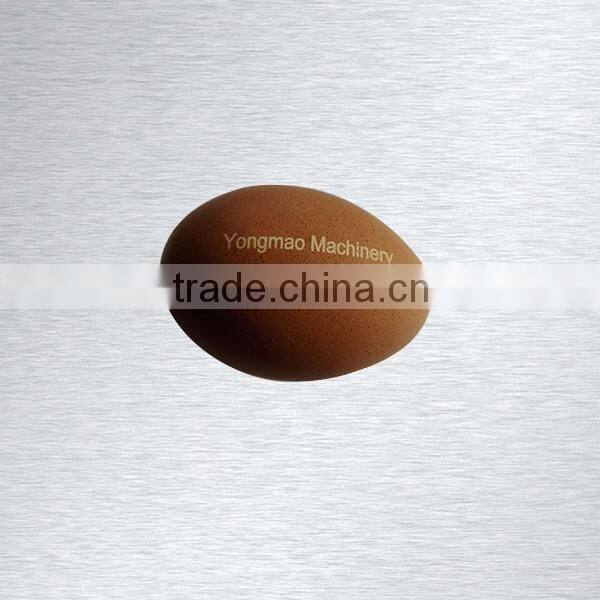

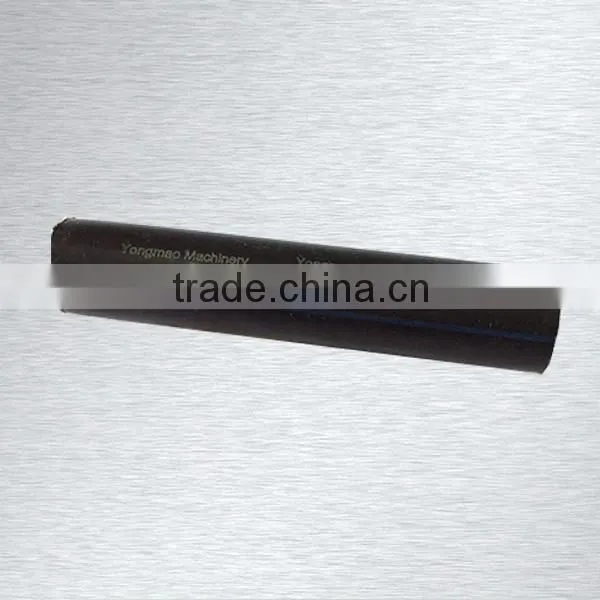

Marking Content:
Custom Logo Marking
Artwork Marking
Barcodes, UID codes marking
2D Matrix code marking
Engraving
Direct Part Marking (DPM)
Time & Date Marking
ID and Serial Numbers Marking
Laserable Materials and Applications:
Compare with fiber laser at 1064nm wavelength, the green laser at 532nm is good for tough to mark plastics for medical, electronic, solar and aerospace applications, the applications by fiber lasers, e.g. metal laser marking, coat removal as well as day & night marking on backlit panels could also be done by green laser, aside of this, green laser could also be used on micromachining applications such as wafer scribbling, thin-film scribbling, etc.
Worldwide Users:
Yongmao products have been widely used in the diverse industry segments such as Automotive, Motorcycle, General Engineering, Plastics, Wooden, Food & Pharmaceutical industries, customers ranging from giant companies to SME from all over the world, e.g. mainland China, ASEAN (Indonesia, Vietnam, Thailand and Malaysia), South Asia sub-continent (India, Pakistan and Bangladesh), Latin America (Brazil, Chile, Argentina and Venezuela), East Europe (Russia, Romania and Poland) and South Africa.
Post-sales Services:
One year warranty.
Lifecycle spare part supply.
Custom design fixtures.
Installation, training upon request.
Company Overview:
