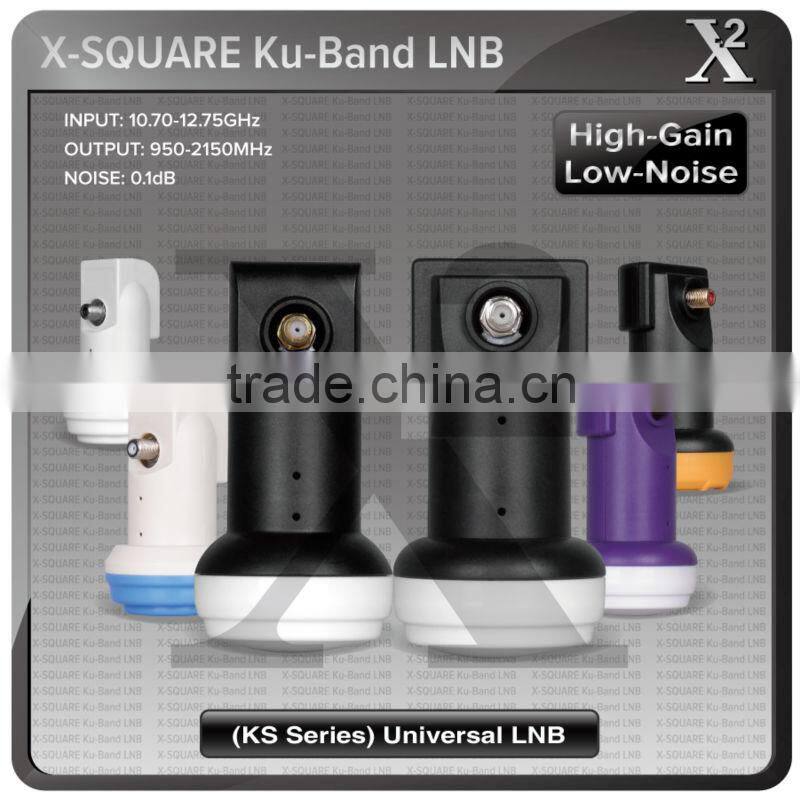

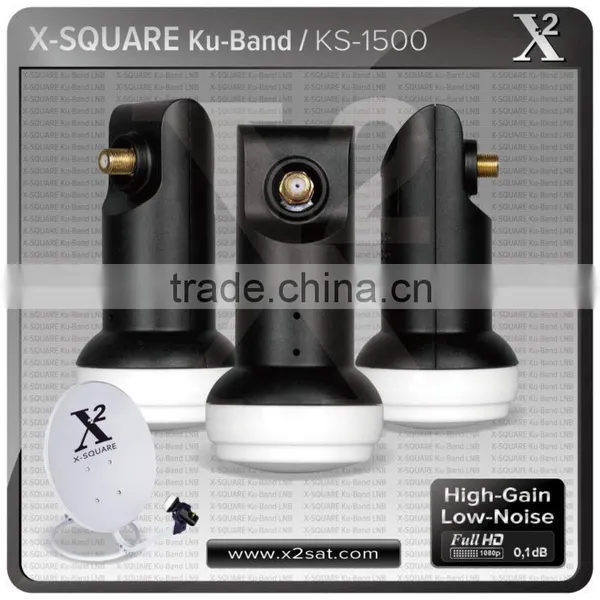

GERMAN 2015 HD Single LNB

Input Frequency Range

LOW Band:10.7~11.7GHz

High Band:11.7~12.75GHz

Output Frequency Range

Low Band: 950 - 2050MHz

High Band: 1100 - 2150MHz

Input VSWR

2.5:1

Output VSWR

2.5:1

L.O. Frequency

Low Band 9.75GHz

High Band 10.6GHz

L.O. Stability

±2MHz @ (-40c~70c)

L.O. Phase Noise

-70dBc/Hz (1KHz Offset)

-90dBc/Hz (10KHz Offset)

-110dBc/Hz (100KHz Offset)

Conversion Gain

60dB (TYP)

Gain Flatness

±0.5dB/6MHz; ±2.5dB/IN BAND

Noise Figure

±0.1dB (Typ)

Image Rejection

50dB(Typ)

Output Power

+5dB (Min) (at 1dB gain compression)

Cross Polarization Discrimination

23dB(Min)

DC SUPPLY VOLTAGE

11~14.5V (V),15.5~22V (H)

SUPPLY CURRENT

130mA (MAX)

LOW/HIGH BAND SWITCHING

Low Band: 0Hz

HIGH BAND: 22KHz±4KHz

Output Connector

75Ω "F" type female

RELATIVE HUMIDITY

0%~95%

Operating Temperature

-30 °C to +70 °C
