2015 new universal multi grade satellite lnb

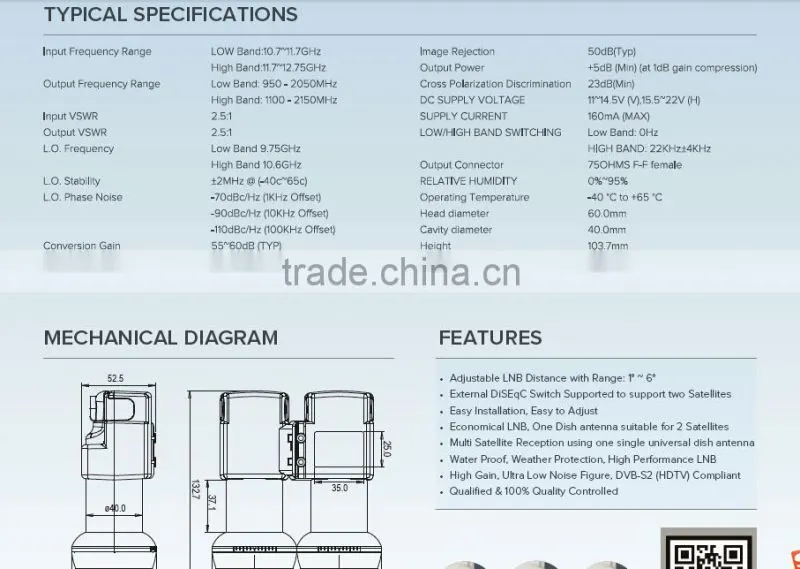

l Feature
LOW Band:10.7~11.7GHz | |
High Band:11.7~12.75GHz |
|
Output Frequency Range |
Low Band: 950 - 2050MHz |
High Band: 1100 - 2150MHz |
|
Input VSWR |
2.5:1 |
Output VSWR |
2.5:1 |
L.O. Frequency |
Low Band 9.75GHz |
High Band 10.6GHz |
|
L.O. Stability |
±2MHz @ (-40c~70c) |
L.O. Phase Noise |
-70dBc/Hz (1KHz Offset) |
-90dBc/Hz (10KHz Offset) |
|
-110dBc/Hz (100KHz Offset) |
|
Conversion Gain |
60dB (TYP) |
Gain Flatness |
±0.5dB/6MHz; ±2.5dB/IN BAND |
Noise Figure |
±0.1dB (Typ) |
Image Rejection |
50dB(Typ) |
Output Power |
+5dB (Min) (at 1dB gain compression) |
Cross Polarization Discrimination |
23dB(Min) |
DC SUPPLY VOLTAGE |
11~14.5V (V),15.5~22V (H) |
SUPPLY CURRENT |
130mA (MAX) |
LOW/HIGH BAND SWITCHING |
Low Band: 0Hz HIGH BAND: 22KHz±4KHz |
Output Connector |
75Ω "F" type female |
RELATIVE HUMIDITY |
0%~95% |
Operating Temperature |
-30 °C to +70 °C |
