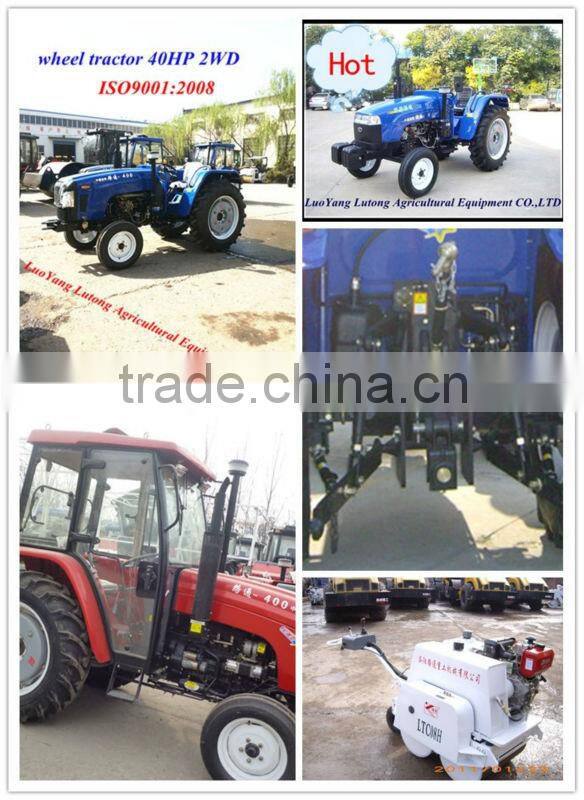

Wheeled Tractor With Performance Producted by Factory

Wheeled Tractor With Performance Producted by Factory thumbnail-1
Wheeled Tractor With Performance Producted by Factory photo-1
US$ 5,800 - 6,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Luoyang Lutong Heavy Industry Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 36.8 kw
Certificate Other
Brand Name LUYANGHONG
Model Number LHY500
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas

Specifications

LHY500/LHY504 50HP 4x2/4x4 farm tractor
1.ISO 9001:2008
2.OEM service

wheeled tractor with performance producted by factoryLHY500/LHY504 50HP 4x2/4x4 farm tractor

Technical parameters

Type

LYH500

        LYH504

Model

4*2 (double-wheel driving)

4*4 (4-wheel driving)

Dimension (mm)

Length (with front loading)

3513

3513

Width

1823

1750

Height (to vent)

2130

2130

Wheelbase (mm)

1880

1924

Front-wheel tread (mm)

1200~1500 (1300 in common use)

1250

Rear wheel tread (mm)

1200~1500 (1300 in common use)

The smallest ground gap (mm)

400

325

Agriculture ground gap (mm)

450

375

Turning radius

   (m)

apply the brake with single side

3.1

3.4

not apply the brake with single side

3.5

4.1

The whole tractor mass (kg)

structure mass

1665

1890

the smallest using mass

1840

2080

Loading mass

front loading

108

144

rear loading

360

360

Rated traction (KN)

9

12

Engine type

498BT

Marked power (KW)

36.8

Clutch

10 inch double action

Gear box

Shift combination style. Mesh cover shift

Speed range

2.4-31.9

Centre turn

Spire and taper sub-gear

Different speeder

Double planet wheels, close style

Different speed lock

Post and pin style

Final transmission

Planet gear style

Front driving bridge

 Full closed prick gear style (for types with 4- wheel driving )

Independent driving box

   Column gear with straight teeth (for types with 4-wheel driving )

Front wheel table specification

6.0-16

8.3-20

Rear wheel table specification

12.4-28

Redirector type

Mechanical or hydraulic turning

Arrester type

Arrester with double pieces of oil-bath tray (mechanical style)

Lifter type

Semi-separation

Control way to plough depth

Force, place control and floating control

Hanging device type

Three point hanging with postposition

Driving output axis turning speed (r/min)

540/760
